Tractor · 1988Unverified

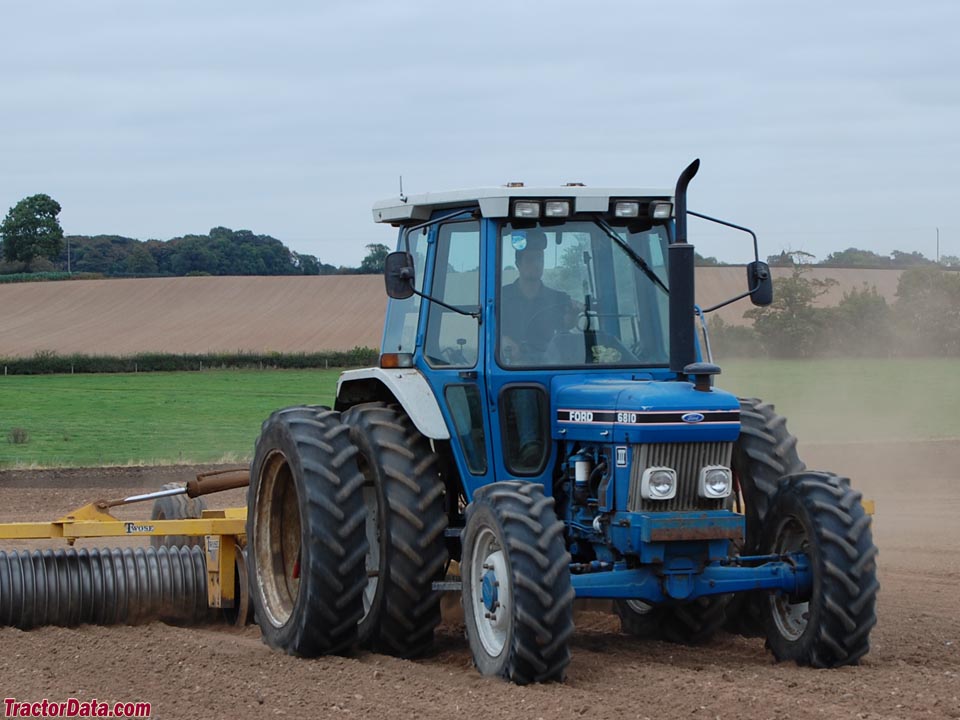

Ford 6810 Mark III

Name: Ford 6810 Mark III
Brand: Ford

Ford 6810 Mark III — 10 Mark III Series · 90 hp. Reference specifications; pending source verification.

The Ford 6810 Mark III is a tractor with a rated output of 90 hp, placing it in the middle of its class in terms of power. Produced from 1988 to 1991, it features a 4-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight is 7280 to 8760 pounds, and it is suited to farms operating around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

7280 to 8760 pounds

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

90 hp

Transmissions

16-speed

Production years

1988-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Four-post ROPS. Cab optional with air-conditioning.Reference

Engine

Ford 4.4L 4-cyl dieselReference

ROPS Fuel tank79.5 LReference

Cab Fuel tank106.0 LReference

Engine (net)67.1 kWReference

FordReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke112 x 112 mmReference

Power (net)67.1 kWReference

Compression16.3:1Reference

Rated RPM2070Reference

Torque358.0 NmReference

Torque RPM1400Reference

Transmission

16-speedReference

TransmissionDual PowerReference

Gears16 forward and 8 reverseReference

Clutch330mm discReference

Four synchronized gears in two ranges, plus reverse range, with two-speed Dual Power power shift. Optional creeper range.Reference

PTO & Hydraulics

PTO (claimed)61.9 kWReference

Typeopen center with closed-center valvesReference

Pressure172.4 barReference

Pump flow68.9 lpmReference

SCV flow54.9 lpmReference

Rear TypeIIReference

Rear lift (at ends)2664 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1900Reference

Engine RPM1000@2060Reference

Dimensions

2WD Wheelbase222 cmReference

4WD Wheelbase225 cmReference

Weight7280 to 8760 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4-34Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-34Reference

4WD Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference

2WD Length368 cmReference

4WD Length388 cmReference

2WD Ground clearance43 cmReference

4WD Ground clearance38 cmReference

2WD Front tread132 to 2260 cmReference

4WD Front tread152 to 223 cmReference

Rear tread142 to 203 cmReference

2WD ROPS3302 kgReference

2WD Cab3492 kgReference

4WD ROPS3592 kgReference

4WD Cab3973 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps80Reference

Battery volts12Reference

Battery AH128Reference

Ford 6810 Height

199 cmReference

Cab266 cmReference

2WD Exhaust279 cmReference

4WD Exhaust287 cmReference

Speeds

With 16.9-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
