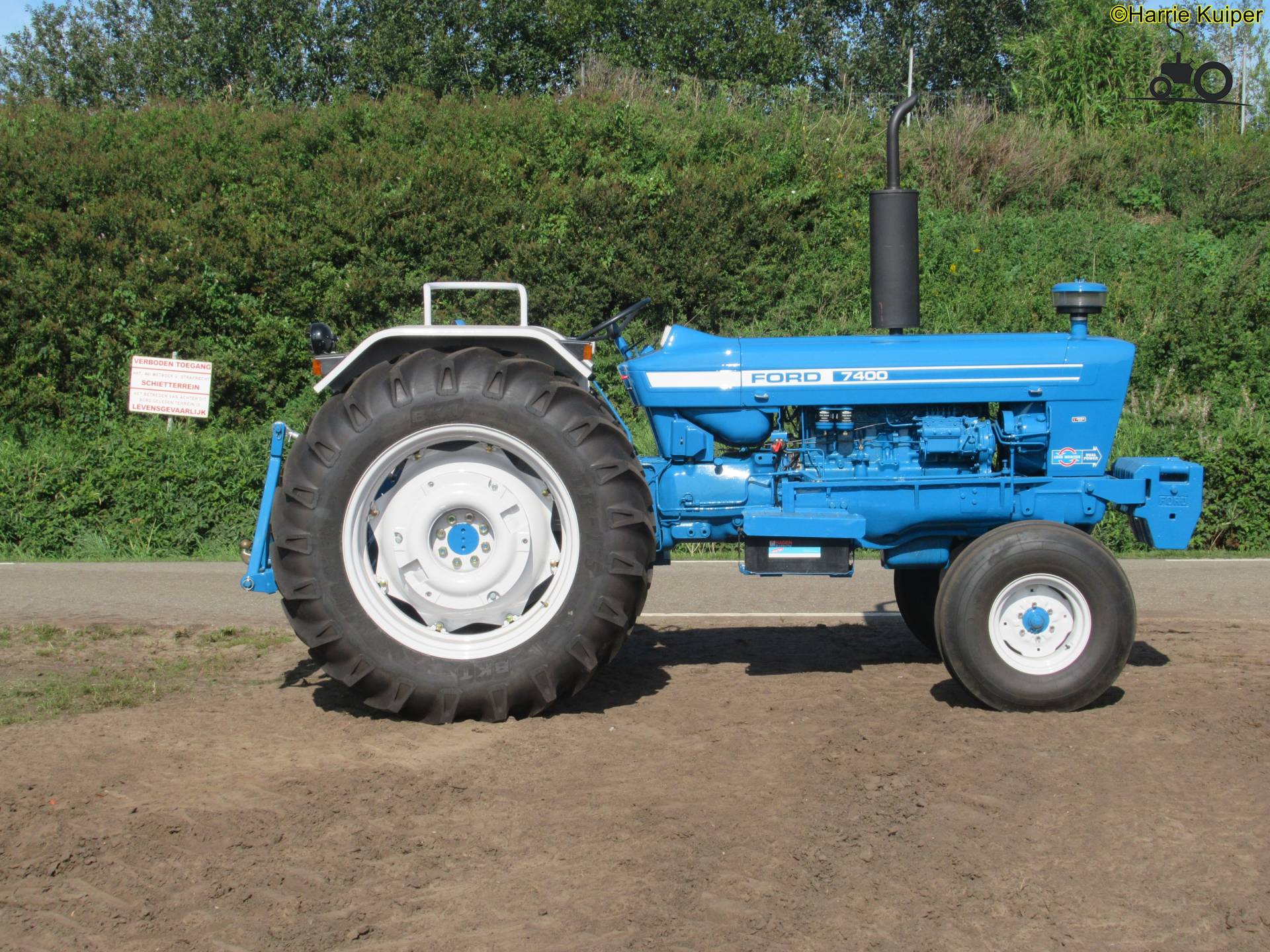

The Ford 7400 is a tractor rated at roughly 100 hp, a mid-range figure for its class. Under the hood is a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive with a 14-speed gearbox. It has a listed operating weight of 3150 kg, and it suits operations of 200–800 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
3150 kg
Catalogue coverage
Variants represented
2
Richest spec table
54 rows
Recorded power
100 hp
Recorded weight
3150 kg
Transmissions
14-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Andenne, BelgiumReference
The Ford 7400 was converted by EVA of Belgium.Reference
Two- or four-wheel driveReference
Open operator station. Four-post ROPS and cab available.Reference
Engine
Ford 6.2L 6-cyl dieselReference
Engine74.6 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.2 LReference
Bore/Stroke107 x 115 mmReference
Power74.6 kWReference
Fuel systemdirect injectionReference
Compression16:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.5 LReference
Coolant capacity18.5 LReference
Transmission
14-speedReference
TransmissionDual PowerReference
Gears14 forward and 4 reverseReference
Clutch330mm dry discReference
Oil capacity56.0 LReference
Seven gears, plus two reverse, in two ranges.Reference
Capacities
Fuel74.9 LReference
PTO & Hydraulics
Hydraulic system56.0 LReference
Capacity56.0 LReference
Pump flow35.2 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2050Reference
Dimensions
Wheelbase353 cmReference
Weight3150 kgReference
Front tire7.50-20Reference
Rear tire16.9/14-38Reference
Ag front7.50-20Reference
Ag rear16.9/14-38Reference
Length389 cmReference
Width180 cmReference
Height (steering wheel)165 cmReference
Clearance (front axle)44 cmReference
Clearance (rear axle)40 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps46Reference
Battery volts12Reference
Battery AH128Reference
Speeds
With 16.9/14-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
