Backhoe Loader · 1984Unverified

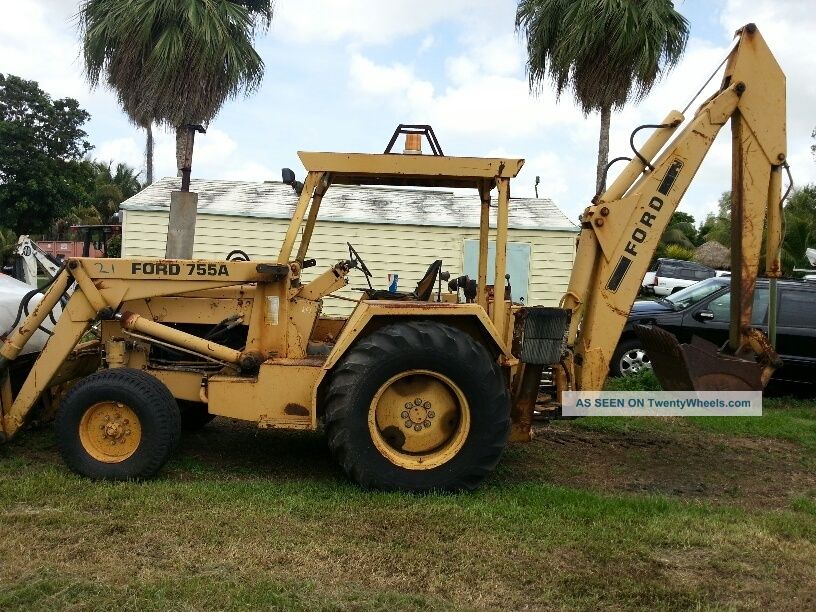

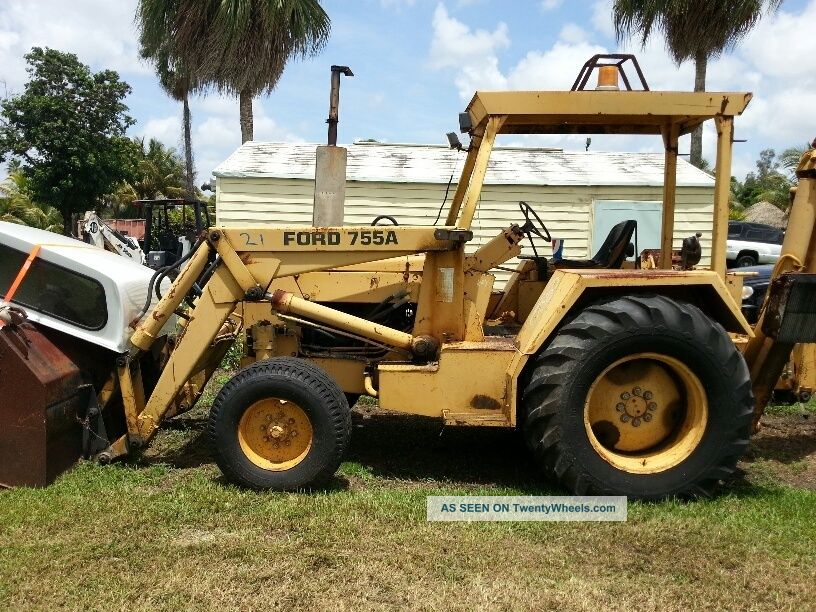

Ford 755A
Ford 755A — Backhoe loader tractor · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
16920 to 17960 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Backhoe loader tractorReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Differential mechanical wet disc brakesReference
Four-post ROPS canopy. Optional cab with heater.Reference
Engine
Ford 4.4L 4-cyl dieselReference
Engine (gross)76.1 kWReference
Engine (net)74.6 kWReference
FordReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power (net)74.6 kWReference
Power (gross)76.1 kWReference
Air cleanerdryReference
Compression15.6:1Reference
Rated RPM2100Reference
Torque377.0 NmReference
Torque RPM1600Reference
Starter volts12Reference
Transmission
3-speed power-reversing with torque converterReference
Typepower-reversing with torque converterReference
Gears3 forward and reverseReference
The Ford 755A has a three-speed transmission with torque converter and power reverser. The torque converter has a 2.87:1 torque multiplication ratio and a 2050 rpm stall speed.Reference
Capacities
Fuel149.5 LReference
PTO & Hydraulics
Hydraulic system75.7 LReference
Typeopen centerReference
Capacity75.7 LReference
Pressure162.0 barReference
Total flow106.0 lpmReference
Steering flow21.2 lpmReference
Dimensions
Wheelbase228 cmReference
Weight16920 to 17960 poundsReference
Front tire11.00-16Reference
Rear tire16.9-28Reference
Industrial front11.00-16Reference
Industrial rear16.9-28Reference
Industrial front14-17.5Reference
Industrial rear18.4-28Reference
Length779 cmReference
Width218 cmReference
Height (cab)271 cmReference
Ground clearance35 cmReference
Front tread162 cmReference
Rear tread162 cmReference
7674 kgReference
8146 kgReference
Max front axle5896 kgReference
Max rear axle7393 kgReference
Max rear axle7361 kgReference
Backhoe & Loader
Dig depth524 cmReference
Dump angle127 cmReference
Electrical
Charging systemalternatorReference
Charging amps51Reference
Battery CCA750Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Ford Backhoe
Backhoe typeFord BackhoeReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth524 cmReference
2-Foot flat digging depth521 cmReference
8-Foot flat digging depth491 cmReference
Reach from pivot656 cmReference
Loading height387 cmReference
Bucket force5221 kgReference
Dipperstick force3333 kgReference
Speeds
With 16.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
