Tractor · 1975Unverified
Ford 7600
Ford 7600 — Utility tractor · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Max power
48.7 kW
Weight
5580 to 7440 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $13,300 in 1981Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential wet disc brakesReference

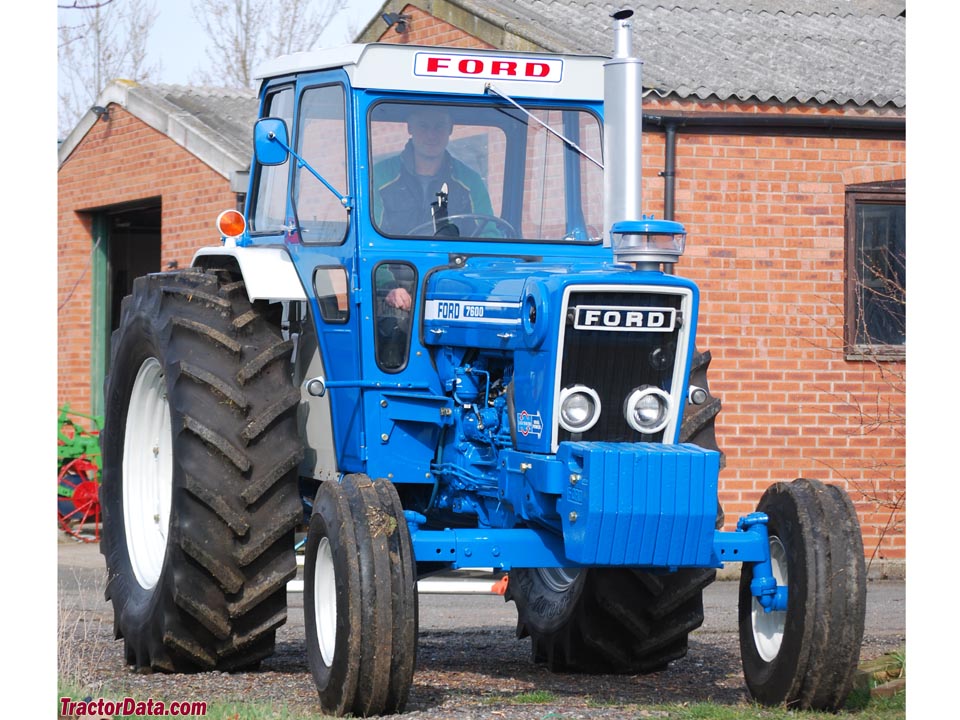

Open operator station. Two-post fixed ROPS available. Cab optional with available heat and air-conditioning.Reference
Variants

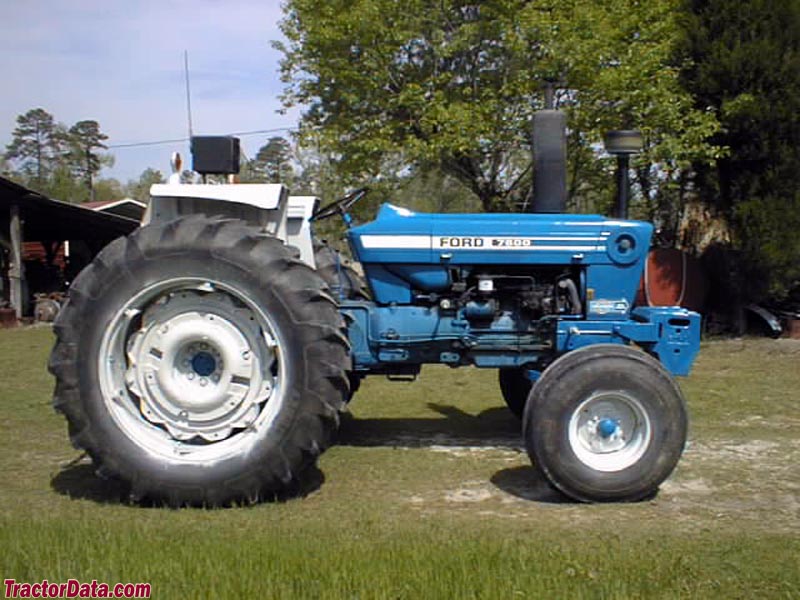

7600utility chassisReference
7700row-crop chassisReference
Engine
Ford 4.2L 4-cyl dieselReference
Ford 4.4L 4-cyl dieselReference
Fuel tank75.7 LReference
Fuel tank60.6 LReference
Engine (gross)72.1 kWReference
Engine (net)67.9 kWReference
Drawbar (tested)48.7 kWReference
FordReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power (net)67.9 kWReference
Power (gross)72.1 kWReference
Air cleanerpaper element with precleanerReference
Compression15.6:1Reference
Rated RPM2100Reference
Torque368.8 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity13.2 LReference
liquid-cooled inlineReference
The larger Blue Power Special engine was available in 1981 only. Advertised power performance was the same as the 4.2L.Reference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power at rated engine speed63.2 kWReference
Max power48.7 kWReference
Transmission
16-speed two-speed power shiftReference
8-speed gearReference
TransmissionDual-PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Clutchdry discReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
PTO (tested)63.2 kWReference
Typeopen centerReference
Pressure144.8 barReference
Pump flow36.7 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2011 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@1900Reference
Power at rated PTO speed63.5 kWReference
Dimensions
Wheelbase223 cmReference
Weight5580 to 7440 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Ag rear15.5-38Reference
Length369 cmReference
Width185 cmReference
Height (hood)173 cmReference
Height (cab)270 cmReference
Clearance (front axle)46 cmReference
Clearance (front axle)60 cmReference
Front tread133 to 204 cmReference
Rear tread132 to 203 cmReference
Rear tread167 to 228 cmReference
Shipping2531 kgReference
Operating3374 kgReference
Ballasted4880 kgReference
Ford 7600 attachments
front-end loaderReference
7600 Serial Numbers
1975C450700Reference
1976C490300Reference
1977C527300Reference
1978C560500Reference
1979C595800Reference
1980C635700Reference
1981C660700Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps51Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 772 loaderReference
Ford 774 loaderReference
Ford 772QT loaderReference
Test results
Diesel 16-speed 2WDSeptember 22 - October 8, 1976Link: Nebraska Tractor Test 1225 fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use20.1 l/hourReference
Drawbar performanceReference
Gear 8 used for power test.Reference
Max pull3528 kgReference
Gear 5 used for pull test.Reference
Speeds
With 16.9x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
