Tractor · 1994Unverified

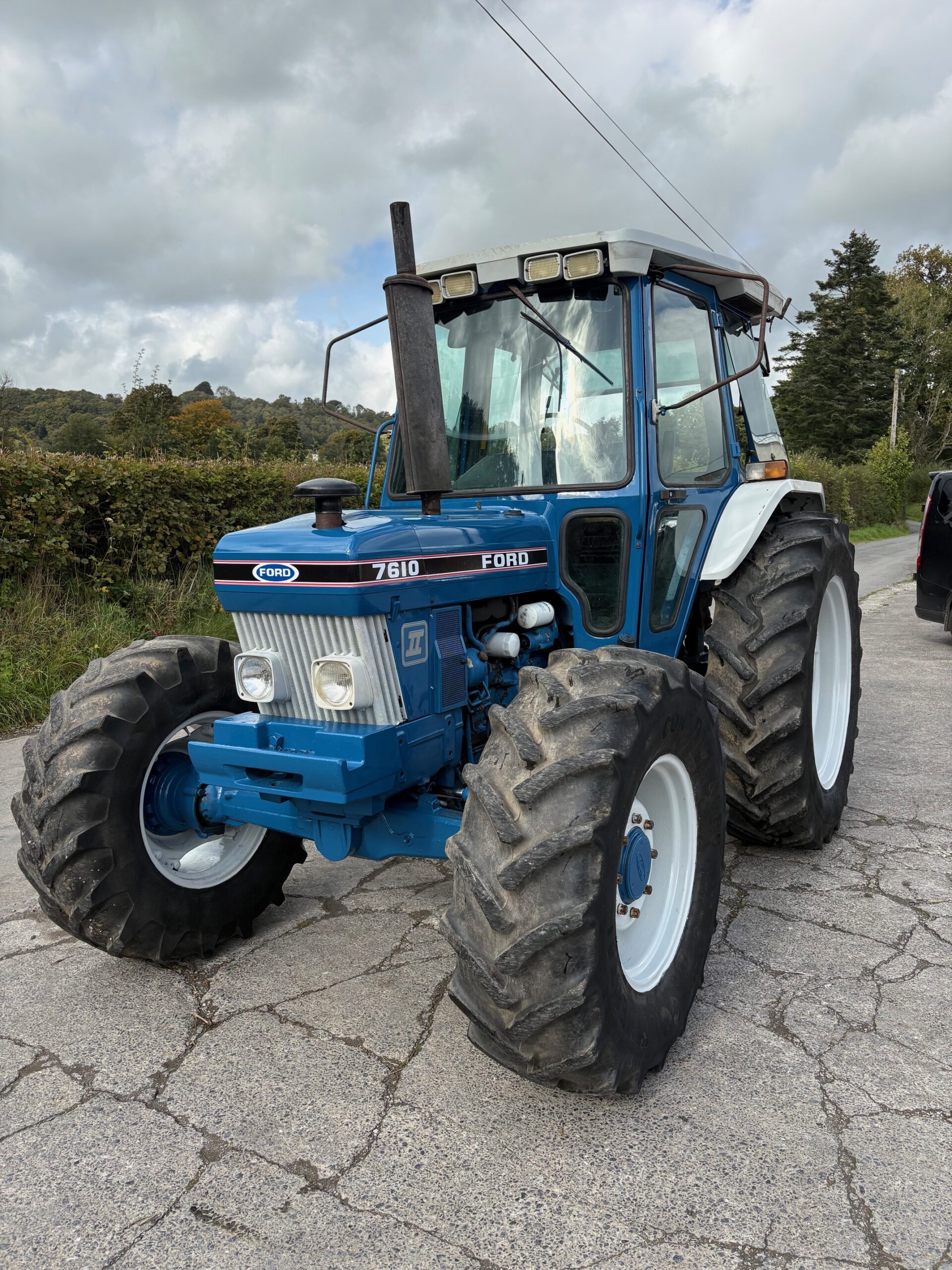

Ford 7610S

Name: Ford 7610S
Brand: Ford

Ford 7610S — 10S Series · 86 hp. Reference specifications; pending source verification.

The Ford 7610S tractor has an engine rating of 86 hp, placing it in the middle of its class in terms of power output. Manufactured between 1994 and 2000, this tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive via a hydrostatic transmission. The listed weight range is 5935 to 6575 pounds, and it is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Weight

5935 to 6575 pounds

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

86 hp

Recorded weight

2692 kg

Transmissions

8-speed unsynchronized gear

Production years

1994-2000

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Utility tractorReference

Built in Queretaro, MexicoReference

Original price$31,500 (2000)Reference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Ford 5.0L 4-cyl dieselReference

Engine70.8 kWReference

FordReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement5.0 LReference

Bore/Stroke112 x 127 mmReference

Power70.8 kWReference

Compression17.5:1Reference

Rated RPM2100Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Oil capacity11.4 LReference

Coolant capacity13.0 LReference

Intake valve clearance0.406 mmReference

Exhaust valve clearance0.483 mmReference

Transmission

8-speed unsynchronized gearReference

16-speed two-speed power shiftReference

Typeunsynchronized gearReference

Gears8 forward and 2 reverseReference

Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range.Reference

TransmissionDual PowerReference

Typetwo-speed power shiftReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

Typegear pumpReference

Pressure172.4 barReference

Valves2Reference

Pump flow36.7 lpmReference

Steering flow36.3 lpmReference

Steering cap.2.2 LReference

Rear TypeIIReference

Controlposition control with top-link draft sensingReference

Rear lift1832 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1900Reference

Engine RPM1000@2060Reference

Capacities

Fuel81.4 LReference

Fuel50.0 LReference

Steering2.2 LReference

Dimensions

2WD Wheelbase222 cmReference

4WD Wheelbase225 cmReference

Weight5935 to 6575 poundsReference

Front tire7.50-16Reference

Rear tire16.9-30Reference

Ag front7.50-16 (2WD)Reference

Ag front14.9x24 (4WD)Reference

Ag rear16.9-30Reference

2WD Length368 cmReference

4WD Length388 cmReference

Height (ROPS)243 cmReference

2WD Weight2692 kgReference

4WD Weight2982 kgReference

2WD Ground clearance46 cmReference

4WD Ground clearance45 cmReference

7610S Serial Numbers

199425000Reference

1995251435Reference

1996252558Reference

1997253609Reference

1998255857Reference

1999258109Reference

2000259472Reference

2001260543Reference

2002261969Reference

2003263610Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Charging volts12Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
