Tractor · 1958Unverified

Ford 771

Name: Ford 771
Brand: Ford

Ford 771 — 701 Workmaster Series · 48 hp. Reference specifications; pending source verification.

The Ford 771 is a tractor model with a rated engine power output of approximately 48 hp, positioning it within the lighter end of its class. It was manufactured from 1958 to 1962 and features a 4-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a powershift transmission. The tractor has an operating weight of 1542 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

48 hp

Weight

1542 kg

Catalogue coverage

Variants represented

Richest spec table

83 rows

Recorded power

48 hp

Recorded weight

1542 kg

Transmissions

10-speed full power shift

Production years

1958-1962

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Row-Crop tractorReference

Built in Highland Park, Michigan, USAReference

Two-wheel driveReference

Steeringpower assistReference

Differential mechanical expanding shoe brakesReference

Open operator station.Reference

Variants

771Select-O-SpeedReference

7414-speedReference

Engine

Ford 2.2L 4-cyl gasolineReference

Ford 2.2L 4-cyl LP gasReference

Ford 2.4L 4-cyl dieselReference

Engine36.1 kWReference

Belt (claimed)23.9 kWReference

Plows2 (14-inch)Reference

Ford EAE Red TigerReference

gasolineReference

4-cylinder 8-valveReference

liquid-cooled inlineReference

Displacement2.2 LReference

Bore/Stroke87 x 91 mmReference

EmissionsTier 0Reference

Power36.1 kWReference

Air cleaneroil bathReference

Compression7.5:1Reference

Rated RPM2200Reference

Torque171.9 NmReference

Torque RPM1600Reference

Firing order1-2-4-3Reference

Starter volts6Reference

Coolant capacity14.2 LReference

Sparkplug14MMReference

Sparkplug gap0.635 mmReference

Sparkplug gap0.711 mmReference

Oil capacity4.7 LReference

Oil change100 hReference

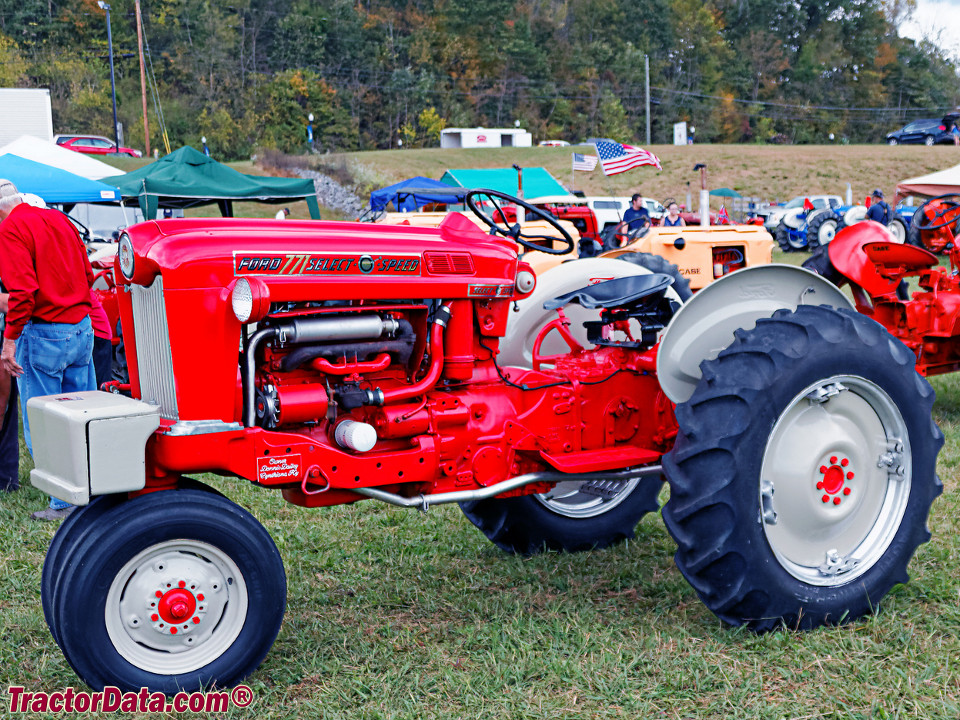

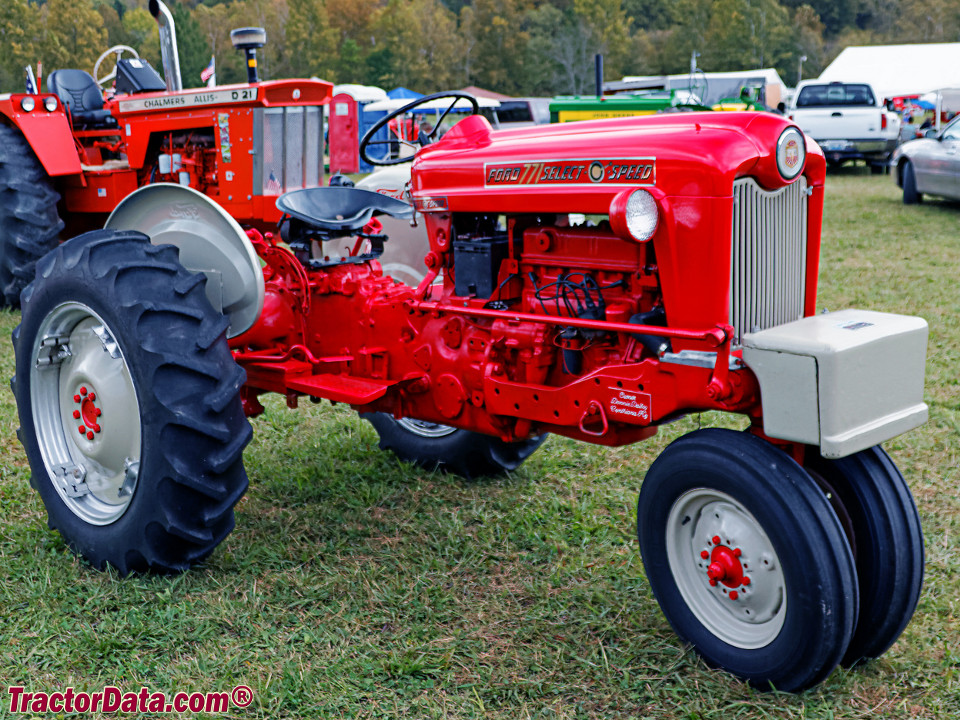

Image courtesy of Damon McGahaReference

FordReference

LP gasReference

liquid-cooledReference

dieselReference

Displacement2.4 LReference

Bore/Stroke90 x 91 mmReference

Starter volts12Reference

Transmission

10-speed full power shiftReference

TransmissionFord Select-O-SpeedReference

Typefull power shiftReference

Gears10 forward and 2 reverseReference

Capacities

Fuel49.2 LReference

PTO & Hydraulics

Hydraulic system7.6 LReference

Typeopen centerReference

Capacity7.6 LReference

Rear TypeIReference

Rear lift567 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Dimensions

Wheelbase216 cmReference

Weight1542 kgReference

Front tire6x16Reference

Rear tire11x28Reference

Ag front6x16Reference

Ag rear11x28Reference

Length335 cmReference

Height165 cmReference

Ground clearance69 cmReference

Front tread21 to 41 cmReference

Rear tread142 to 203 cmReference

771 Serial Numbers

Location:The serial number on the Ford 771 is on the left side, behind the starter and on top of the transmission case.Reference

19571001Reference

195811977Reference

195958312Reference

1960105943Reference

1961131427Reference

1962155531Reference

FAQ: How to read a serial number table.Reference

Electrical

Groundpositive (6V)Reference

Groundnegative (12V)Reference

Charging systemgeneratorReference

Charging amps20Reference

Battery volts6 (gas/lp)Reference

Battery volts12 (diesel)Reference

Battery AH80 (6V)Reference

Battery AH135 (12V)Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
