Tractor · 1982Unverified

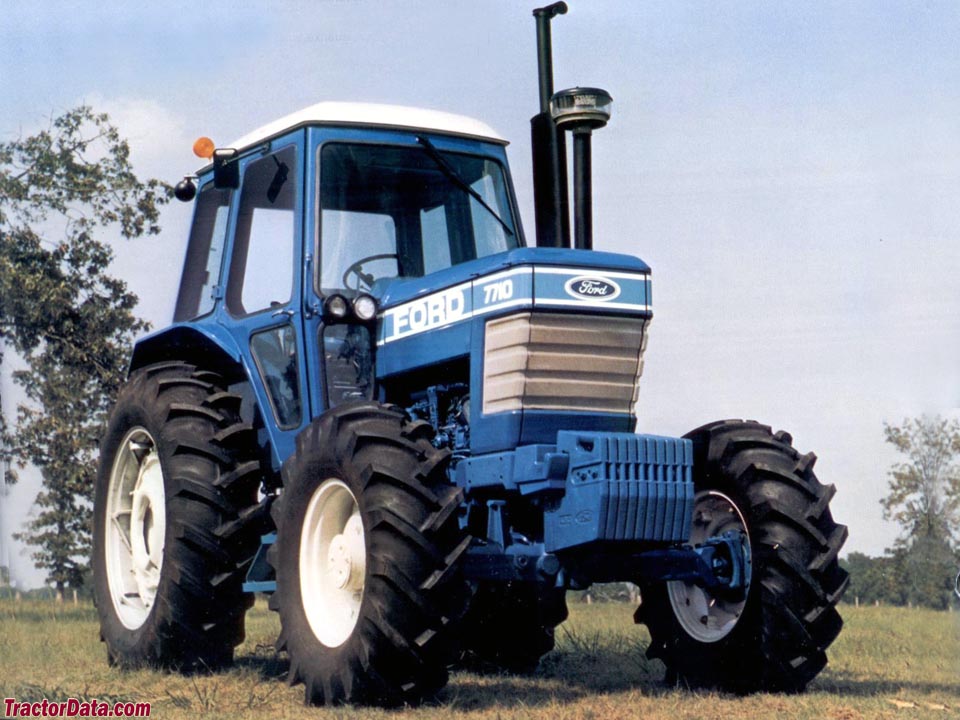

Ford 7710
Ford 7710 — 10 Series · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Max power
55.2 kW
Weight
6587 to 8650 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
FactoriesRomeo, Michigan, USAReference
FactoriesBasildon, EnglandReference
Original price was $28,000 in 1990Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
7610utilityReference
7710row-cropReference
Engine
Ford 4.4L 4-cyl dieselReference
Engine (gross)72.3 kWReference
Drawbar (tested)55.2 kWReference
FordReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power (gross)72.3 kWReference
Air cleanerdual paper elementsReference
Compression15.6:1Reference
Rated RPM2100Reference
Torque377.0 NmReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity17.0 LReference
Power at rated engine speed64.8 kWReference
Max power55.2 kWReference
Power at rated engine speed64.6 kWReference
Max power53.9 kWReference
Transmission
8-speedReference
16-speed two-speed power shiftReference
16-speed synchromesh partial power shiftReference
TransmissionDual-rangeReference
Gears8 forward and 2 reverseReference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Clutch330mm dry discReference
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.Reference
Typesynchromesh partial power shiftReference
Gears16 forward and 8 reverseReference
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.Reference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
PTO (tested)64.8 kWReference
Hydraulic system56.8 LReference
Typeopen centerReference
Capacity56.8 LReference
Pressure172.4 barReference
Valves2Reference
Pump flow68.9 lpmReference
Steering flow10.4 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)2028 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1902Reference
Engine RPM1000@2059Reference
Power at rated PTO speed64.7 kWReference
Power at rated PTO speed64.5 kWReference
Capacities
Fuel177.9 LReference
Dimensions
2WD Wheelbase258 cmReference
4WD Wheelbase247 cmReference
Weight6587 to 8650 poundsReference
Front tire7.50-16Reference
Rear tire15.5-38Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear15.5-38Reference
Ag front7.50-18 (2WD)Reference
Ag front10.00-16 (2WD)Reference
Ag front13.6-24 (4WD)Reference
Ag front14.9-24 (4WD)Reference
Ag rear18.4-30Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear16.9-38Reference
2WD Length384 cmReference
4WD Length392 cmReference
Width195 cmReference
Ground clearance52 cmReference
Ground clearance62 cmReference
2WD Front tread148 to 219 cmReference
4WD Front tread152 to 200 cmReference
Rear tread152 to 203 cmReference
Rear tread142 to 228 cmReference
Shipping2987 kgReference
Operating3923 kgReference
Ballasted4898 kgReference
Steering wheel219 cmReference
Ford 7710 attachments
front-end loaderReference
7710 Serial Numbers
Location:On plate inside engine compartment and on right-front of transmission.Reference
1982C681910Reference
1983C695880Reference
1984C713459Reference
1985C737800Reference
1986C754100Reference
1986BA80100Reference
1987C768000Reference
1987BB06622Reference
1988BB31777Reference
1989BB80260Reference
1990BC26239Reference
1991BC68791Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps51Reference
Cab Charging amps71Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 777B loaderReference
Ford 777D loaderReference
Ford 777F loaderReference
Ford 7412 loaderReference
Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.Reference
Ford 7710 Height
ROPS281 cmReference
Cab291 cmReference
Exhaust296 cmReference
Test results
NTTL 1432: diesel 16/4 4WDReference
NTTL 1433: diesel 16/8 powershift 2WDReference
Diesel 16/4 4WDApril 14 - May 10, 1982Link: Nebraska Tractor Test 1432 fileReference
PTO performanceReference
Fuel use21.2 l/hourReference
Fuel use3.8 l/hourReference
Drawbar performanceReference
Fuel use20.8 l/hourReference
Gear 6L used for power test.Reference
Max pull3993 kgReference
Gear 3L used for pull test.Reference
Diesel 16/8 powershift 2WDApril 2 - May 3, 1982Link: Nebraska Tractor Test 1433 fileReference
Fuel use20.1 l/hourReference
Max pull3918 kgReference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
