Tractor · 1988Unverified

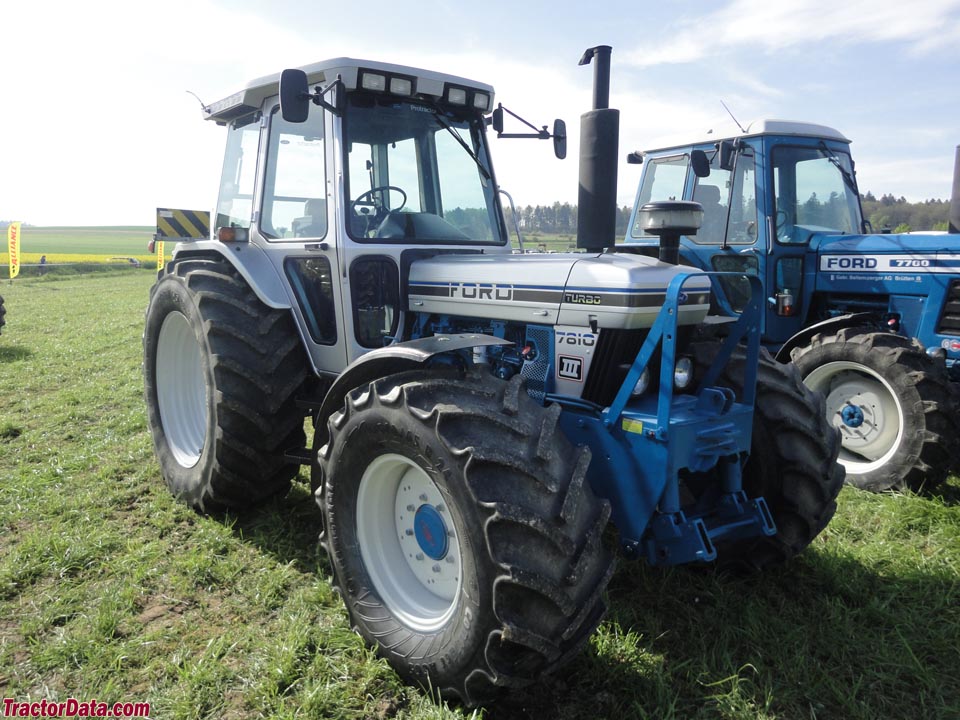

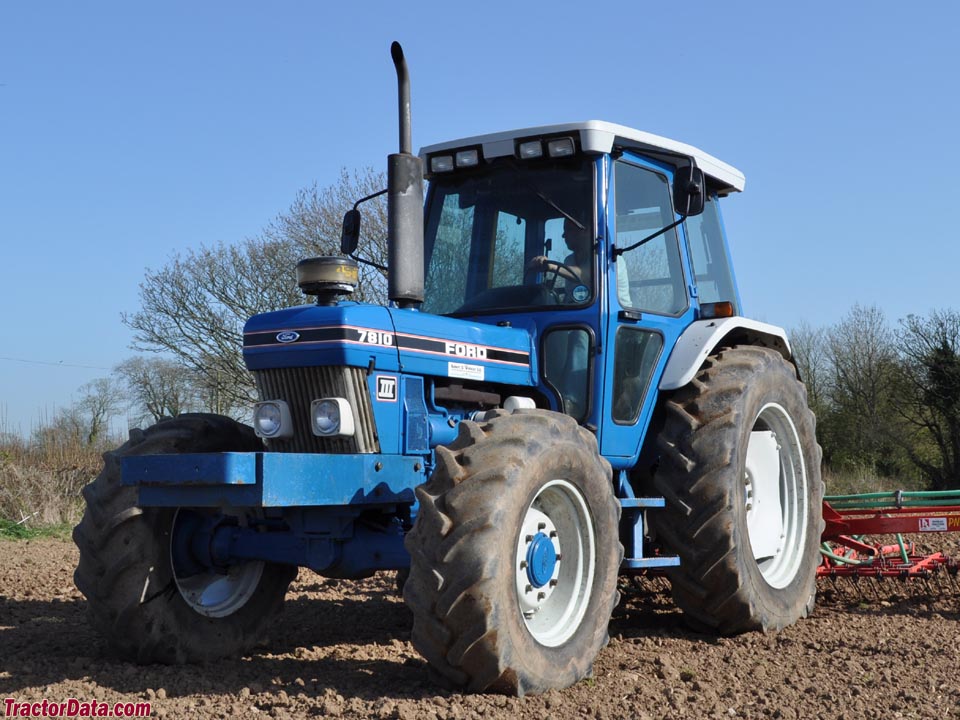

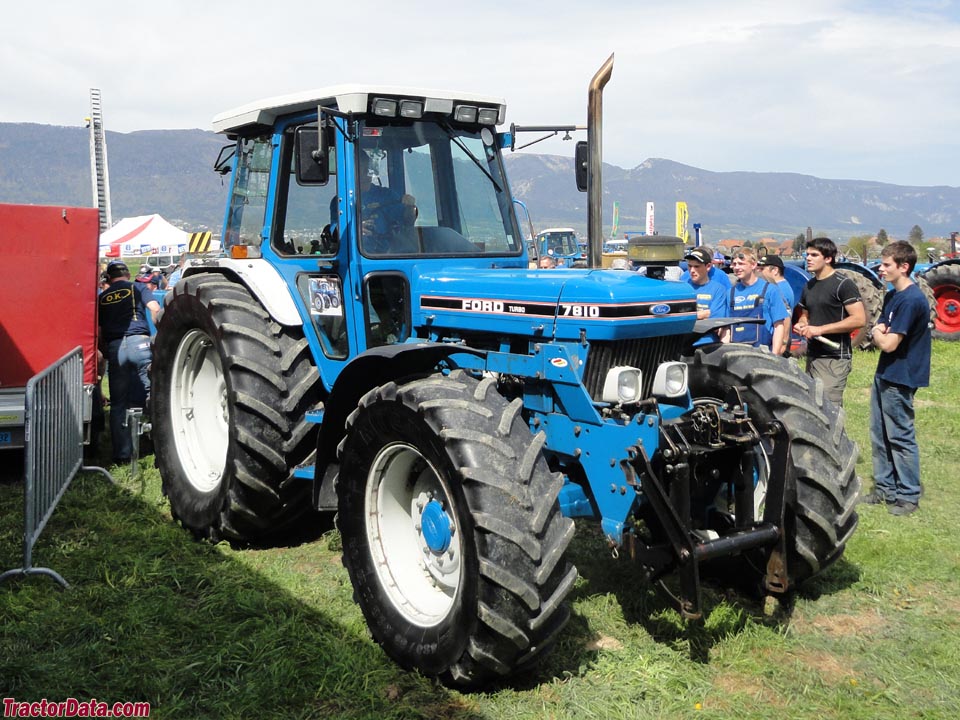

Ford 7810
Ford 7810 — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
8228 to 9460 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Original price was $32,000 in 1990Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Cab optional.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Fuel tank132.5 LReference
Engine (gross)78.3 kWReference
Engine (net)74.6 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power (net)74.6 kWReference
Power (gross)78.3 kWReference
Pre-heatingthermostartReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity15.1 LReference
Transmission
8-speed gearReference
16-speedReference
TypegearReference
Gears8 forward and 2 reverseReference
TransmissionDual PowerReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
Typeopen centerReference
Valves2 to 4Reference
Pump flow68.9 lpmReference
Rear TypeIIReference
Rear lift1823 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2060Reference
Dimensions
2WD Wheelbase251 cmReference
4WD Wheelbase251 cmReference
Weight8228 to 9460 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-38Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-38Reference
4WD Standard tires (ag)Front: 14.9-24. Rear: 16.9-38Reference
2WD Length400 cmReference
4WD Length420 cmReference
Width185 cmReference
2WD Weight3732 kgReference
4WD Weight4291 kgReference
Front tread132 to 203 cmReference
Rear tread142 to 228 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps51Reference
Cab Charging amps75Reference
Battery CCA750Reference
Battery volts12Reference
Ford 7810 Height
ROPS243 cmReference
ROPS246 cmReference
Cab270 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
