Tractor · 1992Unverified

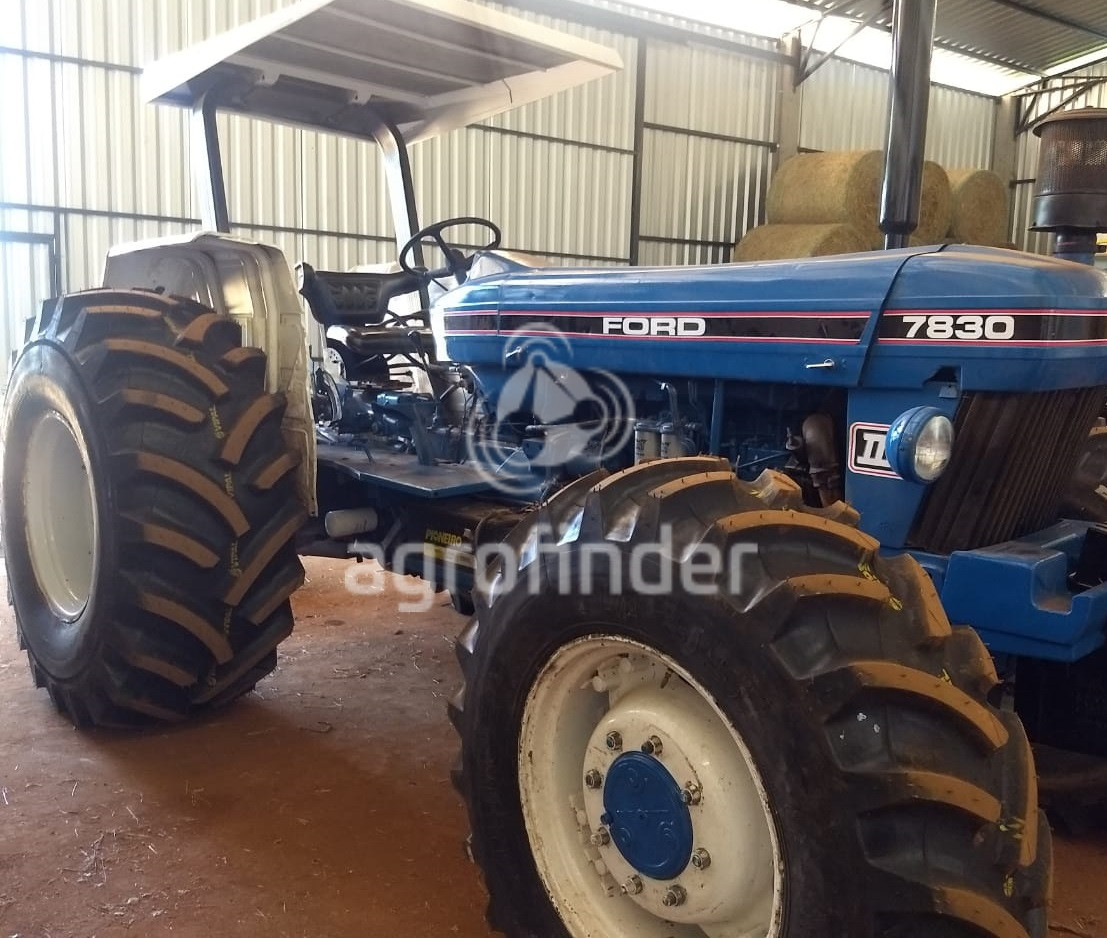

Ford 7830
Ford 7830 — 30 Superforça Series · 112 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
112 hp
Hover a source tag to verify
Overview
ManufacturerFord (a part of New Holland)Reference
Utility tractorReference
Built in Curitiba, BrazilReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Engine83.5 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 127 mmReference
Power83.5 kWReference
Transmission
16-speedReference
TransmissionDual PowerReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow34.8 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
