Tractor · 1992Unverified

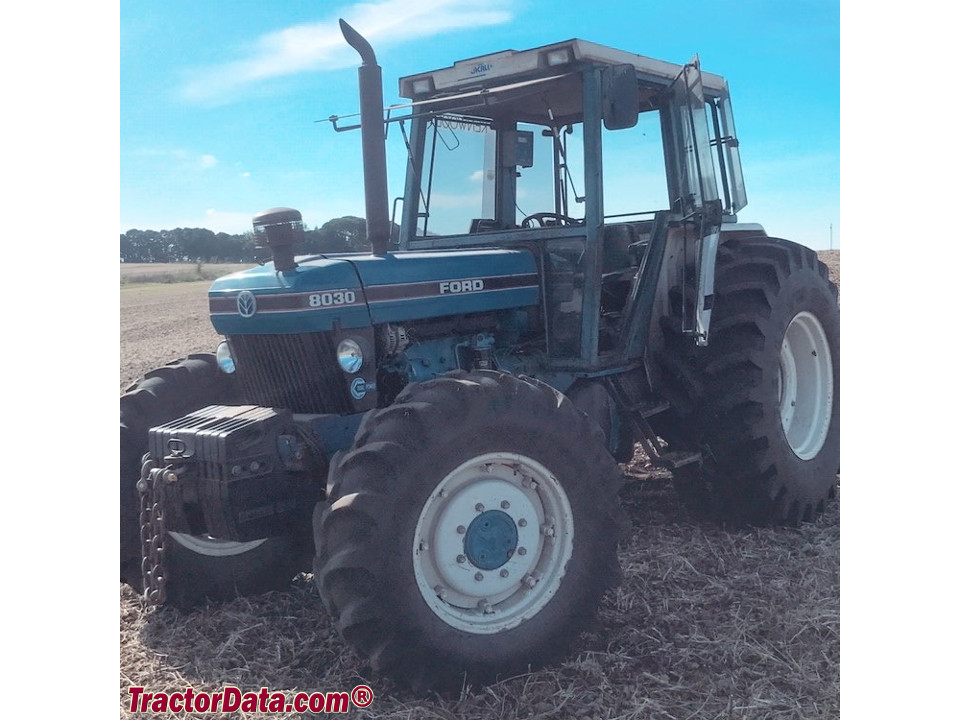

Ford 8030
Ford 8030 — 30 Superforça Series · 122 hp. Reference specifications; pending source verification.
The Ford 8030 tractor is a high-powered machine, with a rating of 122 hp. Manufactured from 1992 to 1997, it features a 6-cylinder diesel liquid-cooled engine driving through a four-wheel drive system with a 16-speed gearbox. The tractor's listed weight is 4510 kg, and it is designed for use in areas of approximately 200-800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
122 hp
Weight
4510 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
122 hp
Recorded weight
4510 kg
Transmissions
16-speed
Production years
1992-1997
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFord (a part of New Holland)Reference
Utility tractorReference
Built in Curitiba, BrazilReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Ford 7.5L 6-cyl dieselReference
Engine91.0 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Power91.0 kWReference
Starter volts12Reference
Transmission
16-speedReference
TransmissionDual PowerReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow34.8 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase252 cmReference
Weight4510 kgReference
Length436 cmReference
Height286 cmReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
