Tractor · 1978Unverified

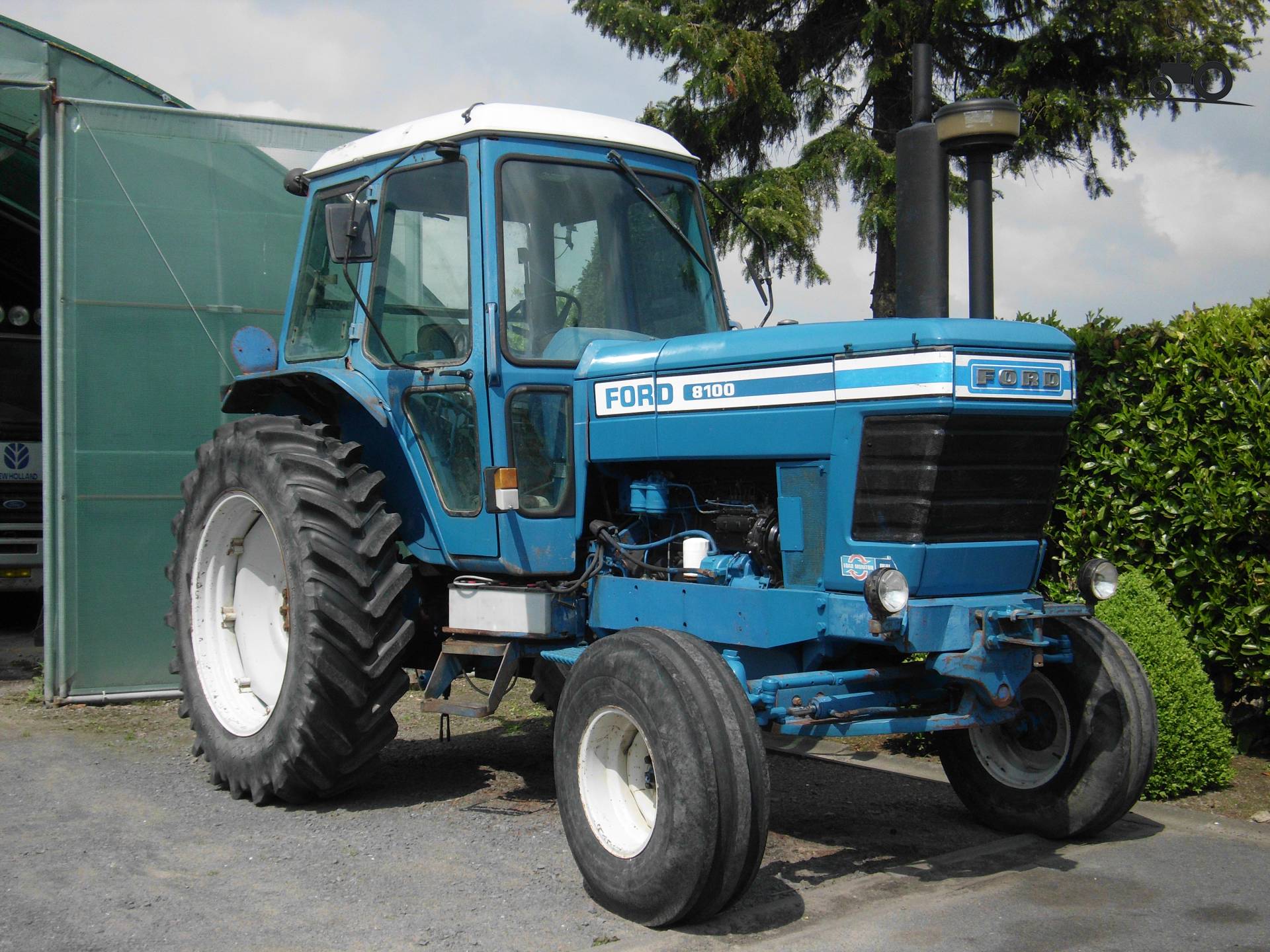

Ford 8100
Ford 8100 — Row-Crop tractor · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
4117 kg
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerCountyReference
Row-Crop tractorReference
Built in Fleet, EnglandReference
The Ford 8100 was assembled for Ford by County to provide a 100 horsepower tractor using existing components.Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard with heater.Reference
Engine
Ford 6.2L 6-cyl dieselReference
Fuel tank160.1 LReference
Fuel tank232.0 LReference
Engine85.8 kWReference
Ford 2715EReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke107 x 115 mmReference
Power85.8 kWReference
Air cleanerdryReference
Rated RPM2100Reference
Firing order1-5-3-6-2-4Reference
Starter typeelectricReference
Ford 2714EReference
The 105 horsepower 2714E engine was used on the Ford 8100 in France and Switzerland as opposed to the 2415E used in other markets.Reference
Bore/Stroke107 x 115 mmReference
Fuel systemdirect injectionReference
Compression16:11Reference
Torque416.3 NmReference
Torque RPM1600Reference
Oil capacity13.6 LReference
Transmission
16-speed two-speed power shiftReference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Clutch305mm dry discReference
PTO & Hydraulics
Typeopen centerReference
Pressure172.4 barReference
Pump flow39.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2893 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2060Reference
Dimensions
Wheelbase260 cmReference
Weight4117 kgReference
Front tire11.00-16Reference
Rear tire14-38Reference
Ag front11.00-16Reference
Ag rear14-38Reference
Length419 cmReference
Width199 cmReference
Height (cab)292 cmReference
Height (exhaust)302 cmReference
Clearance (front axle)55 cmReference
Clearance (rear axle)74 cmReference
Clearance (drawbar)55 cmReference
Front tread142 to 203 cmReference
Rear tread152 to 203 cmReference
Electrical
Charging systemalternatorReference
Charging amps46Reference
Battery volts12Reference
Battery AH128Reference
Speeds
With 14-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
