Tractor · 1982Unverified

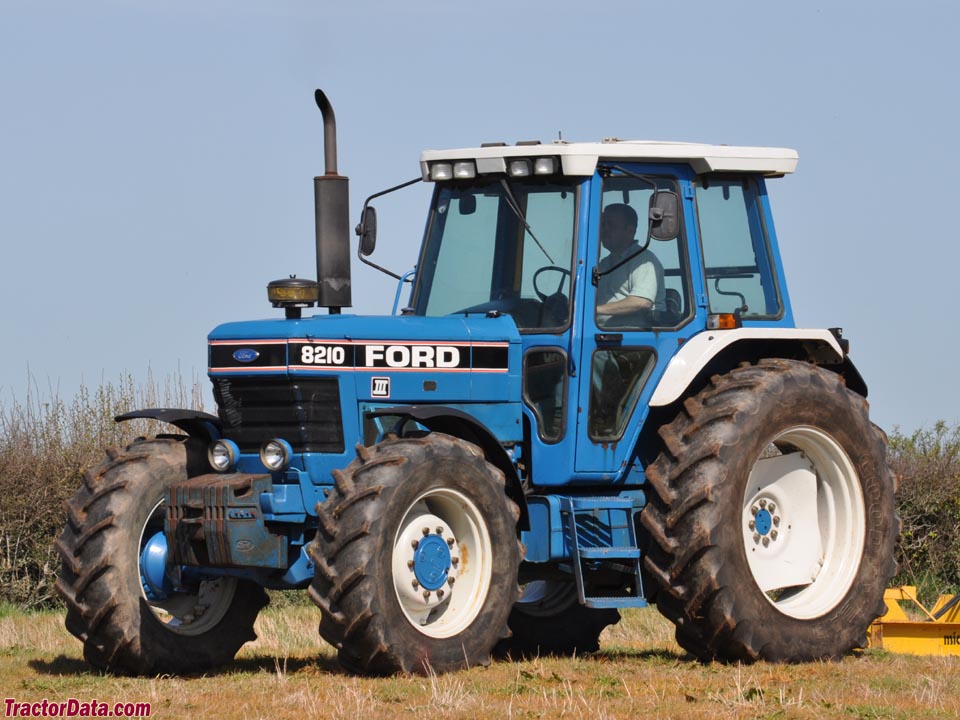

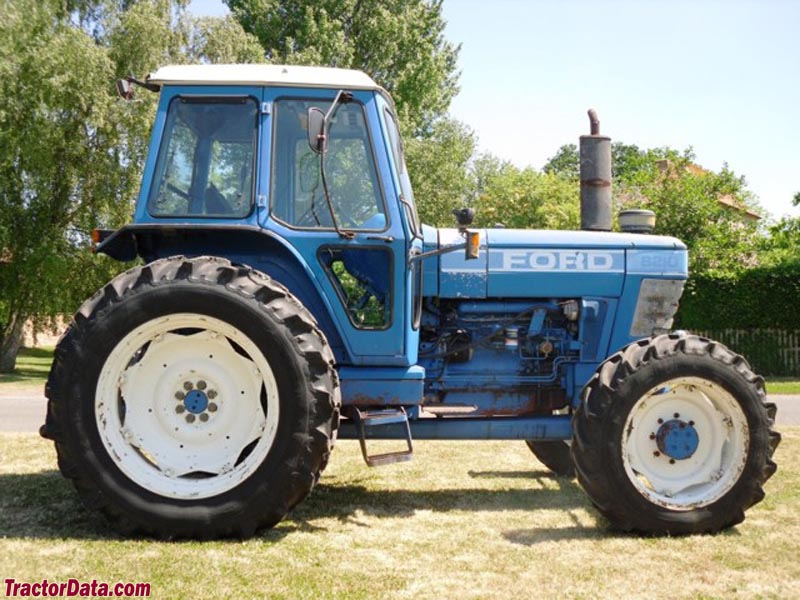

Ford 8210
Ford 8210 — Row-Crop tractor · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
8730 to 9370 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Original price was $49,000 in 1991Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard with air-conditioning. Optional AM/FM radio.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Fuel tank177.9 LReference
Engine (gross)85.8 kWReference
Engine (net)82.0 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power (net)82.0 kWReference
Power (gross)85.8 kWReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Compression16.3:1Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity21.3 LReference
Transmission
16-speed two-speed power shiftReference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch330mm dry discReference
Oil capacity56.8 LReference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
Typeopen centerReference
Valves2 to 4Reference
SCV flow68.9 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift (at 24"/610mm)2011 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1902Reference
Engine RPM1000@2049Reference
Dimensions
Wheelbase278 cmReference
Weight8730 to 9370 poundsReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Ag front14.9-24Reference
Ag rear18.4-34Reference
Ag front14.9-28Reference
Ag rear18.4-38Reference
Ag rear16.9-38Reference
Length448 cmReference
2WD Weight3959 kgReference
4WD Weight4250 kgReference
Clearance (front axle)49 cmReference
Front tread152 to 200 cmReference
Rear tread152 to 203 cmReference
Steering wheel219 cmReference
Ford 8210 attachments
front-end loaderReference
8210 Serial Numbers
Location:Data plate inside engine compartment.Reference
1982C681910Reference
1983C695880Reference
1984C713459Reference
1985C737800Reference
1986C754100Reference
1987C768000Reference
1988BB06622Reference
1989BB80260Reference
1990BC26239Reference
1991BC68791Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Battery volts12Reference
Battery AH128Reference
Ford 8210 Height
Cab289 cmReference
Exhaust303 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
