Tractor · 1989Unverified

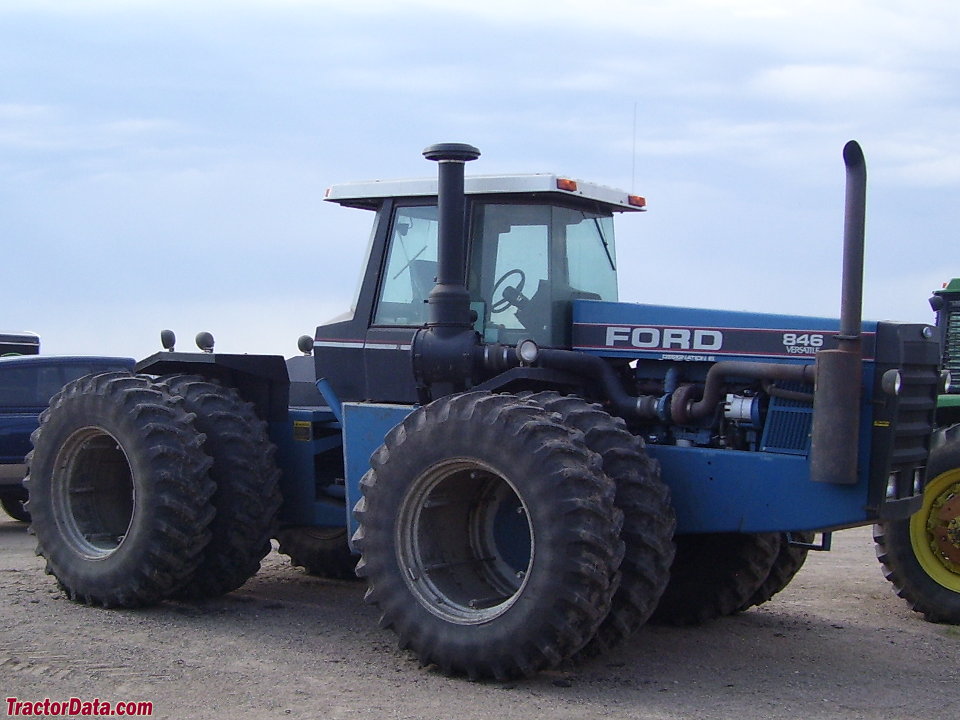

Ford 846

Name: Ford 846
Brand: Ford

Ford 846 — 800 Series · 202 hp. Reference specifications; pending source verification.

The Ford 846 is a tractor with a rated power output of 202 hp, positioning it at the more powerful end of its class. Manufactured between 1989 and 1993, it features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. The tractor's operating weight is listed as 18000 to 23000 pounds. It is suited for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

202 hp

Weight

18000 to 23000 pounds

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

202 hp

Transmissions

12-speed constant mesh

Production years

1989-1993

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Four-wheel Drive (4WD) tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Final drivesinboard planetary (row-crop)Reference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 10.0L 6-cyl dieselReference

Engine171.5 kWReference

Cummins L10-A230Reference

aftercooled turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement10.0 LReference

Bore/Stroke125 x 136 mmReference

Power171.5 kWReference

Air cleanerdual dry elementReference

Pre-heatingether injectionReference

Pre-heatingblock heaterReference

Rated RPM2100Reference

Torque1014.3 NmReference

Torque RPM1300Reference

Starter volts12Reference

Oil capacity26.5 LReference

Coolant capacity52.1 LReference

Transmission

12-speed constant meshReference

15-speed partially synchronizedReference

Typeconstant meshReference

Gears12 forward and 4 reverseReference

Clutch356mm dry discReference

Oil capacity20.3 LReference

TransmissionVersatile Three-by-FiveReference

Typepartially synchronizedReference

Gears15 forward and 5 reverseReference

Clutch228mm hydraulic wet discReference

Five synchronized gears in three ranges, plus reverse range.Reference

PTO & Hydraulics

PTO (claimed)150.6 kWReference

Hydraulic system57.9 LReference

Typeclosed center load sensingReference

Capacity57.9 LReference

Pressure155.1 barReference

Valves4 to 5Reference

Pump flow95.4 lpmReference

Steering flow98.0 lpmReference

Steering press.158.6 barReference

Rear TypeIIIReference

Rear TypeIII/IVNReference

Controlposition controlReference

Rear lift (at 24"/610mm)4677 kgReference

Rear lift (at 24"/610mm)5913 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Capacities

Fuel931.1 LReference

Max capacity12700 kgReference

Dimensions

Wheelbase330 cmReference

Weight18000 to 23000 poundsReference

Ag front18.4x38Reference

Ag front18.4x42Reference

Ag front24.5x32Reference

Ag front30.5x32Reference

Ag rear18.4x38Reference

Ag rear18.4x42Reference

Ag rear24.5x32Reference

Ag rear30.5x32Reference

Length660 cmReference

Ground clearance40 cmReference

Front axleBarReference

Bar rear axle (row-crop)Reference

Front tread152 to 309 cmReference

Rear tread152 to 309 cmReference

Shipping8164 kgReference

Operating10432 kgReference

Steering wheel260 cmReference

846 Serial Numbers

Location:Serial number plate on the cab door post.Reference

1988846 88 330335Reference

1989846 89 D430159Reference

1990846 90 D450298Reference

1991846 91 D475001Reference

1992846 92 D485051Reference

1993846 93 D930035Reference

Final846 93 D931211Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Batteries4Reference

Battery CCA625Reference

Battery volts12Reference

Ford 846 Height

Cab317 cmReference

Exhaust332 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
