Tractor · 1989Unverified

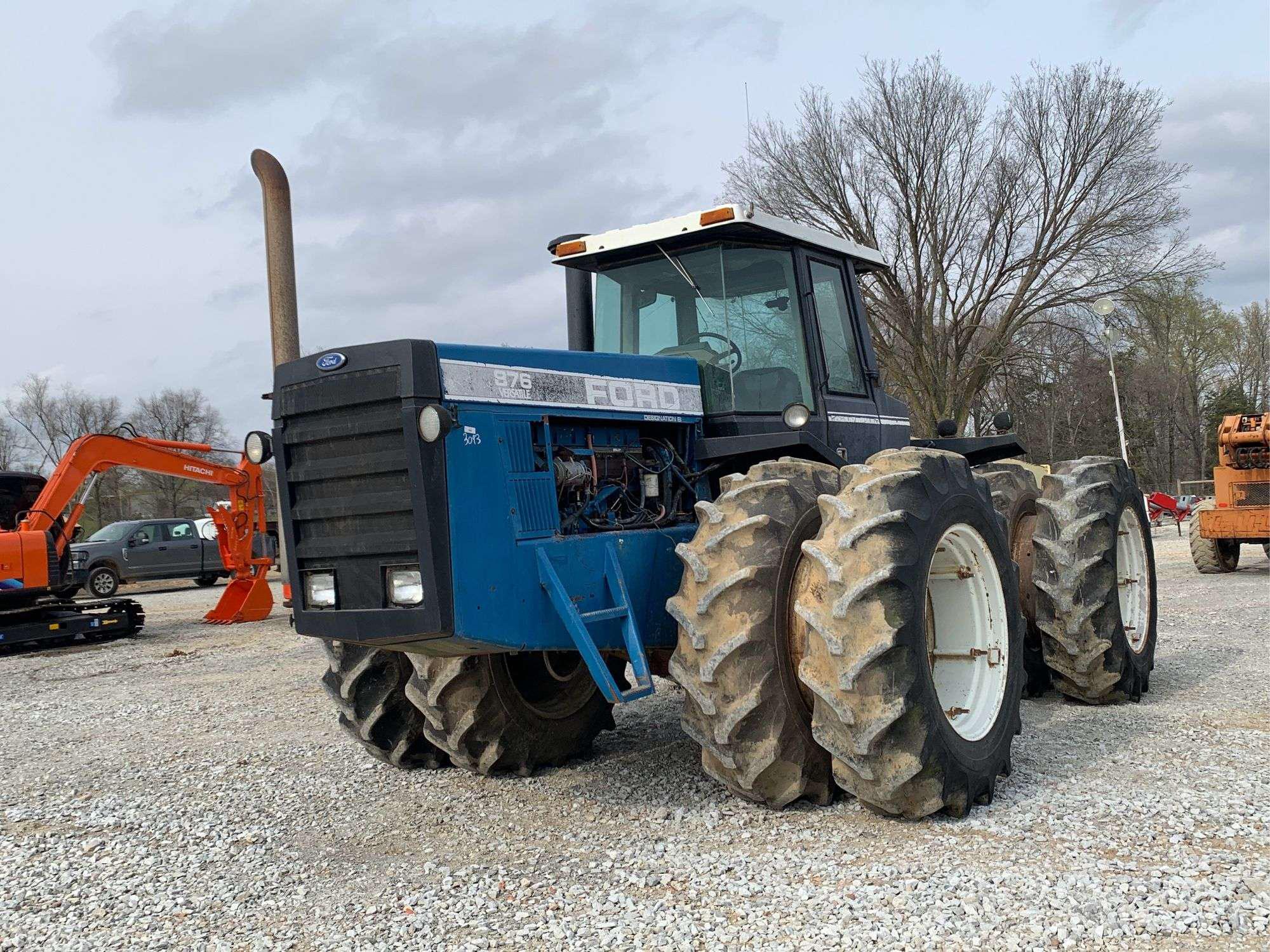

Ford 876

Name: Ford 876
Brand: Ford

Ford 876 — 800 Series · 246 hp. Reference specifications; pending source verification.

The Ford 876 tractor is a powerful model, rated at approximately 246 horsepower. It was manufactured from 1989 to 1993. Key specifications include a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. The tractor's operating weight ranges from 18100 to 24900 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

246 hp

Max power

170.3 kW

Weight

18100 to 24900 pounds

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

246 hp

Transmissions

12-speed constant mesh

Production years

1989-1993

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Four-wheel Drive (4WD) tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Original price was $93,000 in 1993Reference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Final drivesinboard planetary (row-crop axle)Reference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 10.0L 6-cyl dieselReference

Engine208.8 kWReference

Drawbar (tested)170.3 kWReference

Cummins LT10-A280Reference

aftercooled turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement10.0 LReference

Bore/Stroke125 x 136 mmReference

Power208.8 kWReference

Air cleanerdual dry elementReference

Pre-heatingether injectionReference

Pre-heatingblock heaterReference

Compression16:1Reference

Rated RPM2100Reference

Torque1213.6 NmReference

Torque RPM1300Reference

Starter volts12Reference

Oil capacity26.5 LReference

Coolant capacity53.5 LReference

Max power170.3 kWReference

Transmission

12-speed constant meshReference

12-speed full power shiftReference

TransmissionVersatileReference

Typeconstant meshReference

Gears12 forward and 4 reverseReference

Clutch356mm dry discReference

Oil capacity20.3 LReference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Clutch228mm wet discReference

Oil capacity17.0 LReference

PTO & Hydraulics

PTO (claimed)183.4 kWReference

Hydraulic system57.9 LReference

Typeclosed center load sensingReference

Capacity57.9 LReference

Pressure155.1 barReference

Valves4 to 5Reference

Pump flow95.4 lpmReference

Steering flow98.0 lpmReference

Steering press.158.6 barReference

Rear TypeIVN/IIIReference

Controlposition controlReference

Rear lift (at 24"/610mm)4677 kgReference

Rear lift (at 24"/610mm)5913 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Capacities

Fuel931.1 LReference

Max capacity13381 kgReference

Dimensions

Wheelbase330 cmReference

Weight18100 to 24900 poundsReference

Front tire20.8x38Reference

Rear tire20.8x38Reference

Ag front20.8x38Reference

Ag rear20.8x38Reference

Ag front18.4x38Reference

Ag front18.4x42Reference

Ag front24.5x32Reference

Ag front30.5x32Reference

Ag rear18.4x38Reference

Ag rear18.4x42Reference

Ag rear24.5x32Reference

Ag rear30.5x32Reference

Length660 cmReference

Ground clearance40 cmReference

Front axle101 mmReference

Front axleFlangeReference

Bar rear axle101 mmReference

Flange rear axleReference

Shipping8210 kgReference

Operating11294 kgReference

Steering wheel260 cmReference

876 Serial Numbers

Location:Serial number plate on the cab door post.Reference

1985876 85 223035Reference

1986876 86 270331Reference

1987876 87 ------Reference

1988876 88 330100Reference

1989876 89 D430197Reference

1990876 90 D450167Reference

1991876 91 D475041Reference

1992876 92 D485111Reference

1993876 93 D930000Reference

Final876 93 D931179Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Batteries4Reference

Battery CCA625Reference

Battery volts12Reference

Ford 876 Height

Cab317 cmReference

Exhaust332 cmReference

Test results

Diesel manual 4WDMay 21 - 29, 1985Link: Nebraska Tractor Test 1569 fileReference

Drawbar performanceReference

Fuel use51.5 l/hourReference

Gear 2-3 used for power test.Reference

Max pull12566 kgReference

Gear 1-2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
