Tractor · 1990Unverified

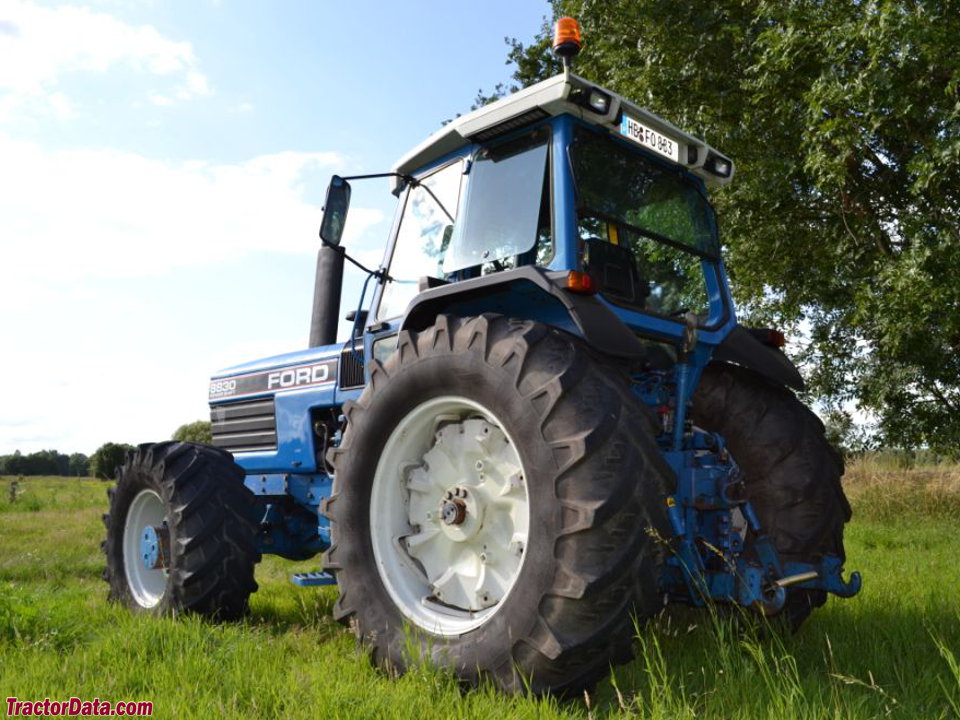

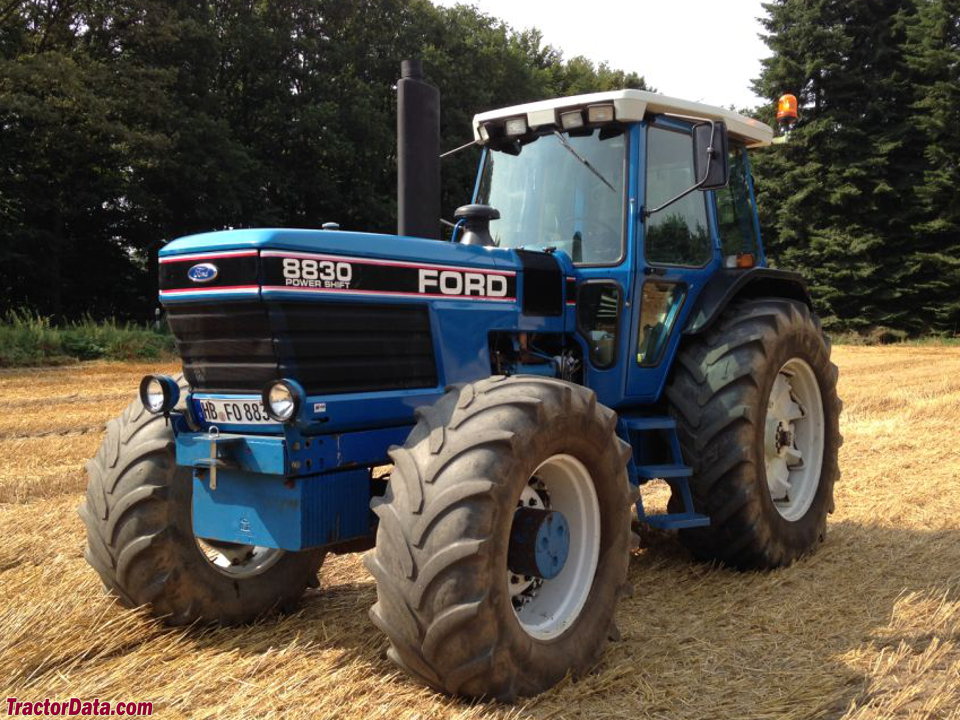

Ford 8830
Ford 8830 — Row-Crop tractor · 170 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
170 hp
Weight
12995 to 15520 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Antwerp, BelgiumReference
Original price was $63,000 in 1993Reference
Two- or four-wheel driveReference
Power steeringReference
Power disc brakesReference
Optional cab with heat and air-conditioning.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Drawbar (tested)108.6 kWReference
4WD cab Powershift7039 kgReference
FordReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Compression15.6:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity21.6 LReference
Coolant capacity23.1 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.432 mmReference
Oil capacity18.5 LReference
Transmission
18-speedReference
16-speedReference
TransmissionFunk Ultra CommandReference
Gears18 forward and 9 reverseReference
Oil capacity96.2 LReference
The Ford Ultra Command Powershift allows on-the-move shifting between gears, and shuttle shifting, without a clutch. A single lever controls the transmission; moving it to the left shifts down, to the right shifts up. Pushing forward increases forward throttle while pulling it back moves the tractor in reverse. An inching pedal is used for precise movements.Reference
TransmissionDual Power - constant meshReference
Gears16 forward and 4 reverseReference
Oil capacity86.7 LReference
Oil capacity91.9 LReference
The Dual Power transmission provides a 'Powerdrive' low range to the basic constant mesh transmission. A foot switch next to the clutch is used to engage and disengage the mode, and may be switched while the tractor is in motion. A "rabbit" or "turtle" display light on the instrument panel indicates which mode the transmission is selected.Reference
PTO & Hydraulics
PTO (claimed)126.8 kWReference
PTO (tested)127.6 kWReference
Typeopen center gear pump, dual pumps optionalReference
Pressure172.4 barReference
Valves2 to 4Reference
Pump flow75.7 lpmReference
Pump flow108.3 lpmReference
SCV flow64.0 lpmReference
SCV flow71.9 lpmReference
Steering cap.1.9 LReference
Steering press.139.6 barReference
Rear Type3/2Reference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel283.9 LReference
Fuel92.7 LReference
Steering1.9 LReference
Front hubs0.8 LReference
Front diff.7.5 LReference
Dimensions
Wheelbase281 cmReference
Weight12995 to 15520 poundsReference
Front tire11.00-16Reference
Rear tire18.4/15-38Reference
Ag front11.00-16 (2WD)Reference
Ag front14.9/13-28 (4WD)Reference
Ag rear18.4/15-38Reference
Length485 cmReference
Width208 cmReference
Ground clearance41 cmReference
2WD ROPS5894 kgReference
2WD cab6166 kgReference
4WD ROPS6441 kgReference
4WD cab6713 kgReference
Ford 8830 attachments
front-end loaderReference
8830 Serial Numbers
Location:Tractor's rear axle.Reference
1990A925439Reference
1991A928924Reference
1992A930626Reference
1993A931957Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Ford 8830 Height
ROPS292 cmReference
Cab289 cmReference
Exhaust316 cmReference
Speeds
18.4/15-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
