Tractor · 1970Unverified

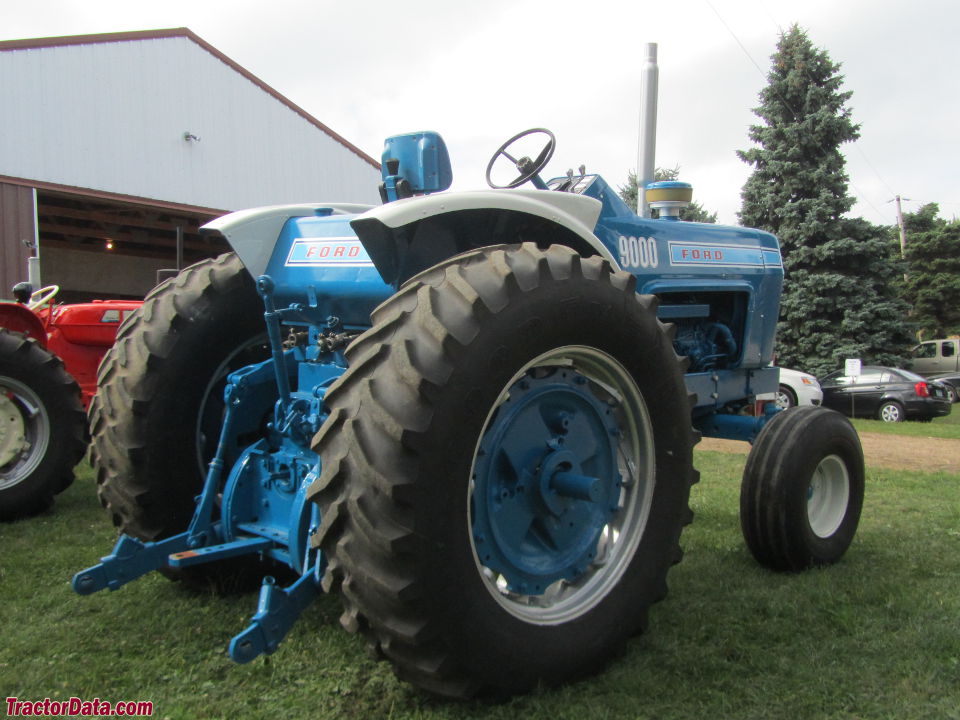

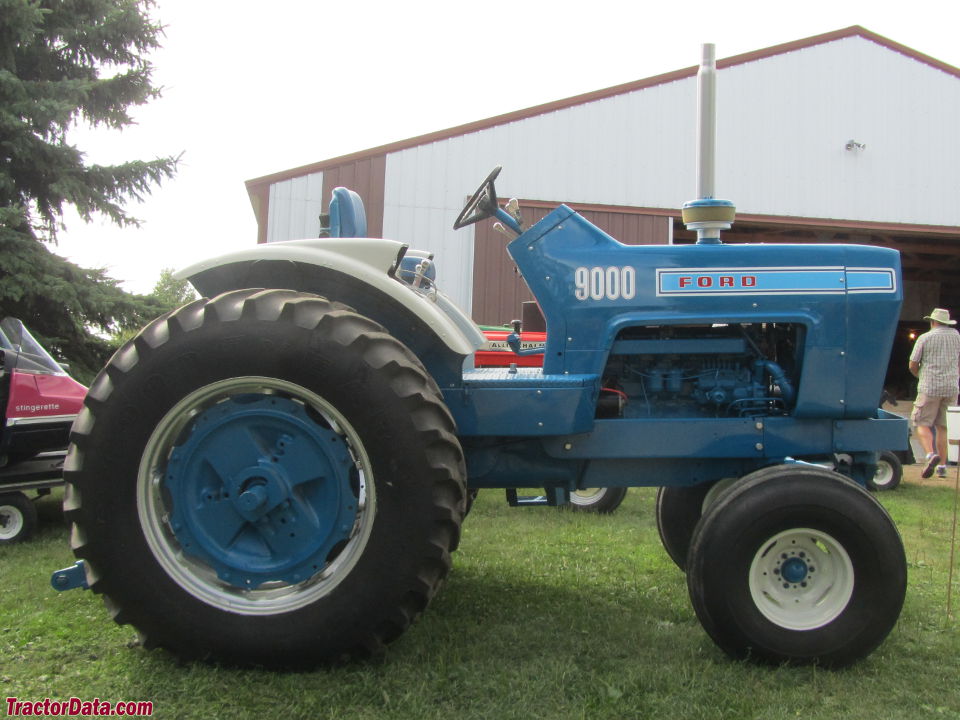

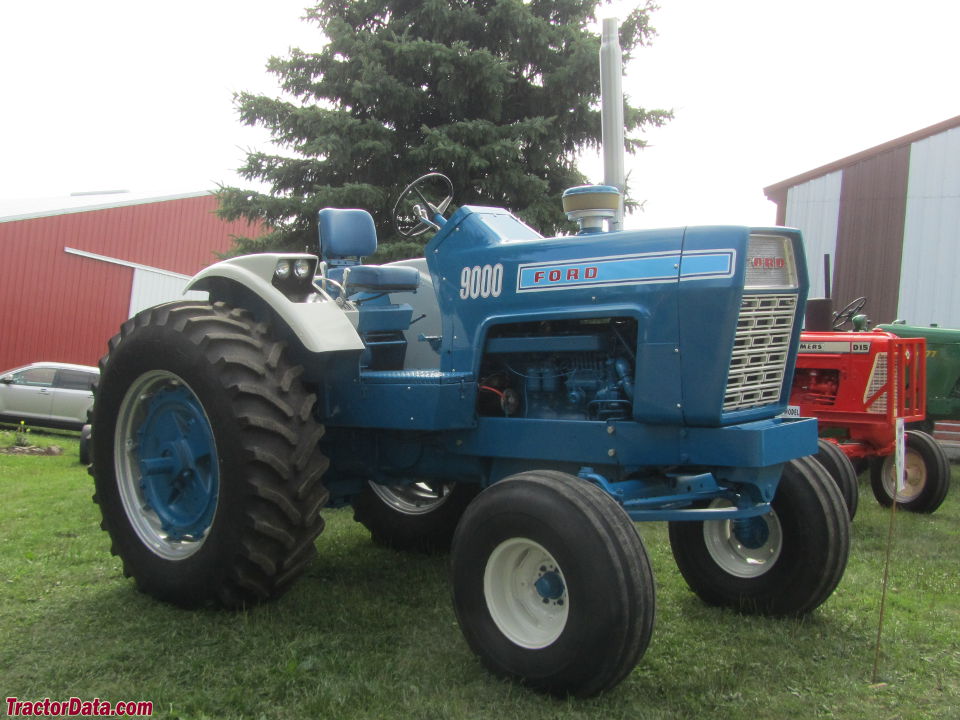

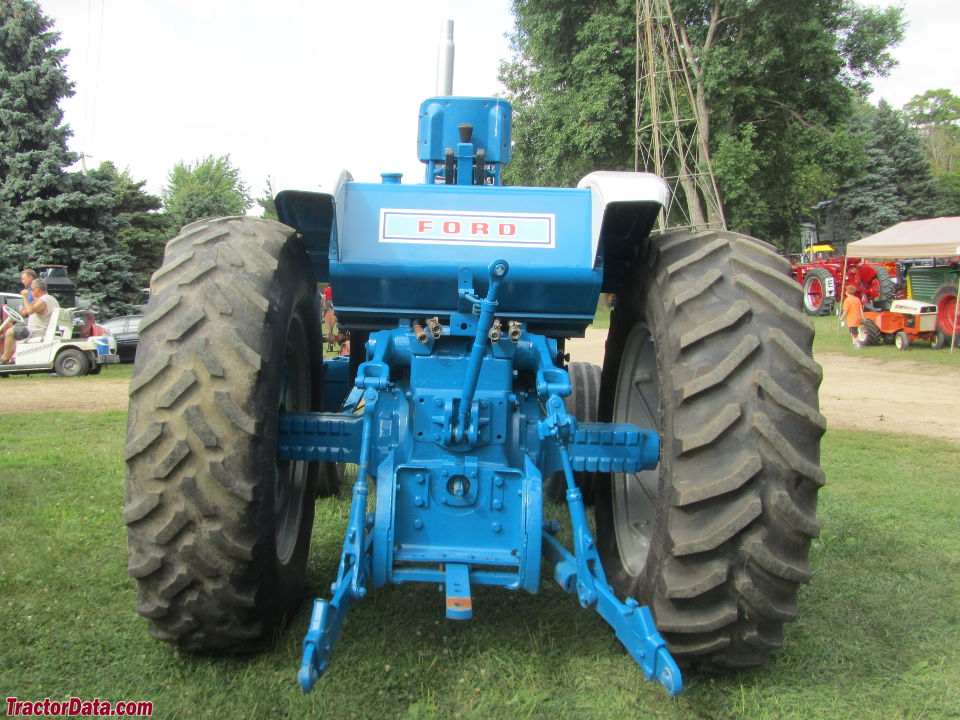

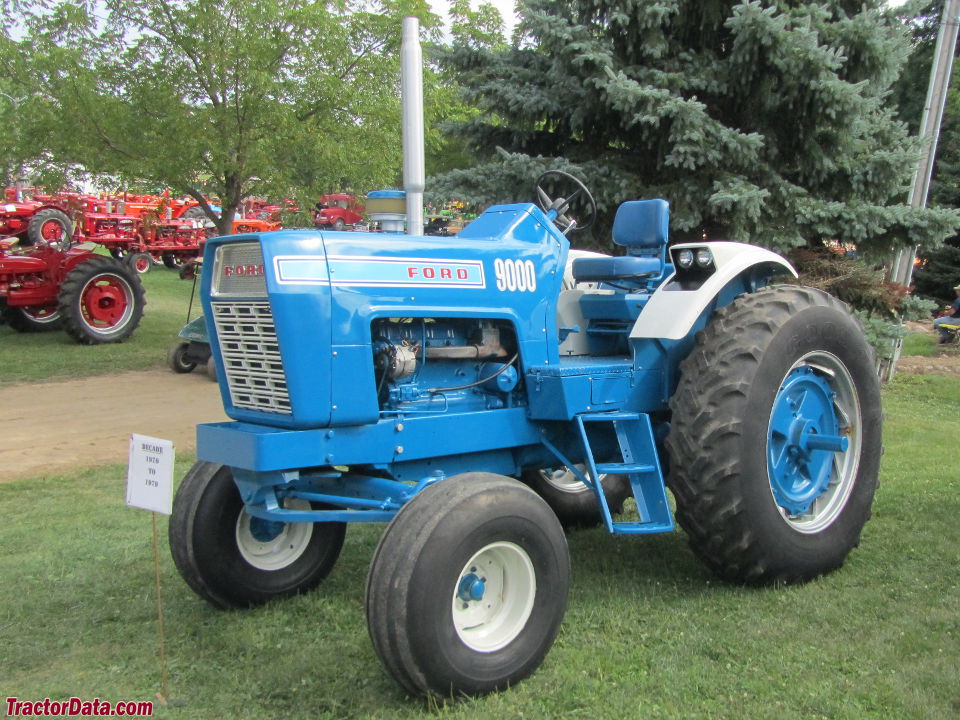

Ford 9000
Ford 9000 — Row-Crop tractor · 131 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
131 hp
Max power
82.3 kW
Weight
9800 to 10320 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Highland Park, Michigan, USAReference
Original price$11,600Reference
Two-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Open operator station. Cab optionalReference
Variants
9100all-purposeReference
9200row-cropReference
Engine
Ford 6.6L 6-cyl dieselReference
Engine108.1 kWReference
Drawbar (tested)82.3 kWReference
FordReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power108.1 kWReference
Air cleanerdryReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque507.1 NmReference
Torque RPM1600Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity22.7 LReference
Coolant capacity24.1 LReference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity13.2 LReference
Power at rated engine speed97.9 kWReference
Max power82.3 kWReference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 2 reverseReference
Oil capacity60.6 LReference
Four gears with two ranges. The up-shift from 3-to-4 and 7-to-8 synchronized. Tractor must be stopped, and clutch used, for all other shifts.Reference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
Oil capacity65.3 LReference
Dual Power adds a power shift to the basic eight-speed transmission. Two foot buttons control the shift, the left button engages direct drive (normal) mode while the right "power drive" button provides the lower range. The power drive button must be down for stationary PTO work.Reference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
PTO (tested)97.9 kWReference
Hydraulic system60.6 LReference
Hydraulic system65.5 LReference
Typeopen centerReference
Capacity60.6 LReference
Capacity65.5 LReference
Pressure172.4 barReference
Pump flow60.6 lpmReference
Steering flow15.9 lpmReference
Steering cap.2.8 LReference
Steering press.103.4 barReference
Rear TypeIII/IIReference
Controlposition control and lower-link draft sensingReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed94.0 kWReference
Capacities
Fuel162.8 LReference
Steering2.8 LReference
Dimensions
All purpose Wheelbase232 cmReference
Row crop Wheelbase274 cmReference
Weight9800 to 10320 poundsReference
Front tire7.50-18Reference
Rear tire23.1-34Reference
All purpose Ag front7.50-18Reference
Row crop Ag front7.50-16Reference
All purpose Ag rear23.1-34Reference
Row crop Ag rear18.4-34Reference
Ag front11.00-16Reference
Ag rear18.4-34Reference
Ag rear18.4-38Reference
Ag rear24.5-32Reference
Ag rear16.9-38Reference
All purpose Length383 cmReference
Row crop Length401 cmReference
All purpose Width231 cmReference
Row crop Width209 cmReference
All purpose Weight4445 kgReference
Row crop Weight4681 kgReference
Clearance (front axle)64 cmReference
All purpose Clearance (rear axle)73 cmReference
Row crop Clearance (rear axle)67 cmReference
Bar rear axle2133 mmReference
Bar rear axle2540 mmReference
Front tread142 to 213 cmReference
Rear tread172 to 228 cmReference
Ford 9000 attachments
front-end loaderReference
9000 Serial Numbers
1970C257600Reference
1971C292100Reference
1972C327200Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 773 loaderReference
Ford 774 loaderReference
Ford 9000 Height
All purpose Hood188 cmReference
Row crop Hood187 cmReference
All purpose Exhaust297 cmReference
Row crop Exhaust291 cmReference
Test results
Diesel Dual Power 2WDOctober 21 - 30, 1969Link: Nebraska Tractor Test 1027 fileReference
PTO performanceReference
Fuel use30.3 l/hourReference
Fuel use27.6 l/hourReference
Drawbar performanceReference
Gear 5PD used for power test.Reference
Max pull6341 kgReference
Gear 3PD used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
