Tractor · 1990Unverified

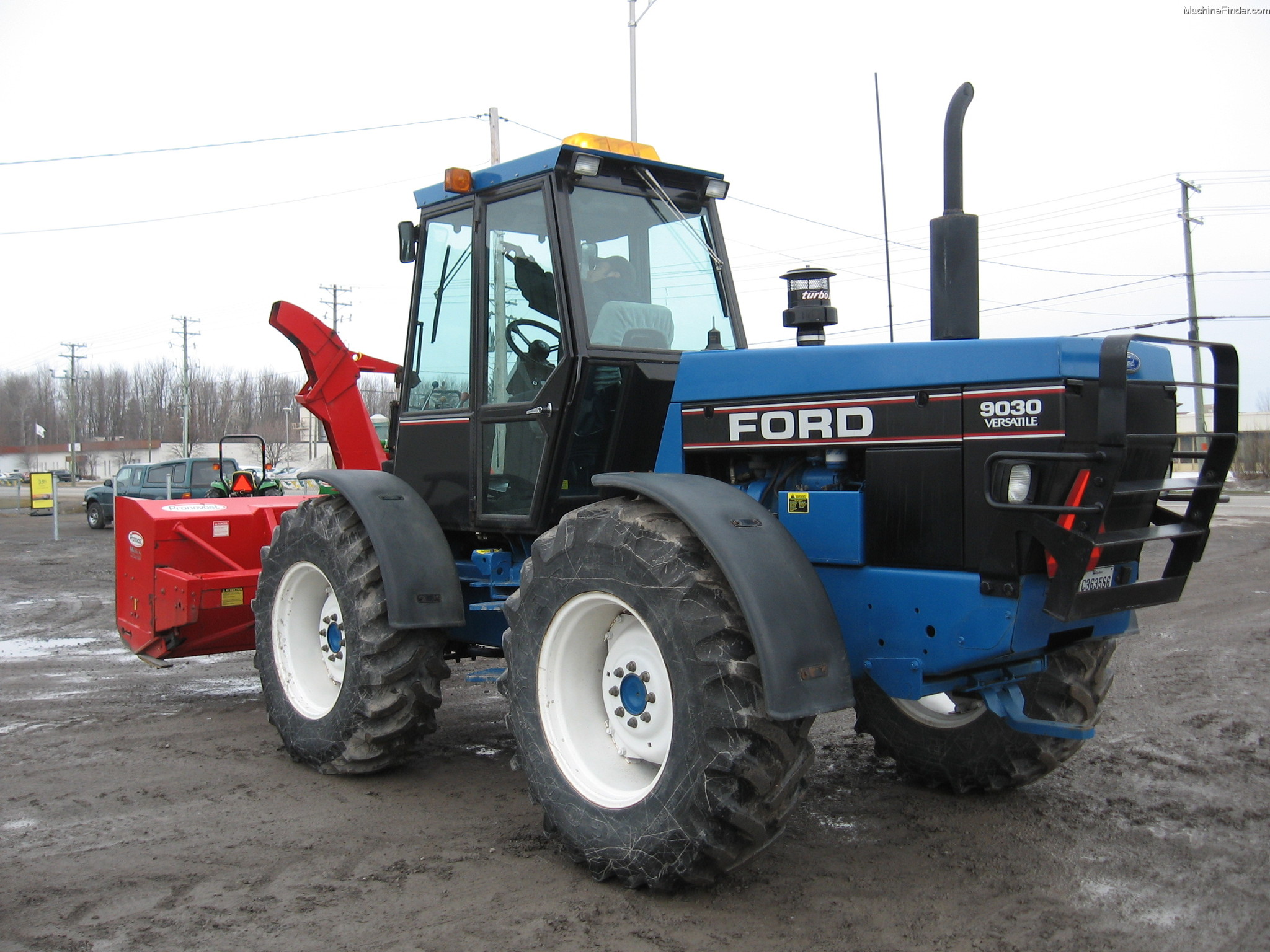

Ford 9030
Ford 9030 — Versatile built · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
4604 kg
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerVersatileReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesspur gearReference
Articulated power steeringReference
Disc brakesReference
Cab with air-conditioning. Console rotates 180-degrees.Reference
Variants
9030similar Buhler Versatile modelReference
Engine
Ford 4.4L 4-cyl dieselReference
Engine86.5 kWReference
Drawbar (claimed)53.3 kWReference
Ford BSD444TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power86.5 kWReference
Air cleanerdryReference
Compression17.1:1Reference
Rated RPM2500Reference
Idle RPM1000-2725Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity14.2 LReference
Coolant capacity24.2 LReference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
hydrostaticReference
ManufacturerEatonReference
TypehydrostaticReference
Gearsinfnite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)76.1 kWReference
Hydraulic system39.7 LReference
Typeclosed-center load-sensingReference
Capacity39.7 LReference
Pump flow90.8 lpmReference
Steering flow22.7 lpmReference
Steering press.172.4 barReference
Rear TypeII/IReference
Controlposition controlReference
Rear lift (at 24"/610mm)2948 kgReference
Front HitchII/IReference
Front lift1360 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel170.3 LReference
Dimensions
Wheelbase203 cmReference
Weight4604 kgReference
Front tire16.9x28Reference
Rear tire16.9x28Reference
Ag front16.9x28Reference
Ag rear16.9x28Reference
Ag front14.9x28Reference
Ag rear14.9x28Reference
Length457 cmReference
Length492 cmReference
Width206 cmReference
Shipping weight4604 kgReference
Max weight7257 kgReference
Ground clearance41 cmReference
9030 Serial Numbers
Location:Inside cab, left-hand side, up from bottom of window frame. Also stamped near articulating point on lower frame.Reference
1991470100Reference
1992487501Reference
1993932000Reference
1994200000Reference
1995201023Reference
1996201894Reference
1997202423Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Batteries2Reference
Battery CCA625Reference
Battery volts12Reference
Battery Group31Reference
Ford 9030 Height
Hood187 cmReference
Cab290 cmReference
Exhaust297 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
