Tractor · 1972Unverified

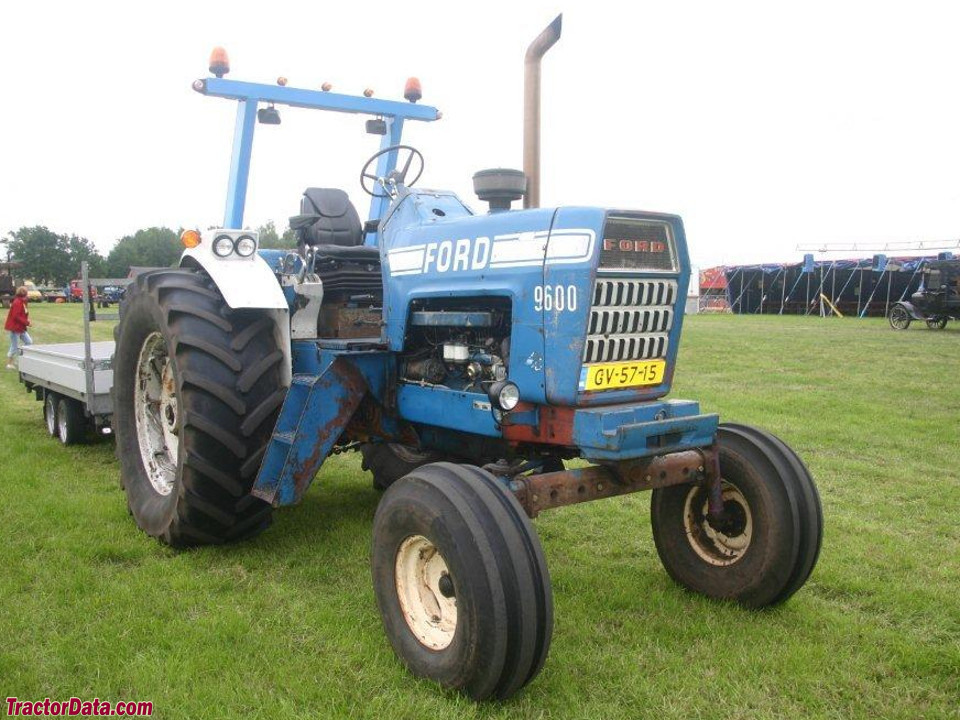

Ford 9600
Ford 9600 — Row-Crop tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Max power
83.1 kW
Weight
5379 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Romeo, Michigan, USAReference
Original price was $17,300 in 1976Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Open operator station. Cab optional.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Drawbar (tested)83.1 kWReference
FordReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Air cleanerpaper elementReference
Compression16.5:1Reference
Rated RPM2200Reference
Idle RPM700-2470Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity22.7 LReference
Coolant capacity24.1 LReference
Coolant change1200 hReference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity13.2 LReference
Oil change100 hReference
Power at rated engine speed101.0 kWReference
Max power83.1 kWReference
Transmission
16-speed partial power shiftReference
8-speedReference
TransmissionFord Dual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
Oil capacity65.3 LReference
Dual Power adds hydraulically shifted underdrive to the basic eight-speed transmission. Two foot buttons are used to select "power drive" or direct drive. Tractor must be in power drive for stationary PTO work.Reference
Gears8 forward and 2 reverseReference
Oil capacity60.6 LReference
Syncrhonized upshift from 3-to-4 and 7-to-8 using the clutch. Tractor must be stopped for all other shifts.Reference
PTO & Hydraulics
PTO (tested)101.0 kWReference
Hydraulic system60.6 LReference
Hydraulic system65.3 LReference
Capacity60.6 LReference
Capacity65.3 LReference
Pressure172.4 barReference
Pump flow60.6 lpmReference
Steering flow15.9 lpmReference
Steering cap.2.8 LReference
Steering press.103.4 barReference
Rear TypeIII/IIReference
Rear lift8164 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@1935Reference
Power at rated PTO speed95.8 kWReference
Capacities
Fuel162.8 LReference
Steering2.8 LReference
Dimensions
Wheelbase232 cmReference
Wheelbase274 cmReference
Weight5379 kgReference
Front tire7.50-18Reference
Rear tire23.1-34Reference
Ag front7.50-18Reference
Ag front7.50-16 (row-crop)Reference
Ag rear23.1-34Reference
Ag rear18.4-34 (row-crop)Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Ag rear24.5-32Reference
Ag rear16.9-38Reference
Length383 cmReference
Length401 cmReference
Width231 cmReference
Width213 cmReference
Operating weight5379 kgReference
Ballasted weight8164 kgReference
Clearance (front axle)64 cmReference
Clearance (rear axle)73 cmReference
Clearance (rear axle)67 cmReference
9600 Serial Numbers
1972C327200Reference
1973C367300Reference
1974C405200Reference
1975C450700Reference
1976C490300Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH128Reference
Ford 9600 Height
Hood188 cmReference
Hood187 cmReference
Exhaust297 cmReference
Exhaust291 cmReference
Test results
Diesel Dual Power 2WDApril 2 - 17, 1973Link: Nebraska Tractor Test 1122 fileReference
PTO performanceReference
Fuel use31.8 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Gear 8 used for power test.Reference
Max pull5535 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
