Tractor · 1986Unverified

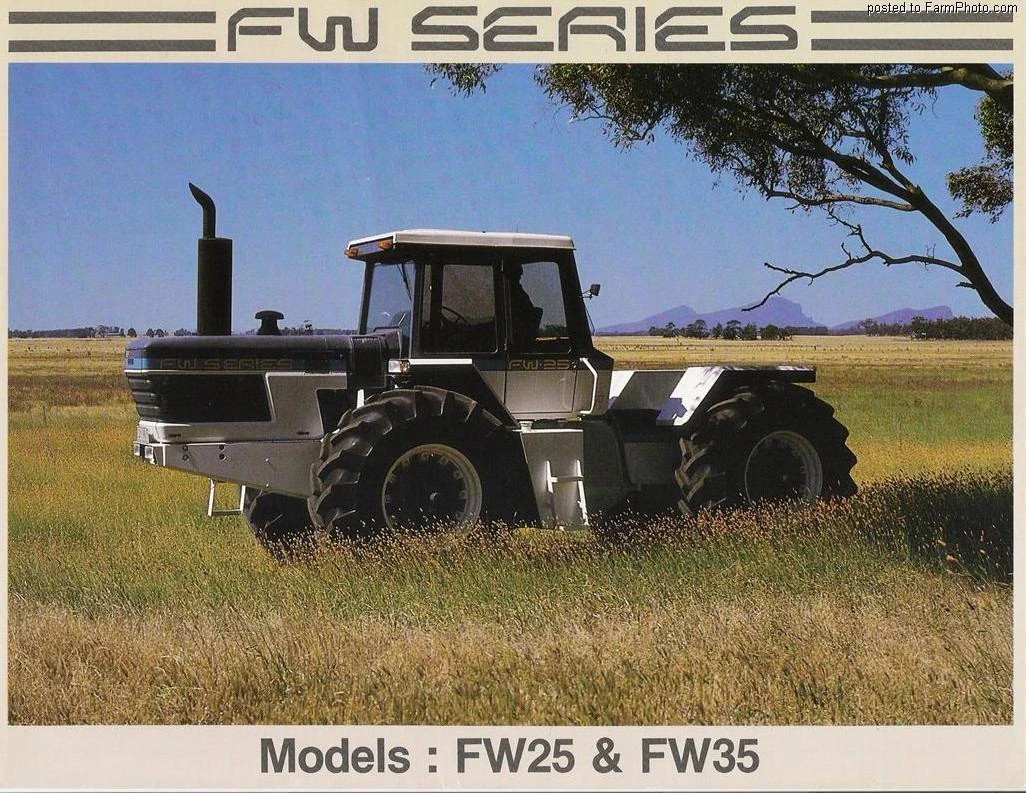

Ford FW-25
Ford FW-25 — Four-wheel Drive (4WD) tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
9200 kg
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerWaltannaReference
Four-wheel Drive (4WD) tractorReference
Built in Tarrington, Victoria, AustraliaReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Fuel tank495.1 LReference
Engine121.5 kWReference
FordReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power121.5 kWReference
Rated RPM2200Reference
Torque584.4 NmReference
Torque RPM1600Reference
Starter typeelectricReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)101.0 kWReference
Typeclosed center load sensingReference
Pressure172.4 barReference
Valves3Reference
Pump flow57.9 lpmReference
Pump flow75.7 lpmReference
Rear TypeIIIReference
Rear lift6860 kgReference
Rear PTO Type540/1000Reference
Engine RPM540@1875Reference
Engine RPM1000@1920Reference
Dimensions
Wheelbase342 cmReference
Weight9200 kgReference
Front tire23.1x34Reference
Rear tire23.1x34Reference
Ag front23.1x34Reference
Ag rear23.1x34Reference
Length660 cmReference
Width264 cmReference
Height (exhaust)339 cmReference
Front tread157 to 274 cmReference
Rear tread157 to 274 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
