Tractor · 1953Unverified

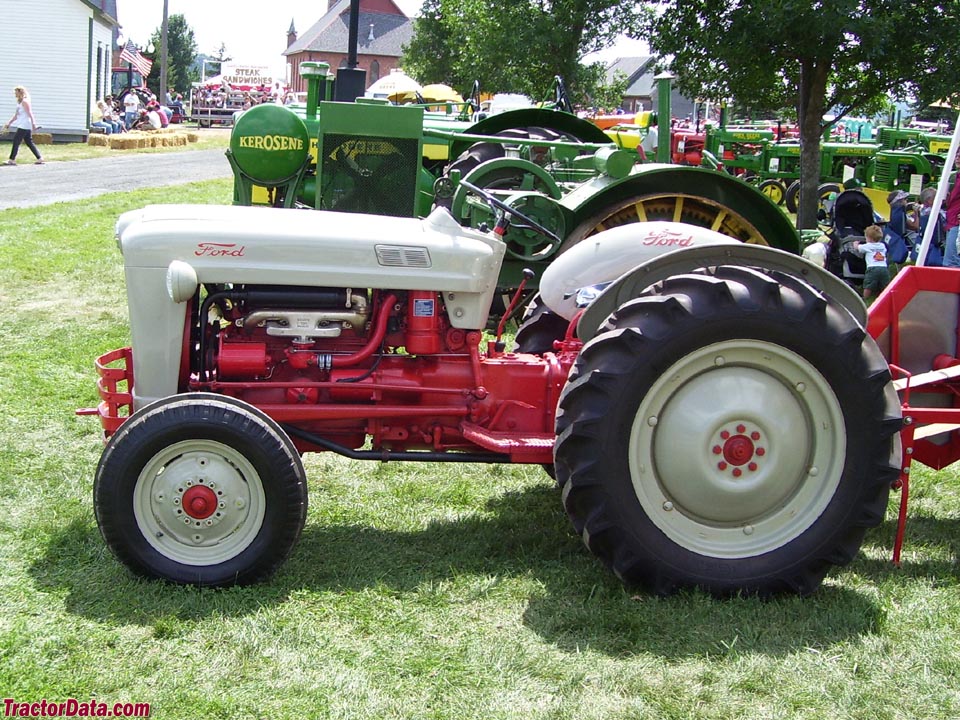

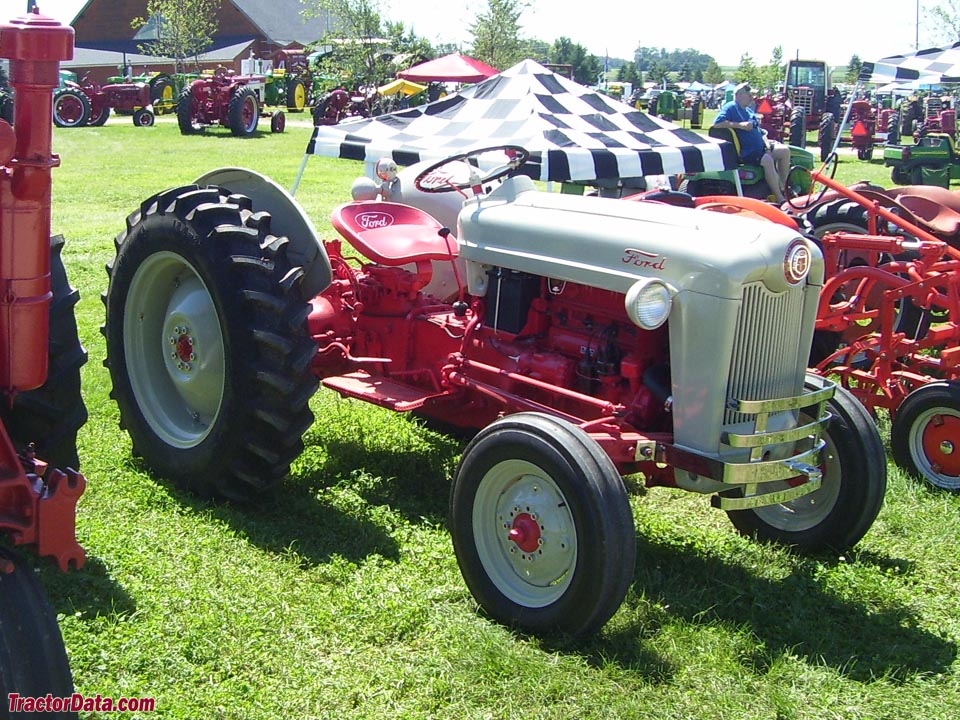

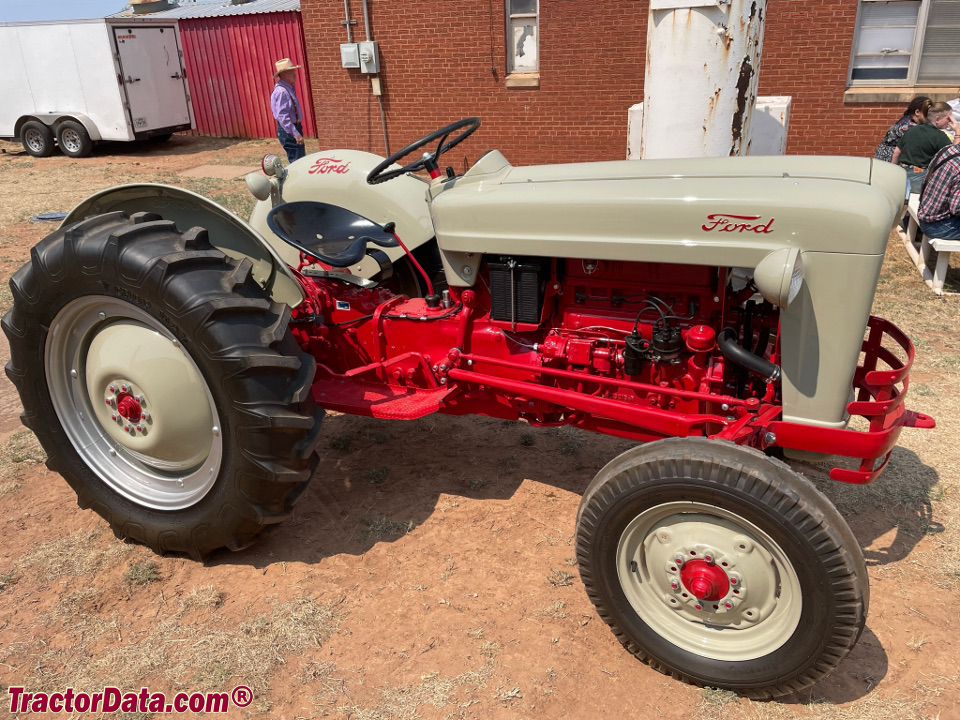

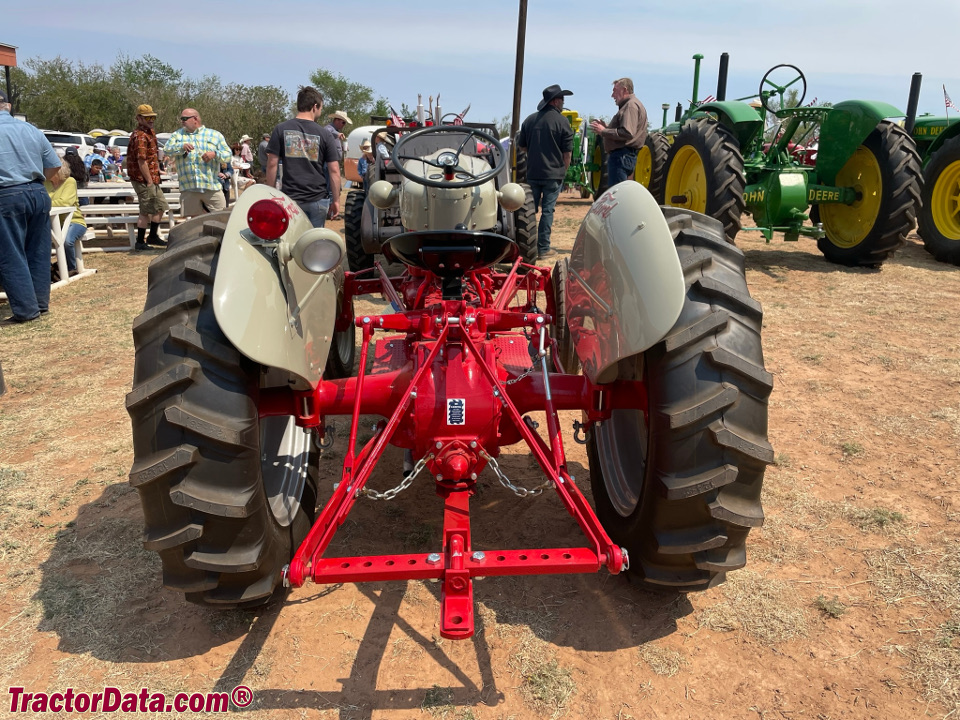

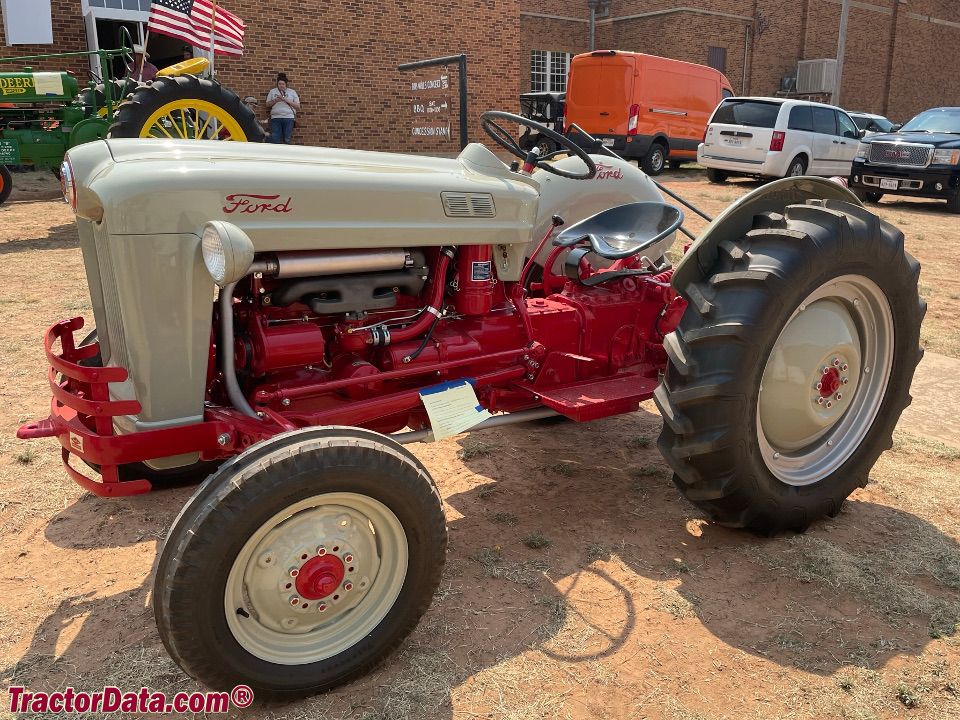

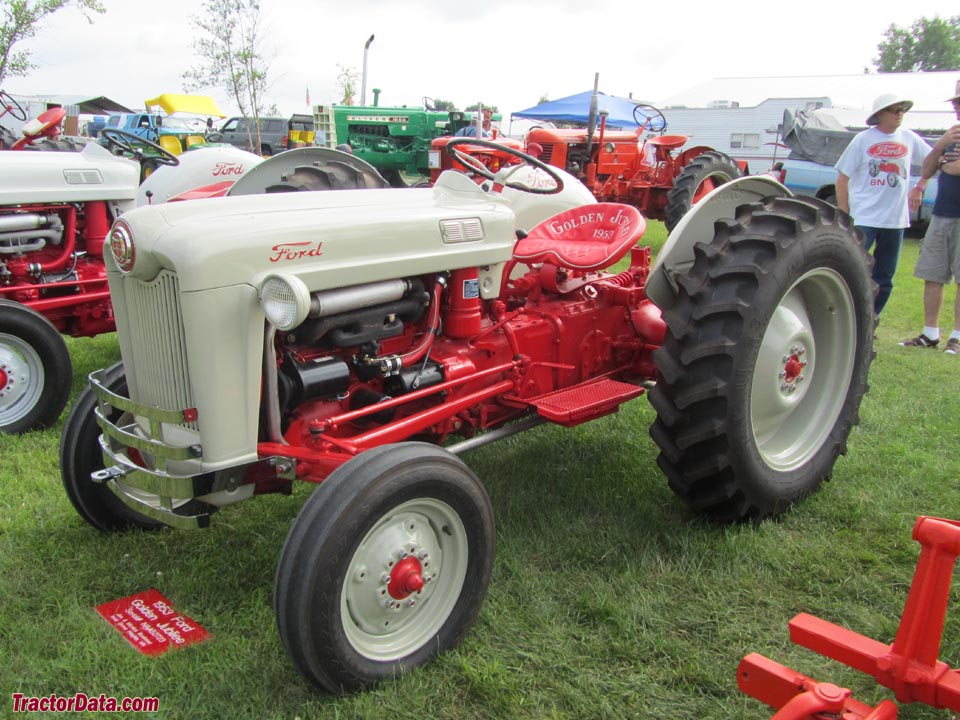

Ford Golden Jubilee NAA
Ford Golden Jubilee NAA — Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Max power
20.0 kW
Weight
2550 to 2814 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Built in Highland Park, Michigan, USAReference
Total built128,965Reference
Original price was $1,560 in 1954Reference

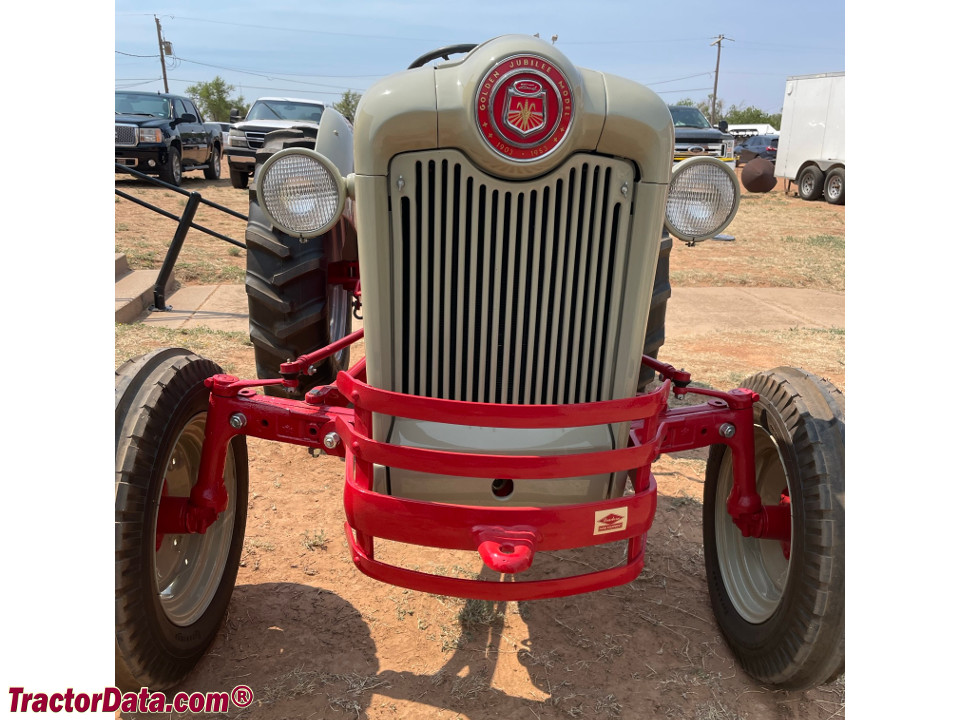

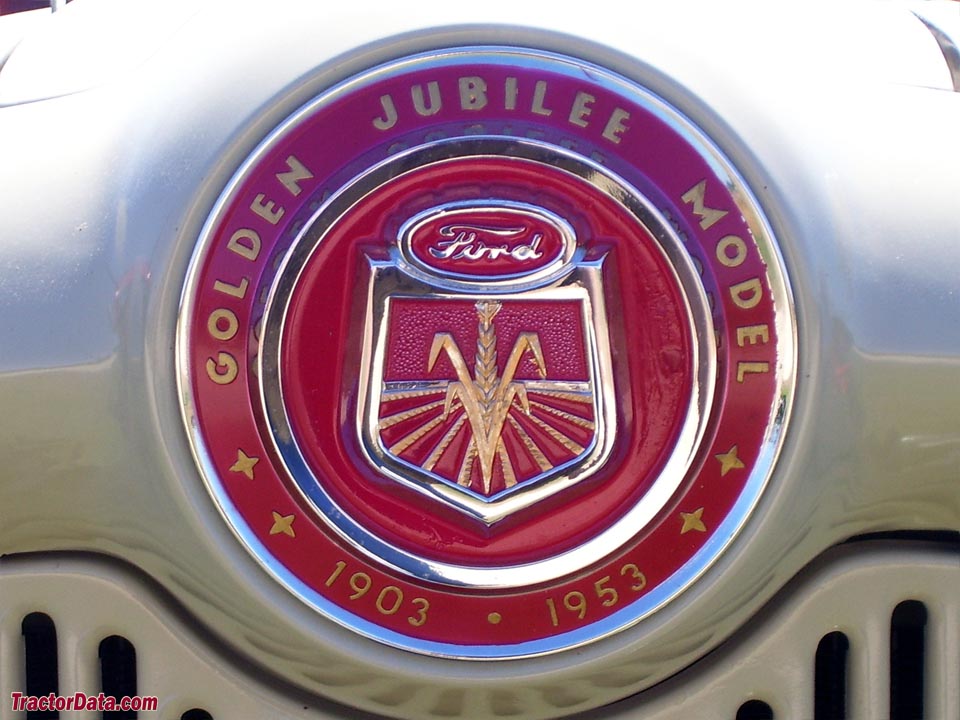

The Ford NAA "Golden Jubilee" was released as part of the 50th anniversary of Ford. The 1953 model (production began in September 1952) had a special nose badge noting the anniversary.Reference
Two-wheel driveReference
Manual steeringReference
Differential mechanical drum brakesReference
Open operator stationReference
Engine
Ford 2.2L 4-cyl gasolineReference
Drawbar (claimed)15.1 kWReference
Plows2Reference
Drawbar (tested)20.0 kWReference
Belt (tested)23.2 kWReference
FordReference
gasolineReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 91 mmReference
Compression6.6:1Reference
Rated RPM2000Reference
Idle RPM450-2000Reference
Operating RPM1500-2000Reference
Torque149.2 NmReference
Torque RPM1400Reference
Firing order1-2-4-3Reference
Starter volts6Reference
Coolant capacity14.2 LReference
SparkplugH-10 14mmReference
Sparkplug gap0.635 mmReference
Point gap0.635 mmReference
Oil capacity4.7 LReference
Belt power (max)23.2 kWReference
Max power20.0 kWReference
Transmission
4-speed gearReference
TransmissionFordReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchdry discReference
Oil capacity4.7 LReference
Oil type[0oC]Reference
32oF [0oC]↑: SAE90Reference
32oF [0oC]↓: SAE80Reference
Tractor must be stopped, and clutch used, to shift gears.Reference
PTO & Hydraulics
PTO (claimed)22.5 kWReference
Hydraulic system7.6 LReference
TypeliveReference
Capacity7.6 LReference
Pressure137.9 barReference
Pump flow18.2 lpmReference
Oil type[0oC]Reference
32oF [0oC]↑: Type A Hydraulic OilReference
32oF [0oC]↓: Type C Hydraulic OilReference
Steering press.120.7 barReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift362 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.125)Reference
Engine RPM545@1500Reference
Capacities
Fuel41.6 LReference
Rear axle7.6 LReference
Diameter22 cmReference
RPM1358Reference
Speed975.06 meters/minReference
Dimensions
Wheelbase187 cmReference
Weight2550 to 2814 poundsReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag front6.00-16Reference
Ag rear10-28Reference
Length301 cmReference
Width164 cmReference
Height145 cmReference
Ground clearance33 cmReference
Clearance (front axle)53 cmReference
Clearance (rear axle)53 cmReference
Front tread121 to 193 cmReference
Rear tread121 to 193 cmReference
Shipping1156 kgReference
Operating1276 kgReference
Ballasted1992 kgReference
NAA Serial Number Location
Front of engine block (early) or left side of transmission case (later).Reference
NAA Serial Numbers
1952NAA 1Reference
1953NAA 4930Reference
1954NAA 77478Reference
FinalNAA 128965Reference
FAQ: How to read a serial number table.Reference
Links
N Tractor Club:Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Charging amps20Reference
Battery volts6Reference
Test results
Gasoline 5-speed 2WDMay 22 - June 1, 1953Link: Nebraska Tractor Test 494 fileReference
Belt fuel use (max)11.0 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1466 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
