Lawn Tractor · 1984Unverified

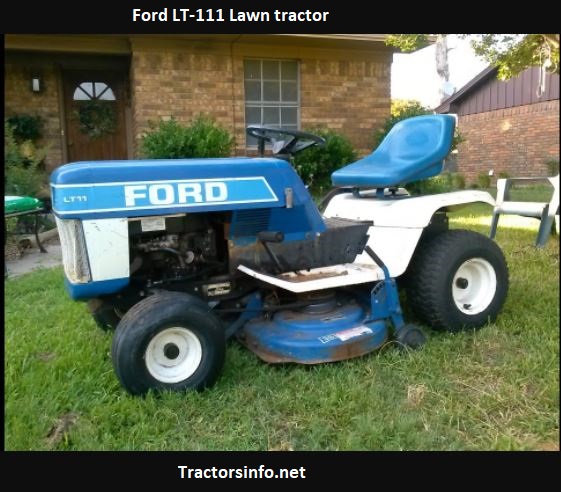

Ford LT-11
Ford LT-11 — LT Series · 11 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
244 kg
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerGilsonReference
Lawn tractorReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Variants
LT-11gearReference
LT-11HhydrostaticReference
Engine
11HP Briggs & Stratton 399cc 1-cyl gasolineReference
Fuel tank6.8 LReference
Briggs & Stratton 252707Reference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement24.36 ciReference
Bore/Stroke87 x 67 mmReference
Power8.2 kWReference
Starter volts12Reference
Oil capacity2.1 LReference
Transmission
5-speed gearReference
Typebelt-driven gearReference
Gears5 forward and 1 reverseReference
Dimensions
Wheelbase124 cmReference
Weight244 kgReference
Front tire15x6.00-6Reference
Rear tire18x8.50-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear18x8.50-8Reference
Length173 cmReference
Width88 cmReference
Height (steering wheel)91 cmReference
Ford LT-11 attachments
38" mid-mount mower deckReference
snowblowerReference
bladeReference
LT-11 Serial Number Location
Serial number tag on the left side of the Ford LT-11 tractor frame, behind the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
38" mid-mount mower deckReference
SnowblowerReference
BladeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
