Tractor · 1983Unverified

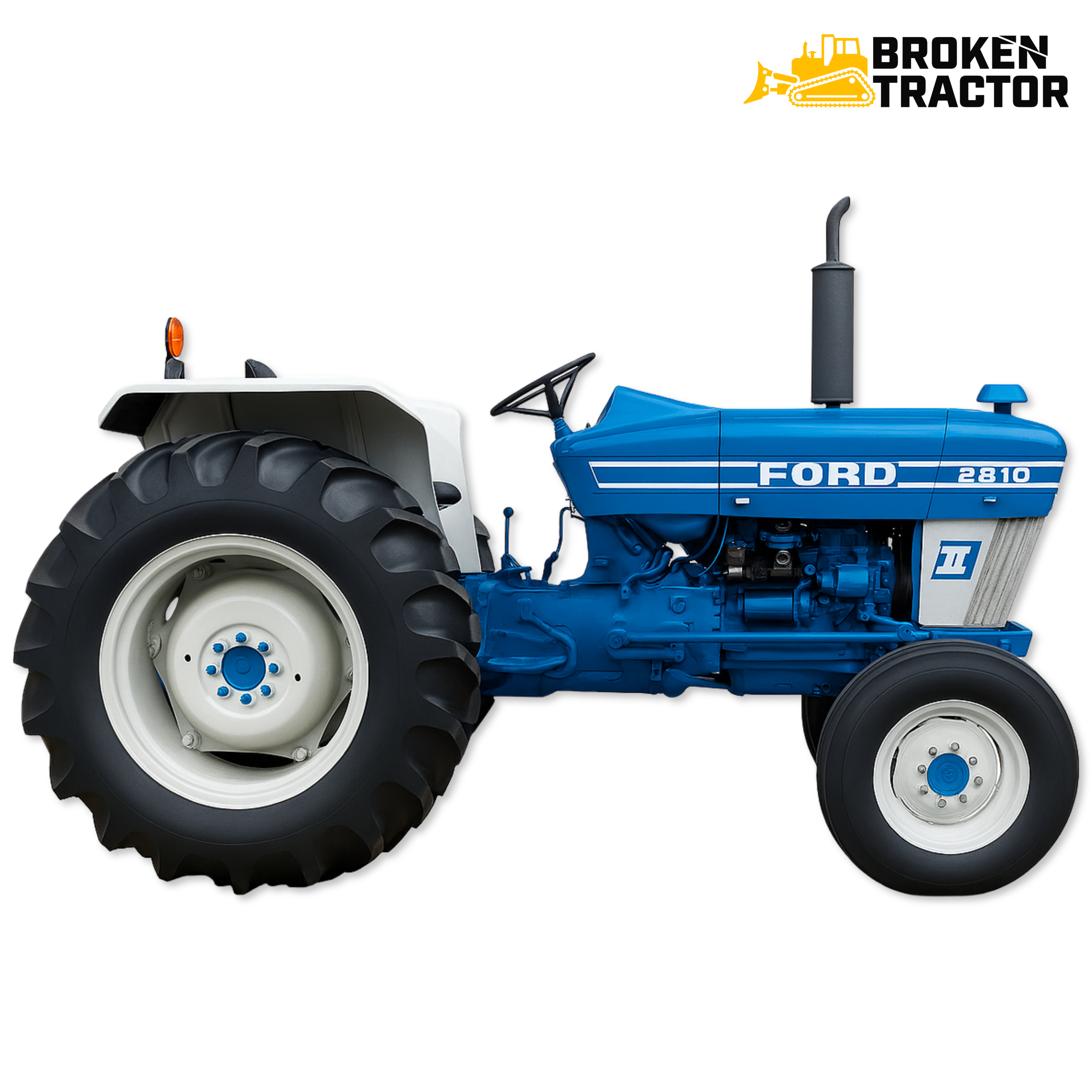

Ford-New Holland 2810

Name: Ford-New Holland 2810
Brand: Ford-New Holland

Ford-New Holland 2810 — Utility tractor · 37 hp. Reference specifications; pending source verification.

The Ford-New Holland 2810 is a compact tractor model, rated at 37 hp, which falls within a lower power bracket of its class. Manufactured from 1983 to 1990, this tractor features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. Its listed weight ranges from 4420 to 4995 pounds, and it is designed for tasks involving areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Max power

21.0 kW

Weight

4420 to 4995 pounds

Catalogue coverage

Variants represented

Richest spec table

110 rows

Recorded power

37 hp

Recorded weight

2004 kg

Transmissions

8-speed

Production years

1983-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFord-New HollandReference

Utility tractorReference

Original price was $16,000 in 1990Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

SteeringmanualReference

Steeringpower assistReference

Differential wet disc brakesReference

Two-post fixed ROPS.Reference

Engine

Ford 2.6L 3-cyl dieselReference

Engine (gross)27.2 kWReference

Engine25.6 kWReference

Drawbar (tested)21.0 kWReference

FordReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.6 LReference

Bore/Stroke107 x 97 mmReference

Power25.6 kWReference

Power (gross)27.2 kWReference

Air cleanerdual paper elementsReference

Compression17.3:1Reference

Rated RPM2000Reference

Torque137.0 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity6.6 LReference

Coolant capacity10.4 LReference

Power at rated engine speed24.5 kWReference

Max power21.0 kWReference

Transmission

8-speedReference

6-speed mechanical shuttleReference

TransmissionDual RangeReference

Gears8 forward and 2 reverseReference

Clutch330mm dry discReference

Oil capacity12.0 LReference

Typemechanical shuttleReference

Gears6 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)23.9 kWReference

PTO (tested)24.5 kWReference

Hydraulic system45.8 LReference

Typeopen centerReference

Capacity45.8 LReference

Pressure172.4 barReference

Pump flow29.1 lpmReference

Steering cap.3.4 LReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift1331 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@1800Reference

Power at rated PTO speed23.7 kWReference

Capacities

2WD Fuel49.2 LReference

4WD Fuel60.6 LReference

Steering3.4 LReference

Dimensions

2WD Wheelbase196 cmReference

4WD Wheelbase213 cmReference

Weight4420 to 4995 poundsReference

Front tire6.00-16Reference

2WD Rear tire13.6-28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference

4WD Standard tires (ag)Front: 8.3-24. Rear: 13.6-28Reference

Length323 cmReference

Width173 cmReference

2WD Operating weight2004 kgReference

4WD Operating weight2265 kgReference

2WD Clearance (front axle)54 cmReference

4WD Clearance (front axle)33 cmReference

Clearance (rear axle)52 cmReference

2WD Front tread132 to 203 cmReference

4WD Front tread142 to 182 cmReference

Rear tread142 to 203 cmReference

Ford-New Holland 2810 attachments

front-end loaderReference

2810 Serial Numbers

Location:Identification plate inside the engine compartmentReference

1983C694500Reference

1984C707400Reference

1985C732600Reference

1986C750422Reference

1987C763228Reference

1986BA74292Reference

1987BB05681Reference

1988BB31777Reference

1989BB80620Reference

1990BC26239Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Mk I Charging amps32Reference

Mk II Charging amps51Reference

Battery volts12Reference

Battery AH51Reference

Attachment overview

Ford 776A loaderReference

Ford 776B loaderReference

Ford 776F loaderReference

Ford 7309 loaderReference

Ford-New Holland 2810 Height

Hood149 cmReference

ROPS237 cmReference

Exhaust206 cmReference

Test results

Diesel 8-speed 2WDSeptember 6 - 11, 1985Link: Nebraska Tractor Test 1573 fileReference

PTO performanceReference

Fuel use8.3 l/hourReference

Fuel use7.9 l/hourReference

Drawbar performanceReference

Gear 5 used for power test.Reference

Max pull1830 kgReference

Gear 2 used for pull test.Reference

Speeds

With 13.6x28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
