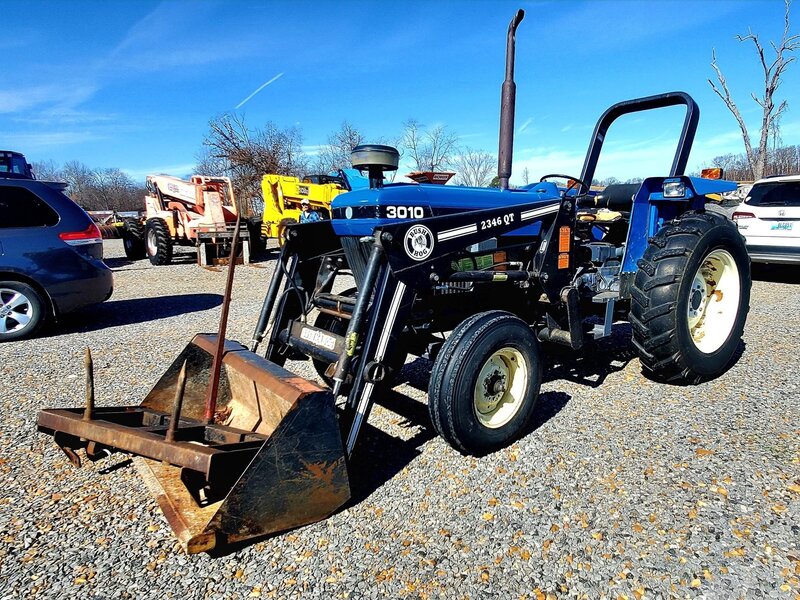

The Ford-New Holland 3010S tractor is a model rated at approximately 42 hp, positioning it at the lower end of its class. It was manufactured from 1996 to 2000. This model features a 3-cylinder diesel engine and mechanical front-wheel drive, coupled with an 8-speed gearbox. The tractor's operating weight is listed at 2248 kg and is suited for use on areas up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2248 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
42 hp
Recorded weight
2248 kg
Transmissions
8-speed
Production years
1996-2000
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFord-New HollandReference
Original price$18,200 (2000)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
ROPSReference
Engine
2.7L 3-cyl dieselReference
Fuel tank56.8 LReference
dieselReference
3-cylinderReference
Displacement2.7 LReference
Compression17:1Reference
Rated RPM2500Reference
Firing order1-2-3Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
TypeopenReference
Valves1Reference
Pump flow34.1 lpmReference
Rear TypeIIReference
Rear lift1744 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase200 cmReference
Weight2248 kgReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
