Tractor · Unverified
Ford-New Holland 3910
Ford-New Holland 3910 — Utility tractor · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Max power
26.6 kW
Weight
4615 to 5082 pounds
Hover a source tag to verify
Overview
ManufacturerFord-New HollandReference
Utility tractorReference
Original price was $16,200 in 1989Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Steeringpower assistReference
Differential wet disc brakesReference
Two-post fixed ROPS. Cab optional.Reference
Engine
Ford 3.1L 3-cyl dieselReference
Engine (gross)37.3 kWReference
Engine35.4 kWReference
Drawbar (tested)26.6 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke112 x 107 mmReference
Power35.4 kWReference
Power (gross)37.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.3:1Reference
Rated RPM2200Reference
Torque187.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Power at rated engine speed31.8 kWReference
Max power26.6 kWReference
Power at rated engine speed31.8 kWReference
Max power26.1 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
6-speed mechanical shuttleReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
Oil capacity12.0 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity9.4 LReference
Typemechanical shuttleReference
Gears6 forward and 4 reverseReference
Six-speed transmission became available on the 3910 II in 1986.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
PTO (tested)31.8 kWReference
Hydraulic system45.8 LReference
Typeopen centerReference
Capacity45.8 LReference
Pressure172.4 barReference
Valves1Reference
Pump flow29.1 lpmReference
Pump flow48.4 lpmReference
Steering cap.3.4 LReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed30.1 kWReference
Power at rated PTO speed30.7 kWReference
Capacities
Fuel49.2 LReference
Steering3.4 LReference
Dimensions
2WD Wheelbase196 cmReference
4WD Wheelbase213 cmReference
Weight4615 to 5082 poundsReference
Front tire7.50-15Reference
Rear tire13.6-28Reference
Ag front7.50-15 (2WD)Reference
Ag front8.3-24 (4WD)Reference
Ag rear13.6-28Reference
Ag front5.50-16 (2WD)Reference
Ag front6.00-16 (2WD)Reference
Ag front6.50-16 (2WD)Reference
Ag front7.50-16 (2WD)Reference
Ag front9.5-24 (4WD)Reference
Ag rear14.9-24Reference
Ag rear16.9-24Reference
Ag rear14.9-28Reference
Length323 cmReference
Width176 cmReference
2WD Clearance (front axle)54 cmReference
4WD Clearance (front axle)33 cmReference
Clearance (rear axle)54 cmReference
2WD Front tread132 to 203 cmReference
4WD Front tread142 to 182 cmReference
Rear tread142 to 203 cmReference
@WD Operating2093 kgReference
4WD Operating2305 kgReference
Ballasted3129 kgReference
Steering wheel149 cmReference

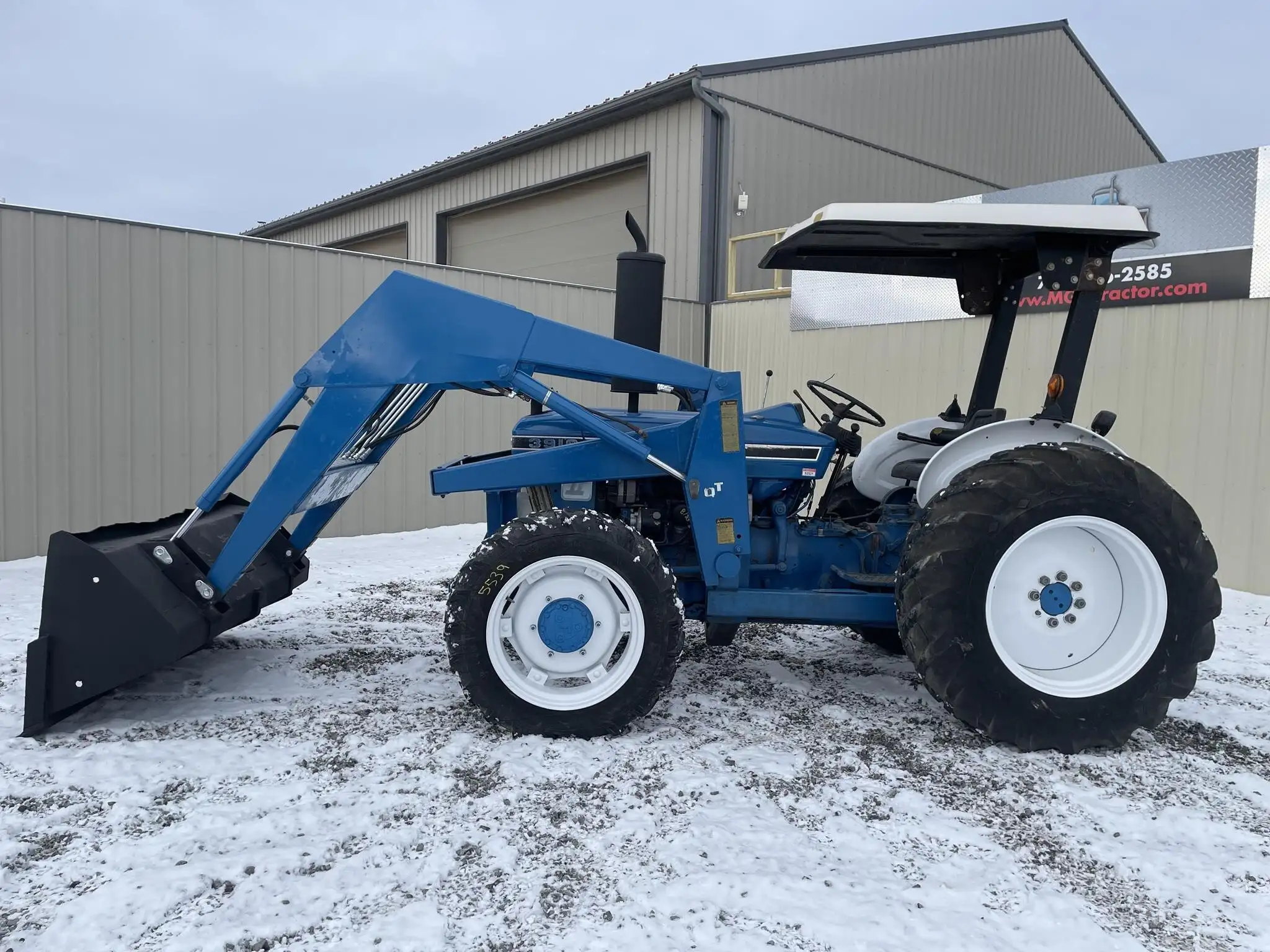

Ford-New Holland 3910 attachments
front-end loaderReference
3910 Serial Numbers
Location:Transmission cover, right-front.Reference
1982C681910Reference
1983C695880Reference
1984C713459Reference
1985C737800Reference
1986C754100Reference
1987C768000Reference
1986BA74292Reference
1987BB05681Reference
1988BB31777Reference
1989BB84620Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Mk I Charging amps32Reference
Mk II Charging amps51Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 776A loaderReference
Ford 776B loaderReference
Ford 7309 loaderReference
Ford 7310 loaderReference
Ford-New Holland 3910 Height
Hood133 cmReference
ROPS237 cmReference
Exhaust206 cmReference
Test results
NTTL 1493: diesel 8x2 2WDReference
NTTL 1494: diesel 8x4 2WDReference
Diesel 8x2 2WDSeptember 14 - 26, 1983Link: Nebraska Tractor Test 1493 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Fuel use9.5 l/hourReference
Drawbar performanceReference
Fuel use10.2 l/hourReference
Gear 5 used for power test.Reference
Diesel 8x4 2WDSeptember 14 - 26, 1983Link: Nebraska Tractor Test 1494 fileReference
Fuel use9.8 l/hourReference
Max pull2238 kgReference
Gear 2 used for pull test.Reference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
