Tractor · 1992Unverified

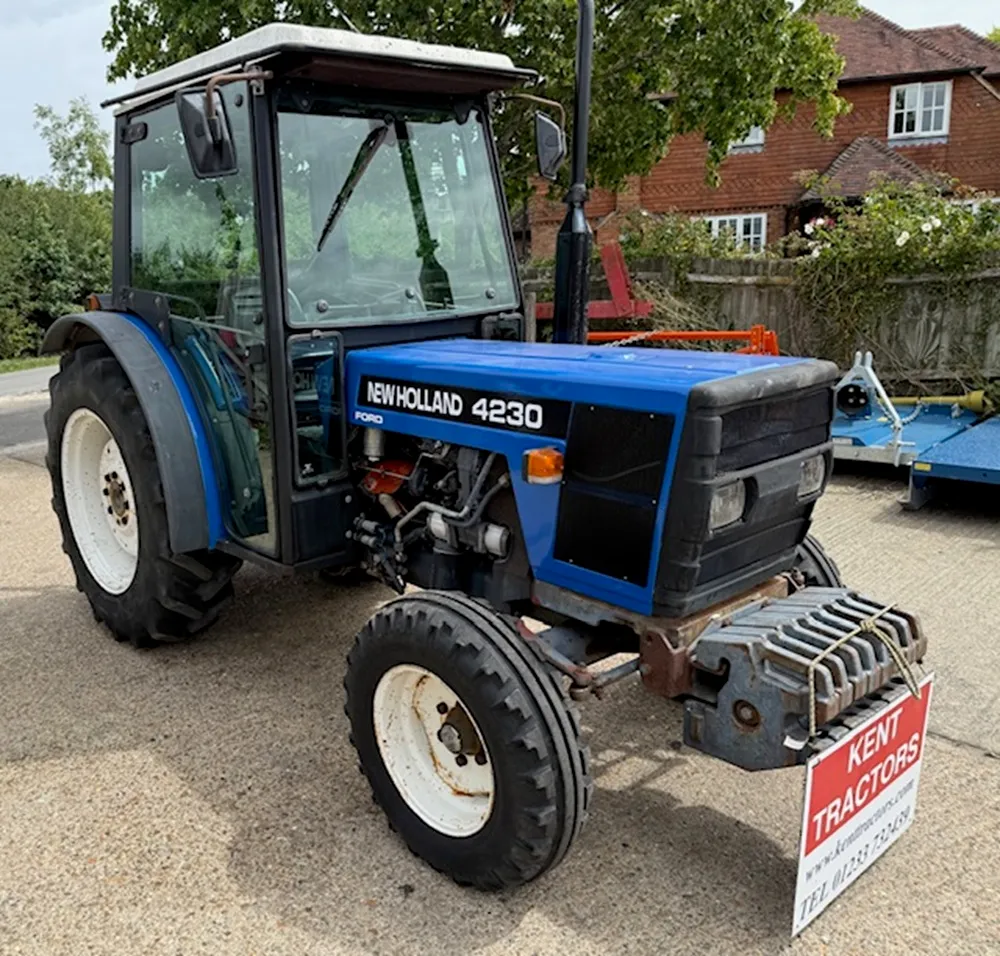

Ford-New Holland 4230
Ford-New Holland 4230 — Orchard/Vineyard tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
4871 to 5290 pounds
Hover a source tag to verify
Overview
DistributorFord-New HollandReference
ManufacturerFiatReference
Orchard/Vineyard tractorReference
Original price was $25,000 in 1997Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount ROPS. Cab optional with air-conditioning.Reference
Variants
4230NnarrowReference
Engine
Fiat 3.6L 4-cyl dieselReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Pre-heatingthermostartReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speed gearReference
12-speed shuttleReference
TypegearReference
Gears12 forward and 4 reverseReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
Hydraulic system42.8 LReference
Typeopen centerReference
Capacity42.8 LReference
Pressure188.9 barReference
Valves2 or 3Reference
Pump flow41.6 lpmReference
Steering flow30.7 lpmReference
Steering press.100.0 barReference
Rear TypeIIReference
Controlposition control and lower-link draft sensingReference
Rear lift2690 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel51.9 LReference
Dimensions
2WD Wheelbase200 cmReference
4WD Wheelbase211 cmReference
Weight4871 to 5290 poundsReference
Front tire27x9.50-15Reference
2WD Rear tire14.9x24Reference
2WD Standard tires (ag)Front: 27x9.50-15. Rear: 14.9x24Reference
4WD Standard tires (ag)Front: 9.5-16. Rear: 14.9x24Reference
2WD Length351 cmReference
4WD Length367 cmReference
2WD Width146 cmReference
4WD Width148 cmReference
2WD Weight2209 kgReference
4WD Weight2399 kgReference
4WD Clearance (front axle)39 cmReference
4WD Clearance (front axle)39 cmReference
2WD Front tread116 to 147 cmReference
4WD Front tread119 to 134 cmReference
Rear tread106 to 144 cmReference
2WD Steering wheel134 cmReference
4WD Steering wheel138 cmReference
4230 Serial Numbers
1992F622650Reference
1993F656580Reference
1994F021000Reference
19951069303Reference
19961078767Reference
19971106731Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps33Reference
Cab Charging amps65Reference
Battery volts12Reference
Ford-New Holland 4230 Height
2WD Hood123 cmReference
4WD Hood127 cmReference
2WD ROPS211 cmReference
4WD ROPS215 cmReference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
