Tractor · 1982Unverified

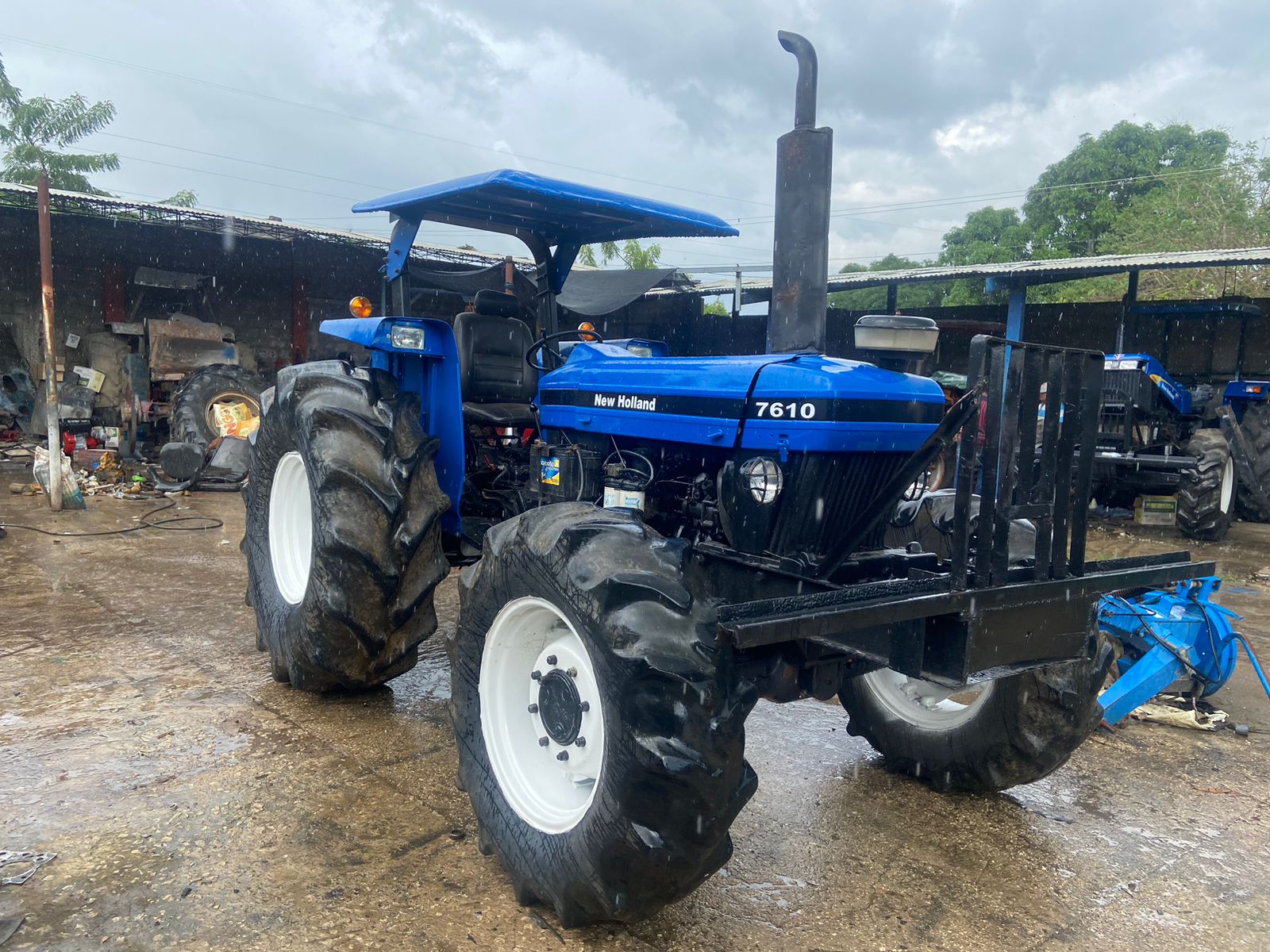

Ford-New Holland 7610
Ford-New Holland 7610 — Utility tractor · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Max power
55.2 kW
Weight
2692 kg
Hover a source tag to verify
Overview
ManufacturerFord-New HollandReference
Utility tractorReference
Original price was $29,750 in 1992Reference
Two- or four-wheel driveReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Ford 4.4L 4-cyl dieselReference
Engine (gross)72.3 kWReference
Drawbar (tested)55.2 kWReference
FordReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power (gross)72.3 kWReference
Compression15.6:1Reference
Rated RPM2100Reference
Torque377.0 NmReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity17.0 LReference
Power at rated engine speed64.8 kWReference
Max power55.2 kWReference
Power at rated engine speed64.6 kWReference
Max power53.9 kWReference
Transmission
8-speedReference
16-speed partial power shiftReference
16-speed synchromesh partial power shiftReference
TransmissionDual-rangeReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
Oil capacity56.8 LReference
TransmissionDual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.Reference
Typesynchromesh partial power shiftReference
Gears16 forward and 8 reverseReference
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.Reference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
PTO (tested)64.8 kWReference
Hydraulic system56.8 LReference
Typeopen centerReference
Capacity56.8 LReference
Pressure172.4 barReference
Valves1Reference
Pump flow68.9 lpmReference
Steering flow10.4 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2028 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1902Reference
Engine RPM1000@2059Reference
Power at rated PTO speed64.7 kWReference
Power at rated PTO speed64.5 kWReference
Capacities
Fuel130.6 LReference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase225 cmReference
Weight2692 kgReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-30Reference
Ag front7.50-18 (2WD)Reference
Ag front10.00-16 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag front13.6-24 (4WD)Reference
Ag front14.9-24 (4WD)Reference
Ag rear18.4-30Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear16.9-38Reference
2WD Length368 cmReference
4WD Length388 cmReference
Width195 cmReference
Shipping weight2692 kgReference
Ballasted weight4989 kgReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)47 cmReference
Clearance (rear axle)61 cmReference
2WD Front tread132 to 203 cmReference
4WD Front tread152 to 200 cmReference
Rear tread152 to 203 cmReference
Rear tread142 to 228 cmReference
Steering wheel173 cmReference
Ford-New Holland 7610 attachments
front-end loaderReference
7610 Serial Numbers
Location:On plate inside engine compartment and one right-front of transmission.Reference
1982C681910Reference
1983C695880Reference
1984C713459Reference
1985C737800Reference
1986C754100Reference
1986BA80100Reference
1987C768000Reference
1987BB06622Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps51Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 777B loaderReference
Ford 777D loaderReference
Ford 777F loaderReference
Ford 7210 loaderReference
Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.Reference
Ford-New Holland 7610 Height
ROPS243 cmReference
Cab270 cmReference
Exhaust243 cmReference
Test results
NTTL 1432: diesel 16/4 4WDReference
NTTL 1433: diesel 16/8 powershift 2WDReference
Diesel 16/4 4WDApril 14 - May 10, 1982Link: Nebraska Tractor Test 1432 fileReference
PTO performanceReference
Fuel use21.2 l/hourReference
Fuel use20.8 l/hourReference
Drawbar performanceReference
Gear 6L used for power test.Reference
Max pull3993 kgReference
Gear 3L used for pull test.Reference
Diesel 16/8 powershift 2WDApril 2 - May 3, 1982Link: Nebraska Tractor Test 1433 fileReference
Fuel use20.1 l/hourReference
Max pull3918 kgReference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
