Tractor · 1982Unverified

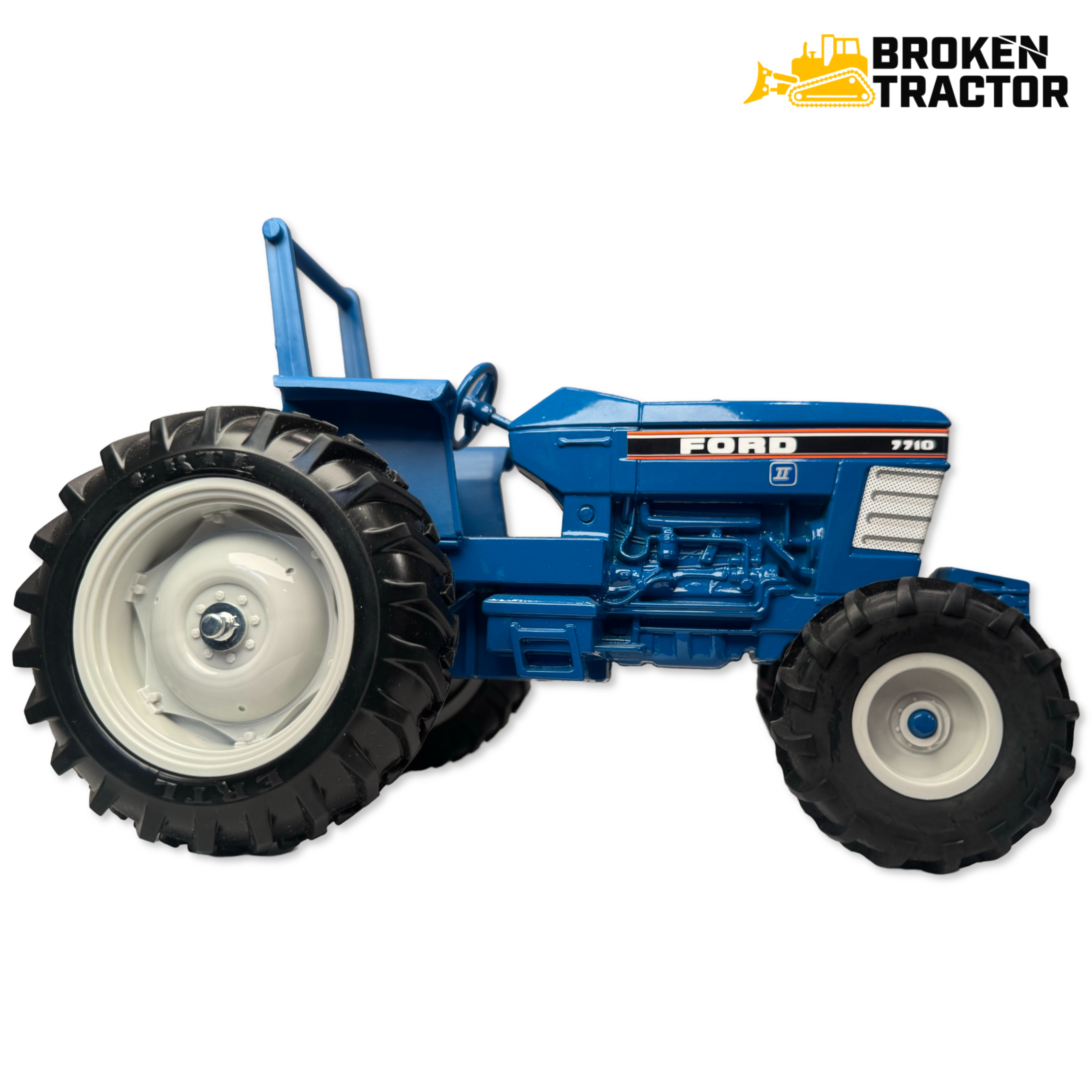

Ford-New Holland 7710

Name: Ford-New Holland 7710
Brand: Ford-New Holland

Ford-New Holland 7710 — Row-Crop tractor · 97 hp. Reference specifications; pending source verification.

The Ford-New Holland 7710 is a tractor, boasting a rated output of 97 hp, positioning it within the middle of its class in terms of power. This model was produced from 1982 to 1990 and features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission for four-wheel drive operation. The listed weight range is 6587 to 8650 pounds, and it is suited for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

97 hp

Max power

55.2 kW

Weight

6587 to 8650 pounds

Catalogue coverage

Variants represented

Richest spec table

135 rows

Recorded power

97 hp

Transmissions

8-speed

Production years

1982-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFord-New HollandReference

Row-Crop tractorReference

FactoriesRomeo, Michigan, USAReference

FactoriesBasildon, EnglandReference

Original price was $28,000 in 1990Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Differential mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

Ford 4.4L 4-cyl dieselReference

Engine (gross)72.3 kWReference

Drawbar (tested)55.2 kWReference

FordReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke112 x 112 mmReference

Power (gross)72.3 kWReference

Air cleanerdual paper elementsReference

Compression15.6:1Reference

Rated RPM2100Reference

Torque377.0 NmReference

Starter volts12Reference

Oil capacity8.5 LReference

Coolant capacity17.0 LReference

Power at rated engine speed64.8 kWReference

Max power55.2 kWReference

Power at rated engine speed64.6 kWReference

Max power53.9 kWReference

Transmission

8-speedReference

16-speed partial power shiftReference

16-speed synchromesh partial power shiftReference

TransmissionDual-rangeReference

Gears8 forward and 2 reverseReference

TransmissionDual PowerReference

Typepartial power shiftReference

Gears16 forward and 4 reverseReference

Clutch330mm dry discReference

The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.Reference

Typesynchromesh partial power shiftReference

Gears16 forward and 8 reverseReference

A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.Reference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

PTO (tested)64.8 kWReference

Hydraulic system56.8 LReference

Typeopen centerReference

Capacity56.8 LReference

Pressure172.4 barReference

Valves2Reference

Pump flow68.9 lpmReference

Steering flow10.4 lpmReference

Rear TypeII/IReference

Rear lift (at 24"/610mm)2028 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1902Reference

Engine RPM1000@2059Reference

Power at rated PTO speed64.7 kWReference

Power at rated PTO speed64.5 kWReference

Capacities

Fuel177.9 LReference

Dimensions

2WD Wheelbase258 cmReference

4WD Wheelbase247 cmReference

Weight6587 to 8650 poundsReference

Front tire7.50-16Reference

Rear tire15.5-38Reference

Ag front7.50-16 (2WD)Reference

Ag front11.2-24 (4WD)Reference

Ag rear15.5-38Reference

Ag front7.50-18 (2WD)Reference

Ag front10.00-16 (2WD)Reference

Ag front13.6-24 (4WD)Reference

Ag front14.9-24 (4WD)Reference

Ag rear18.4-30Reference

Ag rear16.9-34Reference

Ag rear18.4-34Reference

Ag rear16.9-38Reference

2WD Length384 cmReference

4WD Length392 cmReference

Width195 cmReference

Ground clearance52 cmReference

Ground clearance62 cmReference

2WD Front tread148 to 219 cmReference

4WD Front tread152 to 200 cmReference

Rear tread152 to 203 cmReference

Rear tread142 to 228 cmReference

Shipping2987 kgReference

Operating3923 kgReference

Ballasted4898 kgReference

Steering wheel219 cmReference

Ford-New Holland 7710 attachments

front-end loaderReference

7710 Serial Numbers

Location:On plate inside engine compartment and on right-front of transmission.Reference

1982C681910Reference

1983C695880Reference

1984C713459Reference

1985C737800Reference

1986C754100Reference

1986BA80100Reference

1987C768000Reference

1987BB06622Reference

1988BB31777Reference

1989BB80260Reference

1990BC26239Reference

1991BC68791Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps51Reference

Cab Charging amps71Reference

Battery volts12Reference

Battery AH128Reference

Attachment overview

Ford 777B loaderReference

Ford 777D loaderReference

Ford 777F loaderReference

Ford 7412 loaderReference

Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.Reference

Ford-New Holland 7710 Height

ROPS281 cmReference

Cab291 cmReference

Exhaust296 cmReference

Test results

NTTL 1432: diesel 16/4 4WDReference

NTTL 1433: diesel 16/8 powershift 2WDReference

Diesel 16/4 4WDApril 14 - May 10, 1982Link: Nebraska Tractor Test 1432 fileReference

PTO performanceReference

Fuel use21.2 l/hourReference

Fuel use3.8 l/hourReference

Drawbar performanceReference

Fuel use20.8 l/hourReference

Gear 6L used for power test.Reference

Max pull3993 kgReference

Gear 3L used for pull test.Reference

Diesel 16/8 powershift 2WDApril 2 - May 3, 1982Link: Nebraska Tractor Test 1433 fileReference

Fuel use20.1 l/hourReference

Max pull3918 kgReference

Speeds

With 18.4x34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
