Tractor · 1990Unverified

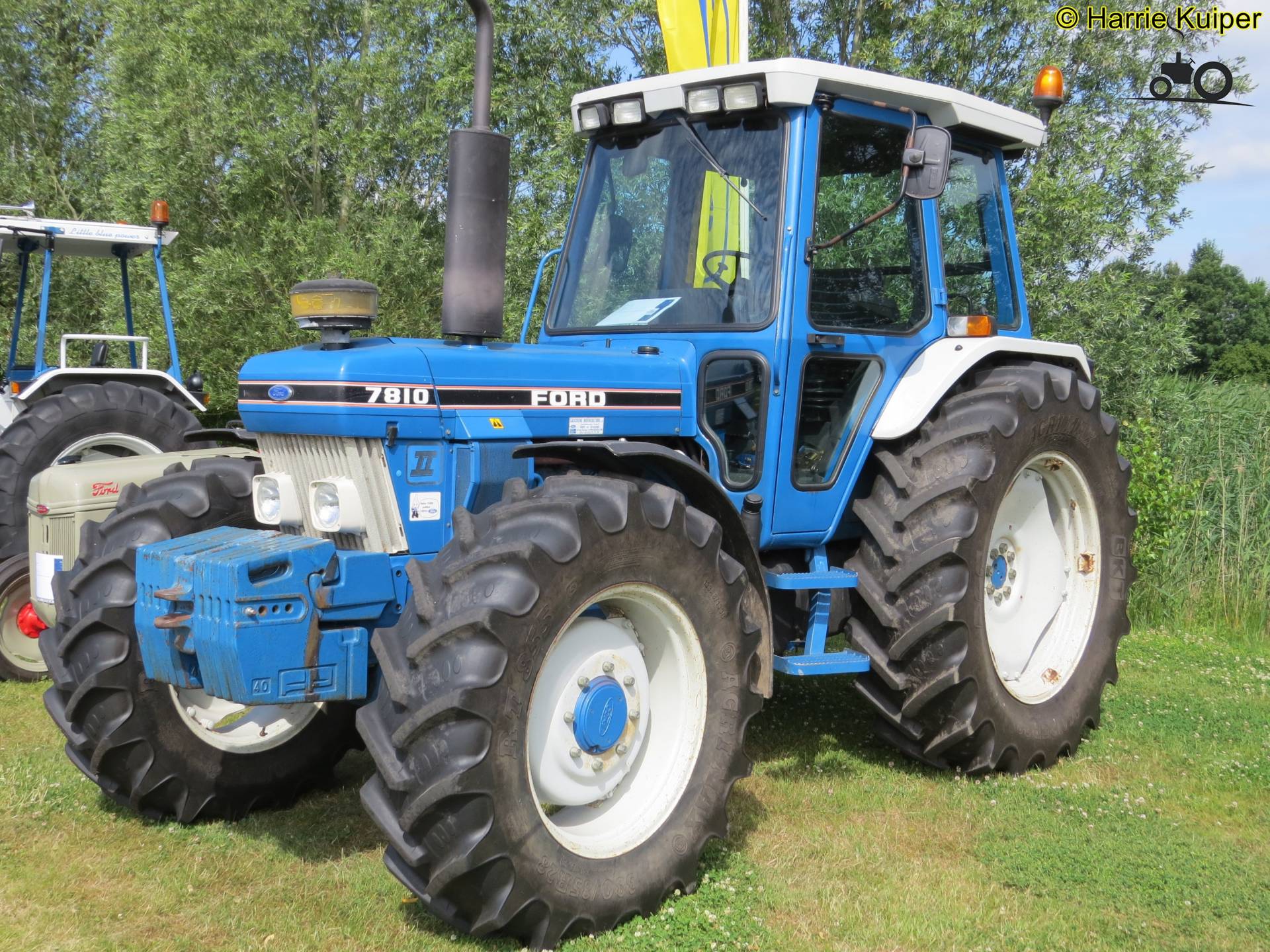

Ford-New Holland 7810

Name: Ford-New Holland 7810
Brand: Ford-New Holland

Ford-New Holland 7810 — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.

The Ford-New Holland 7810 is a tractor with a rated output of 105 hp, positioning it centrally within its class in terms of power. This model was manufactured from 1990 to 1991. It is equipped with a 6-cylinder diesel liquid-cooled engine, transmitting power to all four wheels via an 8-speed gearbox. The tractor's listed weight is between 8228 and 9460 pounds, making it suitable for tasks covering approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Weight

8228 to 9460 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

105 hp

Recorded weight

3732 kg

Transmissions

8-speed gear

Production years

1990-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFord-New HollandReference

Row-Crop tractorReference

Original price was $32,000 in 1990Reference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

Cab optional.Reference

Engine

Ford 6.6L 6-cyl dieselReference

Fuel tank132.5 LReference

Engine (gross)78.3 kWReference

Engine (net)74.6 kWReference

FordReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke112 x 112 mmReference

Power (net)74.6 kWReference

Power (gross)78.3 kWReference

Pre-heatingthermostartReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity15.1 LReference

Transmission

8-speed gearReference

16-speedReference

TypegearReference

Gears8 forward and 2 reverseReference

TransmissionDual PowerReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

Typeopen centerReference

Valves2 to 4Reference

Pump flow68.9 lpmReference

Rear TypeIIReference

Rear lift1823 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1900Reference

Engine RPM1000@2060Reference

Dimensions

2WD Wheelbase251 cmReference

4WD Wheelbase251 cmReference

Weight8228 to 9460 poundsReference

Front tire10.00-16Reference

2WD Rear tire16.9-38Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-38Reference

4WD Standard tires (ag)Front: 14.9-24. Rear: 16.9-38Reference

2WD Length400 cmReference

4WD Length420 cmReference

Width185 cmReference

2WD Weight3732 kgReference

4WD Weight4291 kgReference

Front tread132 to 203 cmReference

Rear tread142 to 228 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps51Reference

Cab Charging amps75Reference

Battery CCA750Reference

Battery volts12Reference

Ford-New Holland 7810 Height

ROPS243 cmReference

ROPS246 cmReference

Cab270 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
