Tractor · 1983Unverified

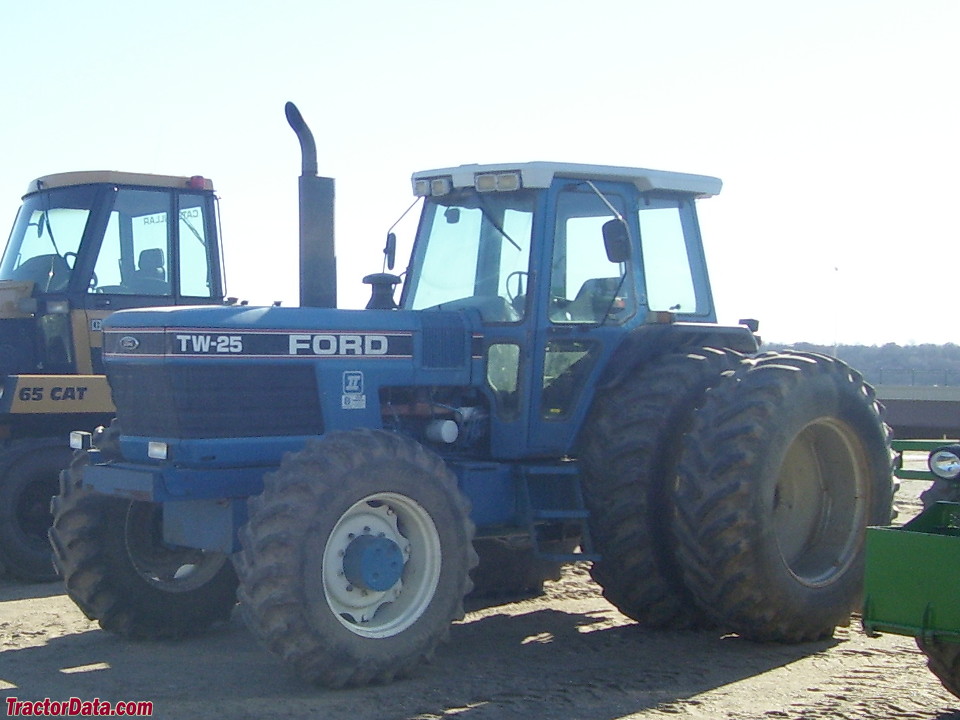

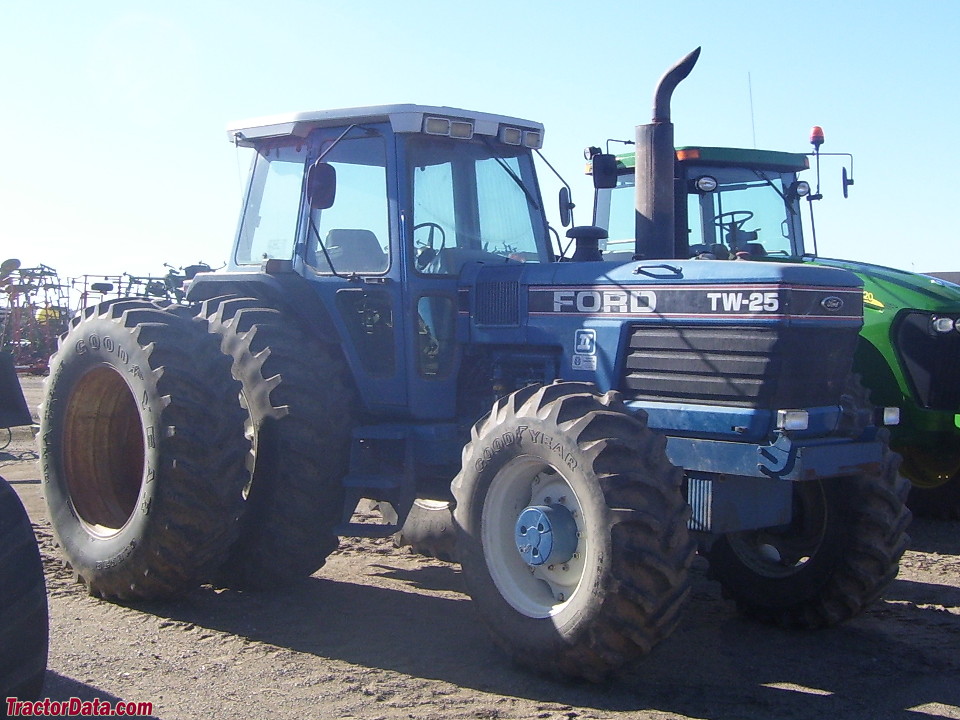

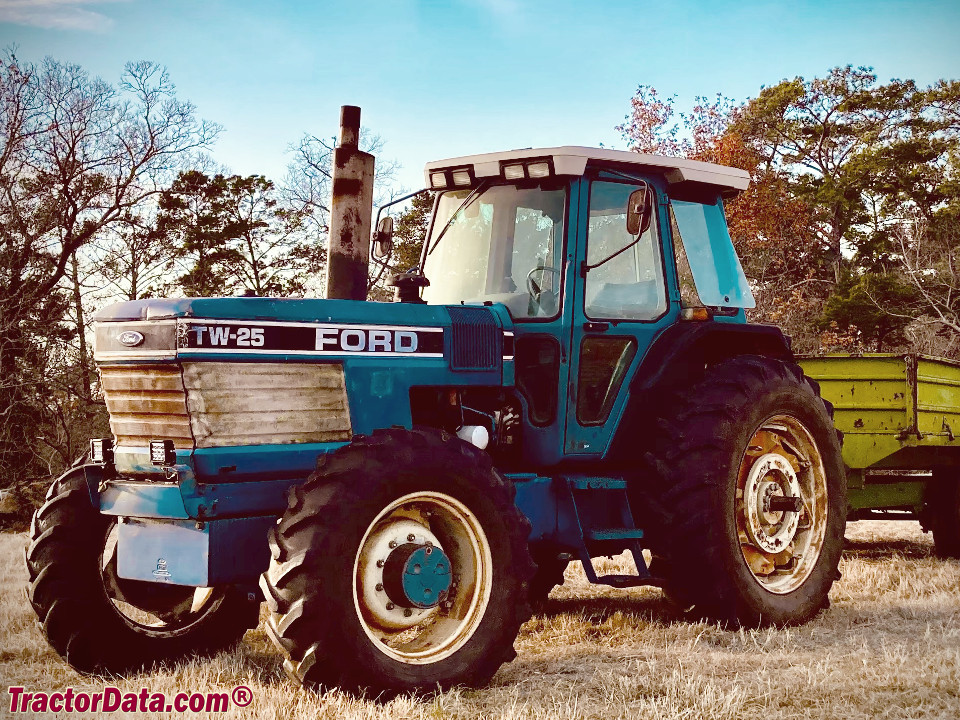

Ford TW-25
Ford TW-25 — TW Series · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Max power
93.1 kW
Weight
12267 to 15500 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Antwerp, BelgiumReference
Two- or four-wheel driveReference
Differential lockhydraulic rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
ROPS. Cab optional.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Engine (gross)119.3 kWReference
Engine116.3 kWReference
Drawbar (tested)93.1 kWReference
FordReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power116.3 kWReference
Power (gross)119.3 kWReference
Fuel systemindirect injectionReference
Air cleanerdual paper elementsReference
Pre-heatingether injectionReference
Pre-heatingcoolant heaterReference
Compression15.6:1Reference
Rated RPM2200Reference
Idle RPM700-2470Reference
Torque574.9 NmReference
Torque RPM1600Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity21.8 LReference
Power at rated engine speed104.9 kWReference
Max power93.1 kWReference
Transmission
16-speed partial power shiftReference
24-speedReference
TransmissionDual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
Clutch356mm dry discReference
Oil capacity87.1 LReference
Electrically-actuated Dual Power allows shift-on-the-move from Direct mode to lower Power Mode for each gear.Reference
TransmissioncreeperReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)104.9 kWReference
Hydraulic system69.1 LReference
Typeopen centerReference
Capacity69.1 LReference
Pressure172.4 barReference
Valves2Reference
Pump flow57.9 lpmReference
Pump flow90.1 lpmReference
Total flow104.1 lpmReference
Steering flow15.9 lpmReference
Rear TypeIIReference
Rear TypeIIIReference
Controlposition control and lower-link draft sensingReference
Rear lift (at 24"/610mm)3243 kgReference
Rear lift (at 24"/610mm)4286 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1861Reference
Engine RPM1000@1918Reference
Power at rated PTO speed101.2 kWReference
Capacities
Fuel283.9 LReference
Fuel378.5 LReference
Dimensions
2WD Wheelbase274 cmReference
4WD Wheelbase281 cmReference
Weight12267 to 15500 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16 (2WD)Reference
Ag rear18.4-38Reference
Ag front14Lx16 (2WD)Reference
Ag front10.00x16 (2WD)Reference
Ag front14.9-24 (4WD)Reference
Ag front14.9-28 (4WD)Reference
Ag front16.9-28 (4WD)Reference
Ag rear20.8x38Reference
Lawn/turf front18.4x16.1 (2WD)Reference
Length453 cmReference
Width212 cmReference
Ground clearance41 cmReference
2WD Front tread152 to 213 cmReference
4WD Front tread165 to 213 cmReference
Rear tread162 to 254 cmReference
Rear tread162 to 294 cmReference
Shipping5564 kgReference
Operating7030 kgReference
Ballasted8148 kgReference
Steering wheel221 cmReference
Ford TW-25 attachments
front-end loaderReference
TW-25 Serial Numbers
Location:Under forward right grill panelReference
1983C694500Reference
1984C707400Reference
1985C732600Reference
1986A915854Reference
1987A917560Reference
1988A919438Reference
1989A922535Reference
1990A925099Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 773 loaderReference
Ford 7413 loaderReference
Ford TW-25 Height
ROPS291 cmReference
Cab294 cmReference
Exhaust311 cmReference
Test results
Diesel 16-speed 2WDApril 25 - May 15, 1984Link: Nebraska Tractor Test 1516 fileReference
PTO performanceReference
Fuel use34.1 l/hourReference
Fuel use30.7 l/hourReference
Drawbar performanceReference
Gear 5L used for power test.Reference
Max pull7082 kgReference
Gear 2L used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
