Tractor · 1983Unverified

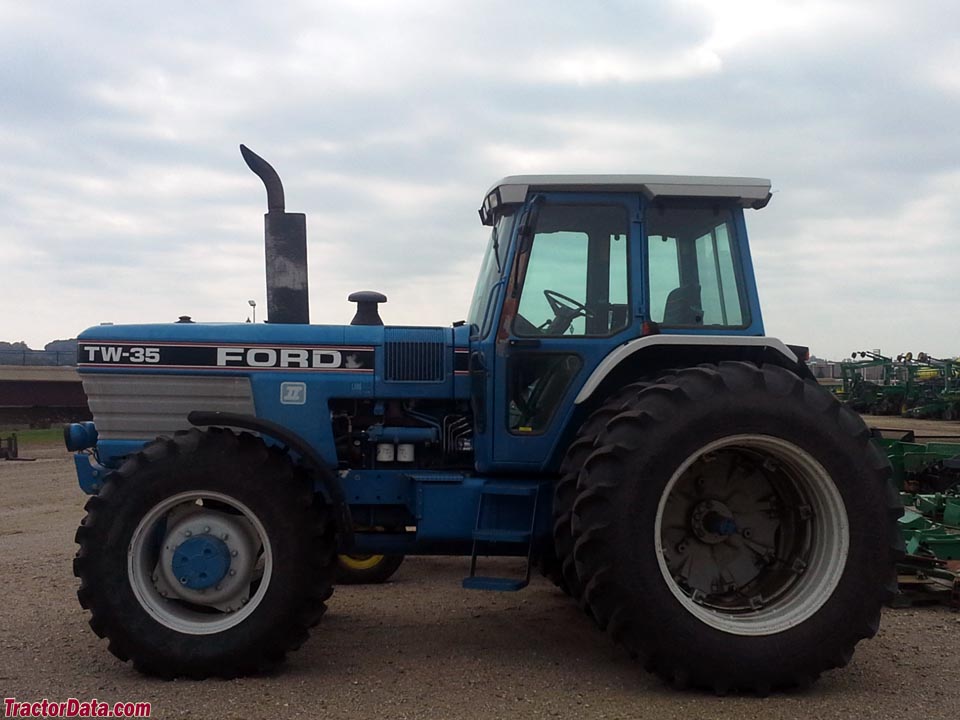

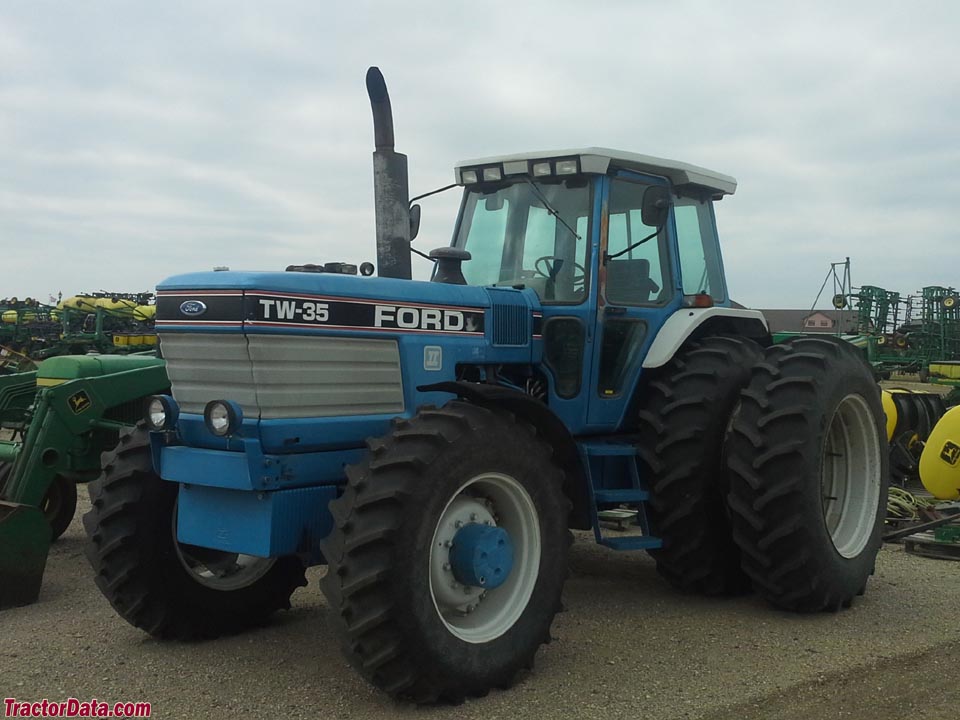

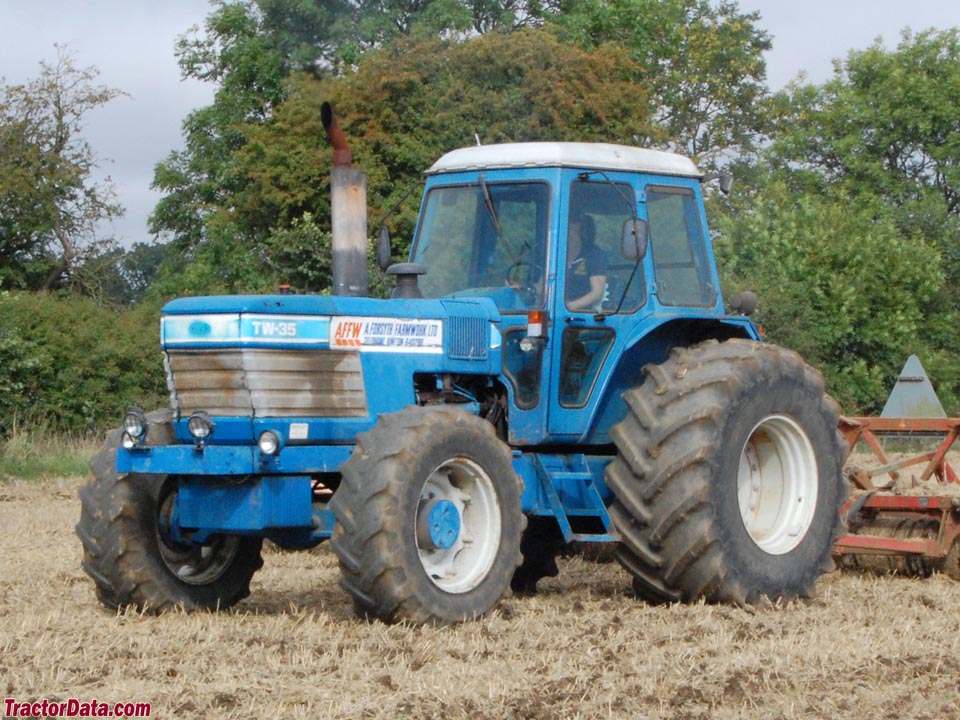

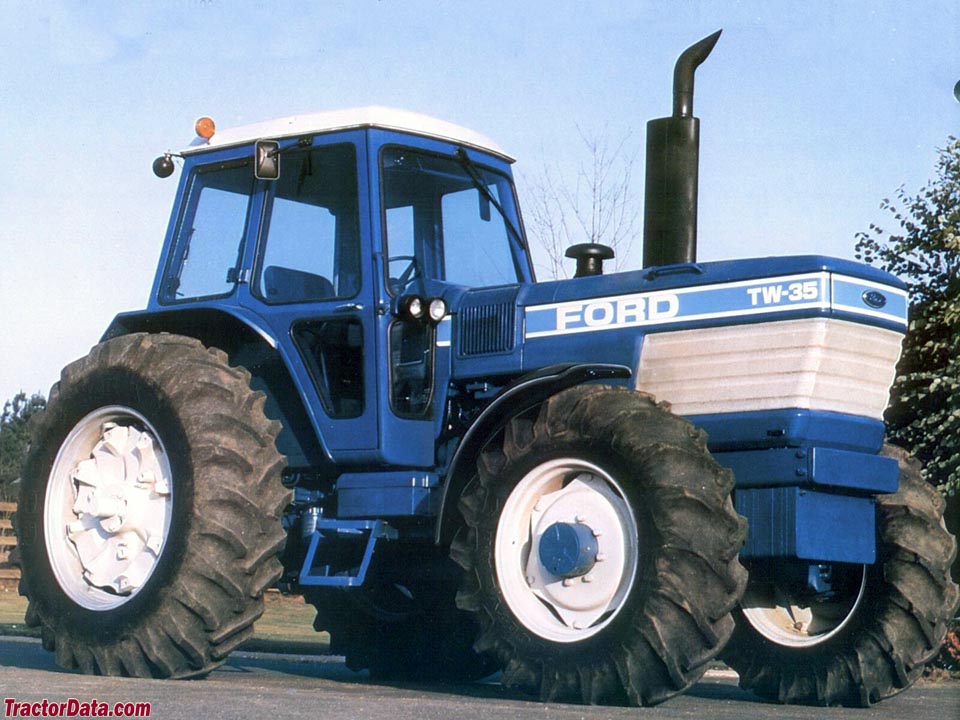

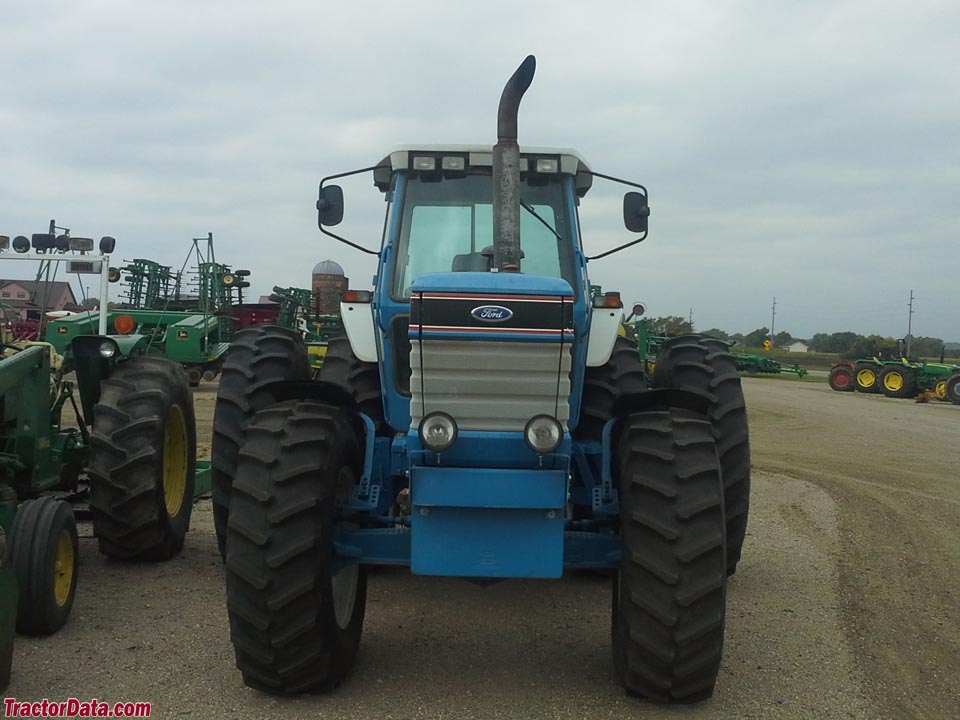

Ford TW-35
Ford TW-35 — TW Series · 192 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
192 hp
Max power
108.4 kW
Weight
13686 to 15100 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Antwerp, BelgiumReference
Two- or four-wheel driveReference
Differential lockhydraulic rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning. ROPS available.Reference
Engine
Ford 6.6L 6-cyl dieselReference
Engine (gross)143.2 kWReference
Engine139.4 kWReference
Drawbar (tested)108.6 kWReference
FordReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke112 x 112 mmReference
Power139.4 kWReference
Power (gross)143.2 kWReference
Air cleanerdryReference
Pre-heatingether injectionReference
Pre-heatingcoolant heaterReference
Compression15.6:1Reference
Rated RPM2200Reference
Idle RPM700-2470Reference
Torque701.1 NmReference
Torque RPM1600Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity21.8 LReference
Power at rated engine speed127.0 kWReference
Max power108.4 kWReference
Power at rated engine speed127.6 kWReference
Max power108.6 kWReference
Transmission
16-speed partial power shiftReference
TransmissionDual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
Clutch356mm dry discReference
Oil capacity87.1 LReference
Electrically-actuated Dual Power allows shift-on-the-move from Direct mode to lower Power Mode for each gear.Reference
PTO & Hydraulics
PTO (claimed)126.8 kWReference
PTO (tested)127.6 kWReference
Hydraulic system87.1 LReference
Typeopen centerReference
Capacity87.1 LReference
Pressure172.4 barReference
Pump flow75.7 lpmReference
Total flow121.9 lpmReference
Steering flow15.9 lpmReference
Rear TypeIIReference
Rear TypeIIIReference
Controlposition control and lower-link draft sensingReference
Rear lift (at 24"/610mm)3243 kgReference
Rear lift (at 24"/610mm)4286 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@1918Reference
Power at rated PTO speed124.3 kWReference
Power at rated PTO speed121.2 kWReference
Capacities
Fuel283.9 LReference
Fuel378.5 LReference
Dimensions
2WD Wheelbase274 cmReference
4WD Wheelbase281 cmReference
Weight13686 to 15100 poundsReference
Front tire11.00x16Reference
Rear tire18.4x38Reference
Ag front11.00x16 (2WD)Reference
Ag rear18.4x38Reference
Ag front14Lx16 (2WD)Reference
Ag front14.9-24 (4WD)Reference
Ag front14.9-28 (4WD)Reference
Ag front16.9-28 (4WD)Reference
Ag rear20.8x38Reference
Ag rear24.5x32Reference
Lawn/turf front18.4x16.1 (2WD)Reference
Length453 cmReference
Width212 cmReference
Ground clearance41 cmReference
2WD Front tread152 to 213 cmReference
4WD Front tread165 to 213 cmReference
Rear tread152 to 279 cmReference
Rear tread152 to 294 cmReference
ROPS Shipping6207 kgReference
Cab Shipping6519 kgReference
4WD Cab Operating6849 kgReference
Ballasted9194 kgReference
Steering wheel221 cmReference
Ford TW-35 attachments
front-end loaderReference
TW-35 Serial Numbers
Location:Under forward right grill panelReference
1983C694500Reference
1984C707400Reference
1985C732600Reference
1986A915854Reference
1987A917560Reference
1988A919438Reference
1989A922535Reference
1990A925099Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 773 loaderReference
Ford 7413 loaderReference
Ford TW-35 Height
ROPS291 cmReference
Cab294 cmReference
Exhaust311 cmReference
Test results
NTTL 1517: diesel 16-speed 2WDReference
NTTL 1537: diesel 16-speed 4WDReference
Diesel 16-speed 2WDApril 26 - May 8, 1984Link: Nebraska Tractor Test 1517 fileReference
PTO performanceReference
Fuel use39.0 l/hourReference
Fuel use36.3 l/hourReference
Drawbar performanceReference
Fuel use38.6 l/hourReference
Gear 5L used for power test.Reference
Max pull7735 kgReference
Gear 2L used for pull test.Reference
Diesel 16-speed 4WDSeptember 12 - 24, 1984Link: Nebraska Tractor Test 1537 fileReference
Fuel use34.8 l/hourReference
Fuel use38.2 l/hourReference
Max pull8538 kgReference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
