Tractor · 1937Unverified

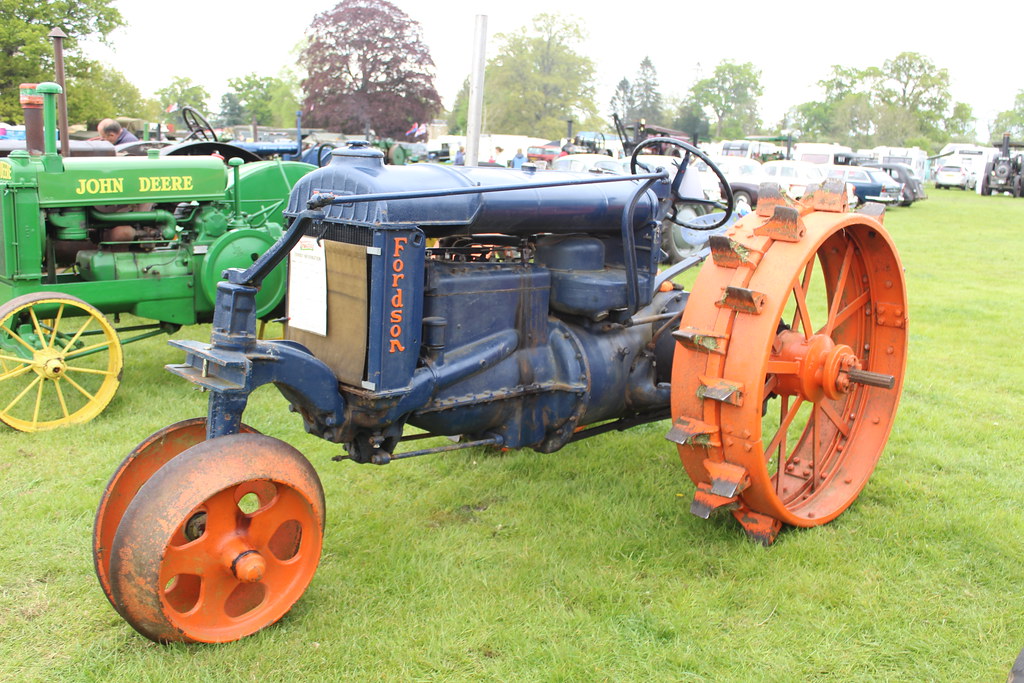

Fordson All-Around
Fordson All-Around · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1632 kg
Hover a source tag to verify
Overview
ManufacturerFordson (a part of Ford)Reference
Built in Dagenham, EnglandReference
Also known as the Fordson Row Crop in the United States, the All-Around was at attempt to move into the row-crop tractor market, which had become very popular in North America after the introduction of the Farmall. It is based on the Fordson N.Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Ford 4.4L 4-cyl keroseneReference
Ford 4.4L 4-cyl gasolineReference
Fuel tank75.7 LReference
Engine18.6 kWReference
Drawbar (claimed)11.2 kWReference
Plows2 (14-inch)Reference
FordReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power18.6 kWReference
Rated RPM1100Reference
gasolineReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Oil capacity11.4 LReference
Dimensions
Wheelbase223 cmReference
Weight1632 kgReference
Front tire28x5.25Reference
Rear tire42x12Reference
Ag front28x5.25 (steel)Reference
Ag rear42x12 (steel)Reference
Ag rear9.00-36Reference
Length335 cmReference
Width160 cmReference
Rear axle50 mmReference
Rear tread132 to 233 cmReference
Speeds
With 9.00-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
