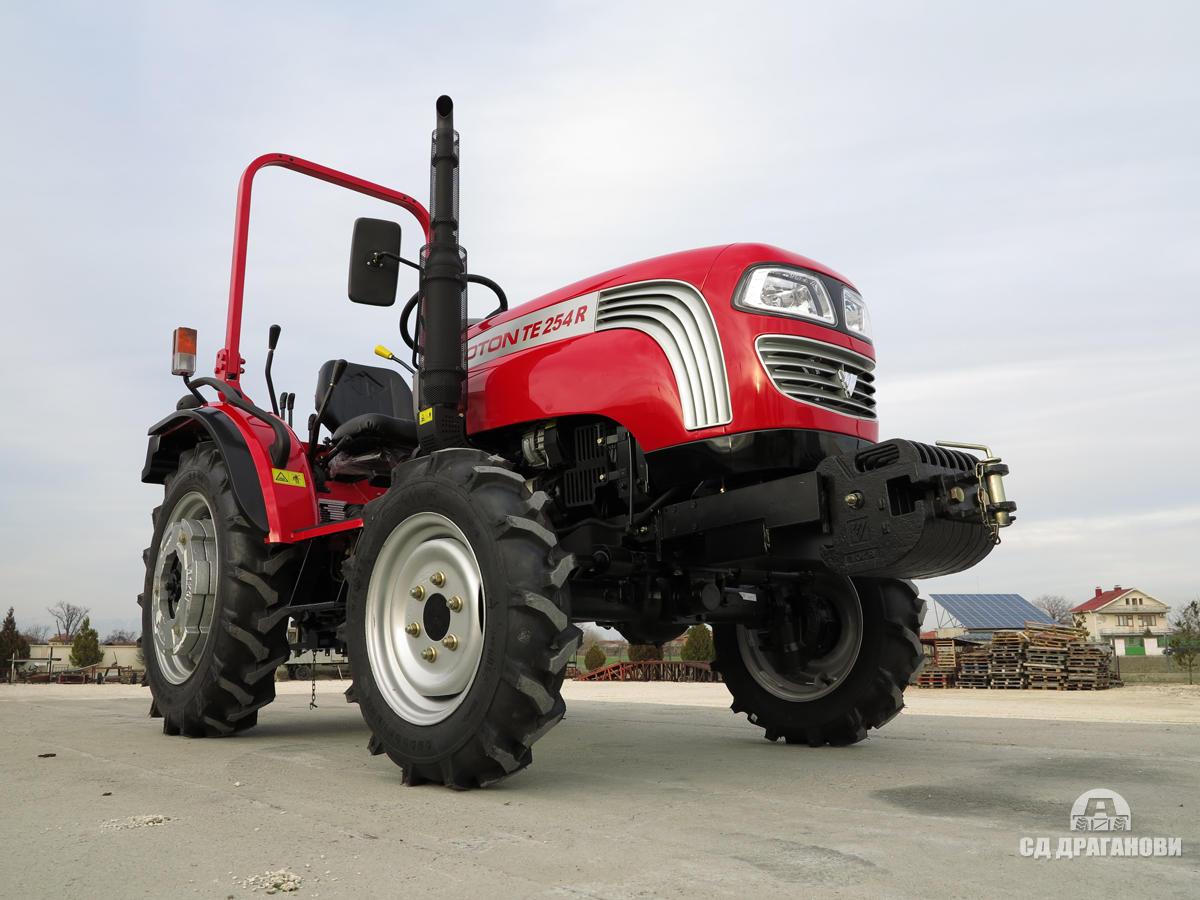

The Foton 254 is a tractor model with a rated power of 25 hp, which places it at the lighter end of its class. Under the hood is a 2-cylinder diesel liquid-cooled engine, paired with four-wheel drive with a 6-speed gearbox. It suits operations of up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
25 hp
Transmissions
6-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFotonReference
Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Drum brakesReference
Variants
2502WDReference
Engine
Foton 1.6L 2-cyl dieselReference
Engine18.3 kWReference
Foton TY295IReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke100 x 105 mmReference
Power18.3 kWReference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity3.5 LReference
Coolant capacity10.0 LReference
Transmission
6-speedReference
8-speedReference
Gears6 forward and 2 reverseReference
Gears8 forward and 2 reverseReference
Capacities
Fuel20.8 LReference
PTO & Hydraulics
Hydraulic system9.1 LReference
Capacity9.1 LReference
Pressure145.0 barReference
Rear Type0Reference
Rear PTOtransmissionReference
Rear PTO Type540/720Reference
Dimensions
Front tire6.00-12Reference
Rear tire8.3-24Reference
Ag front6.00-12Reference
Ag rear8.3-24Reference
Length270 cmReference
Width124 cmReference
Height136 cmReference
Ground clearance25 cmReference
Electrical
GroundnegativeReference
Charging amps16.7Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
