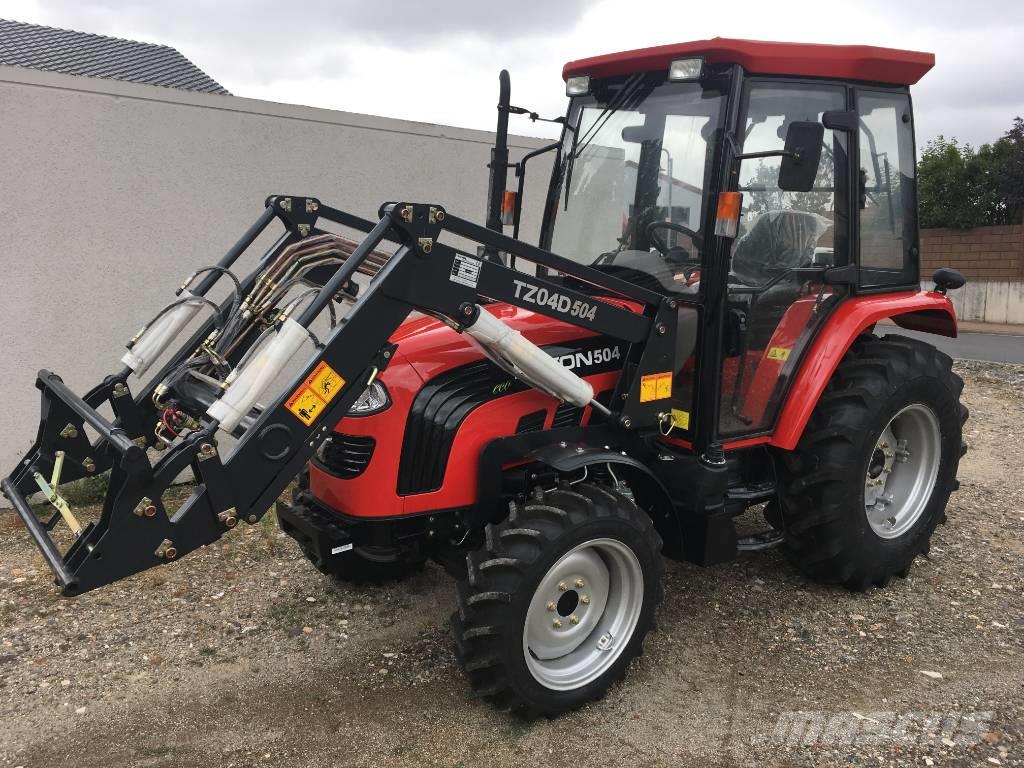

The Foton 504 is a tractor with a rated output of 46 hp — making it one of the more compact options in its class. Under the hood is a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 8-speed gearbox. Listed weight is 3245 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
3245 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
46 hp
Recorded weight
3245 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFotonReference
Four-wheel driveReference
Variants
5002WDReference
Engine
3.8L 4-cyl dieselReference
Fuel tank78.0 LReference
Engine36.8 kWReference
YZ4100TB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 122 mmReference
Power36.8 kWReference
Compression17:1Reference
Rated RPM2200Reference
Torque194.7 NmReference
Torque RPM1650Reference
Oil capacity10.0 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)34.6 kWReference
Rear TypeI,IIReference
Rear lift (at 24"/610mm)866 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase221 cmReference
Weight3245 kgReference
Front tire8.30-20Reference
Rear tire14.9-28Reference
Ag front8.30-20Reference
Ag rear14.9-28Reference
Length409 cmReference
Width183 cmReference
Height269 cmReference
Weight3245 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
