Tractor · Unverified

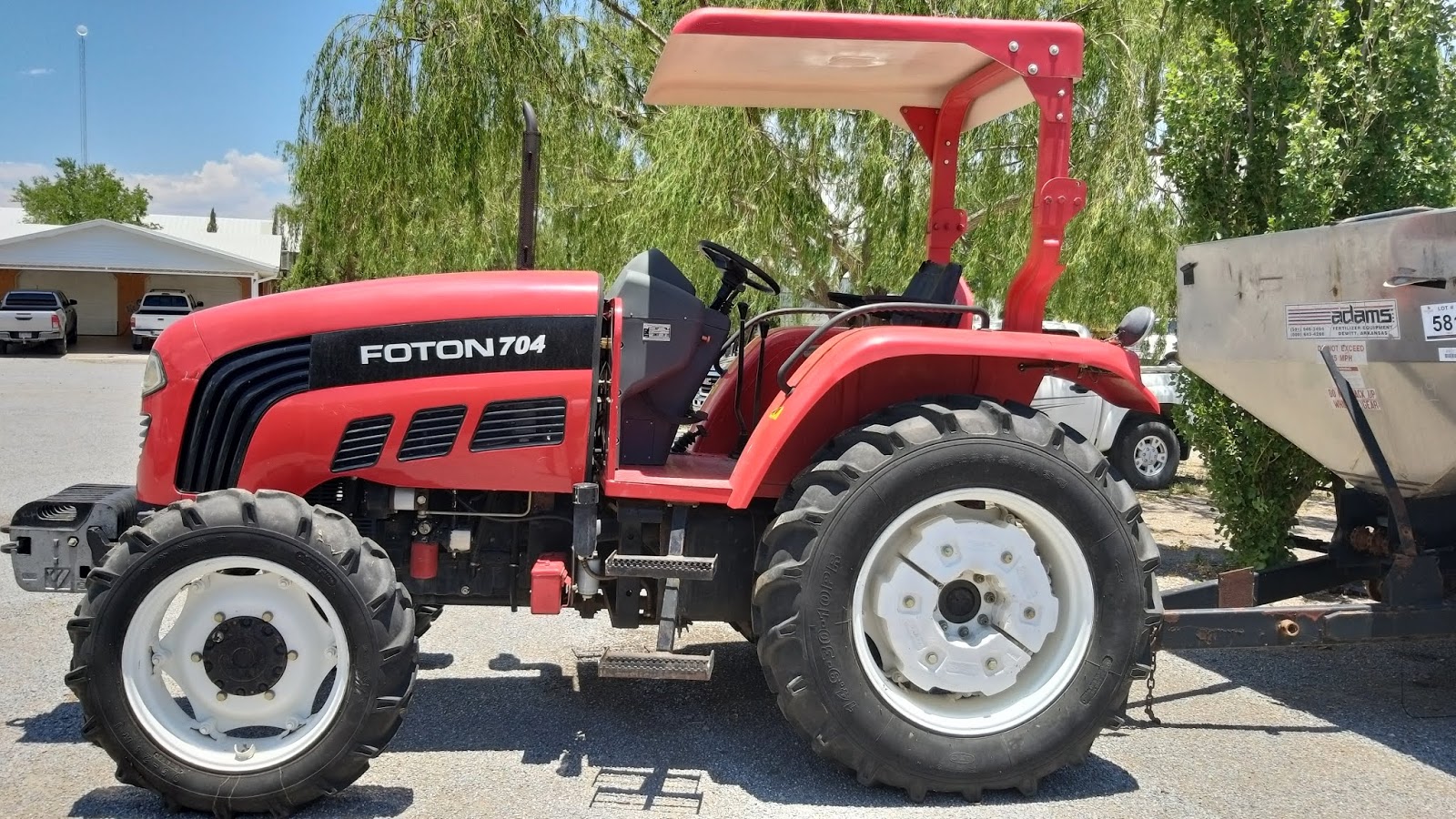

Foton 704
Foton 704 · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
3455 kg
Hover a source tag to verify
Overview
ManufacturerFotonReference
Four-wheel driveReference
SteeringpowerReference
Disc brakesReference
Variants
7002WDReference
Engine
4.3L 4-cyl dieselReference
Engine51.5 kWReference
LRC4105T70Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power51.5 kWReference
Compression17:1Reference
Rated RPM2200Reference
Torque257.1 NmReference
Torque RPM1400Reference
Oil capacity10.0 LReference
Coolant capacity14.0 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)48.4 kWReference
Hydraulic system17.0 LReference
TypeopenReference
Capacity17.0 LReference
Rear TypeI,IIReference
Rear lift (at 24"/610mm)1223 kgReference
Rear PTO Type540Reference
Capacities
Fuel78.0 LReference
Dimensions
Wheelbase221 cmReference
Weight3455 kgReference
Front tire8.30-24Reference
Rear tire16.9-28Reference
Ag front8.30-24Reference
Ag rear16.9-28Reference
Length409 cmReference
Width192 cmReference
Height273 cmReference
Weight3455 kgReference
Electrical
GroundnegativeReference
Charging amps35.7Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
