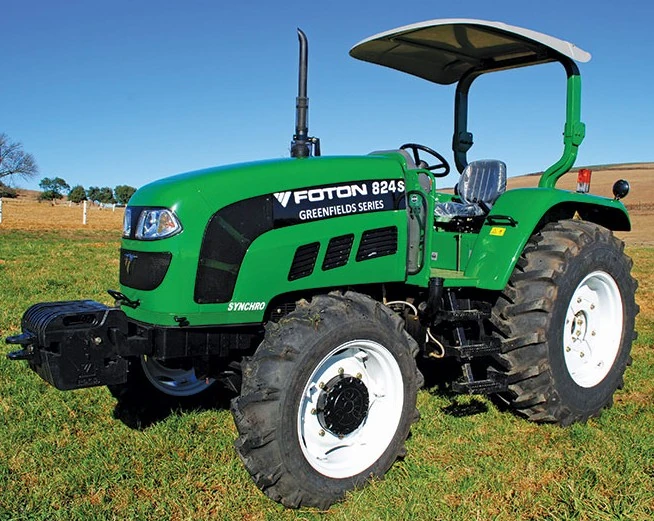

The Foton 824 is a tractor rated at 81 horsepower, positioned centrally in its class for power output. It features a 4-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. The listed weight of the Foton 824 is 3989 kilograms, making it suitable for workloads of approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Weight
3989 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
81 hp
Recorded weight
3989 kg
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFotonReference
Four-wheel driveReference
SteeringpowerReference
Disc brakesReference
Variants
8202WDReference
Engine
4.3L 4-cyl dieselReference
Engine60.7 kWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power60.7 kWReference
Rated RPM2300Reference
Oil capacity17.0 LReference
Coolant capacity14.0 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Capacities
Fuel99.9 LReference
PTO & Hydraulics
Hydraulic system17.0 LReference
TypeopenReference
Capacity17.0 LReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase236 cmReference
Weight3989 kgReference
Front tire11.2-24Reference
Rear tire13.6-38Reference
Ag front11.2-24Reference
Ag rear13.6-38Reference
Length462 cmReference
Width203 cmReference
Height280 cmReference
Ground clearance37 cmReference
Electrical
GroundnegativeReference
Charging amps35.7Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
