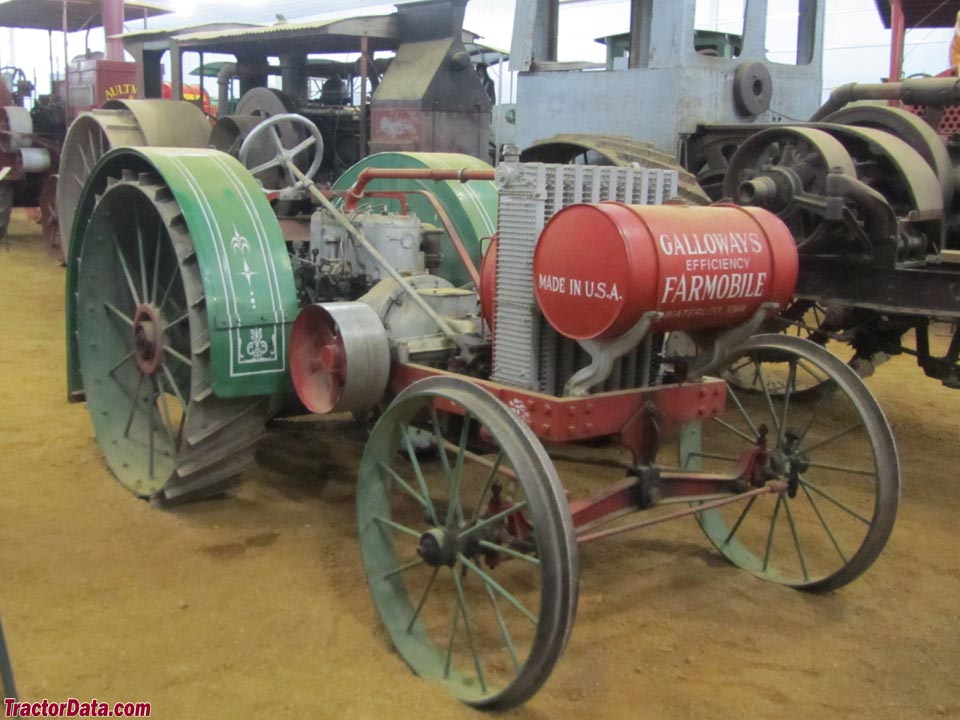

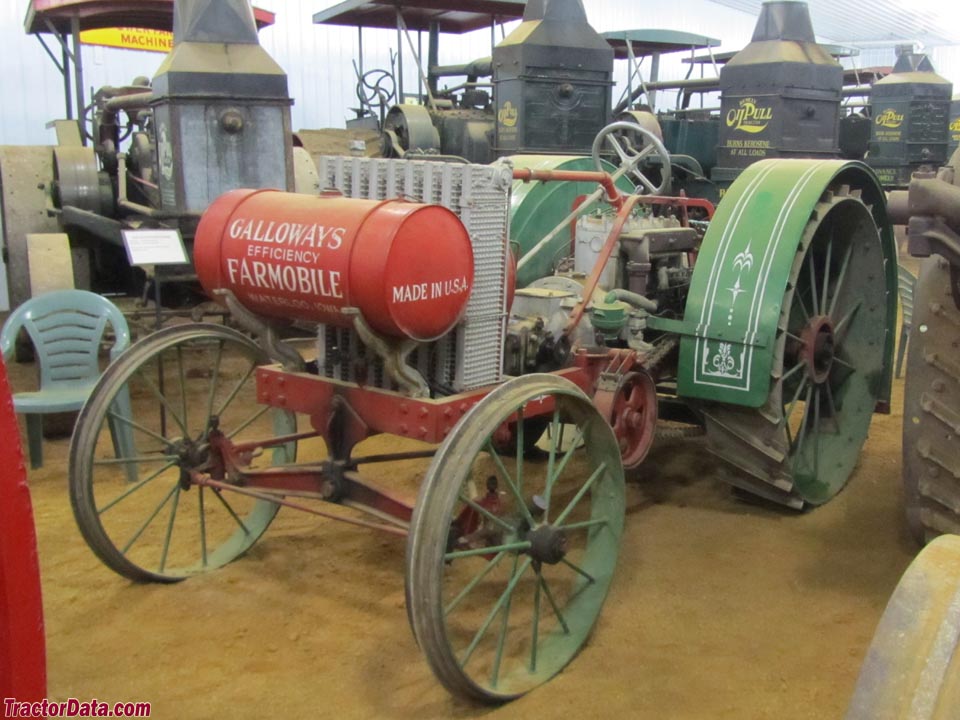

The Galloway Farmobile is a compact tractor model with a rated output of 12 hp, making it suitable for smaller-scale operations. It was manufactured from 1916 to 1919, featuring a 4-cylinder petrol liquid-cooled engine. This engine powers the tractor's two-wheel drive via a 2-speed gearbox, with a listed weight of 2472 kg. The Galloway Farmobile is designed to handle jobs covering around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
2472 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
12 hp
Recorded weight
2472 kg
Transmissions
2-speed gear
Production years
1916-1919
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerGallowayReference
Standard-tread tractorReference
Built in Waterloo, Iowa, USAReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
Dart 5.2L 4-cyl gasolineReference
Fuel tank94.6 LReference
Drawbar (claimed)8.9 kWReference
Belt (claimed)14.9 kWReference
DartReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement5.2 LReference
Bore/Stroke114 x 127 mmReference
Rated RPM800Reference
Starter typehand-crankReference
Coolant capacity53.0 LReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
ClutchRaybestos faced coneReference
Dimensions
Wheelbase236 cmReference
Weight2472 kgReference
Front tire40x10Reference
Rear tire60x24Reference
Ag front40x10 steelReference
Ag rear60x24 steelReference
Length457 cmReference
Width243 cmReference
Height182 cmReference
Shipping weight2472 kgReference
Farmobile Serial Number Location
Top-right of transmission case.Reference
Capacities
Diameter31 cmReference
Width17 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
