Skid-Steer LoaderV Series · 2024 Verified · 98%

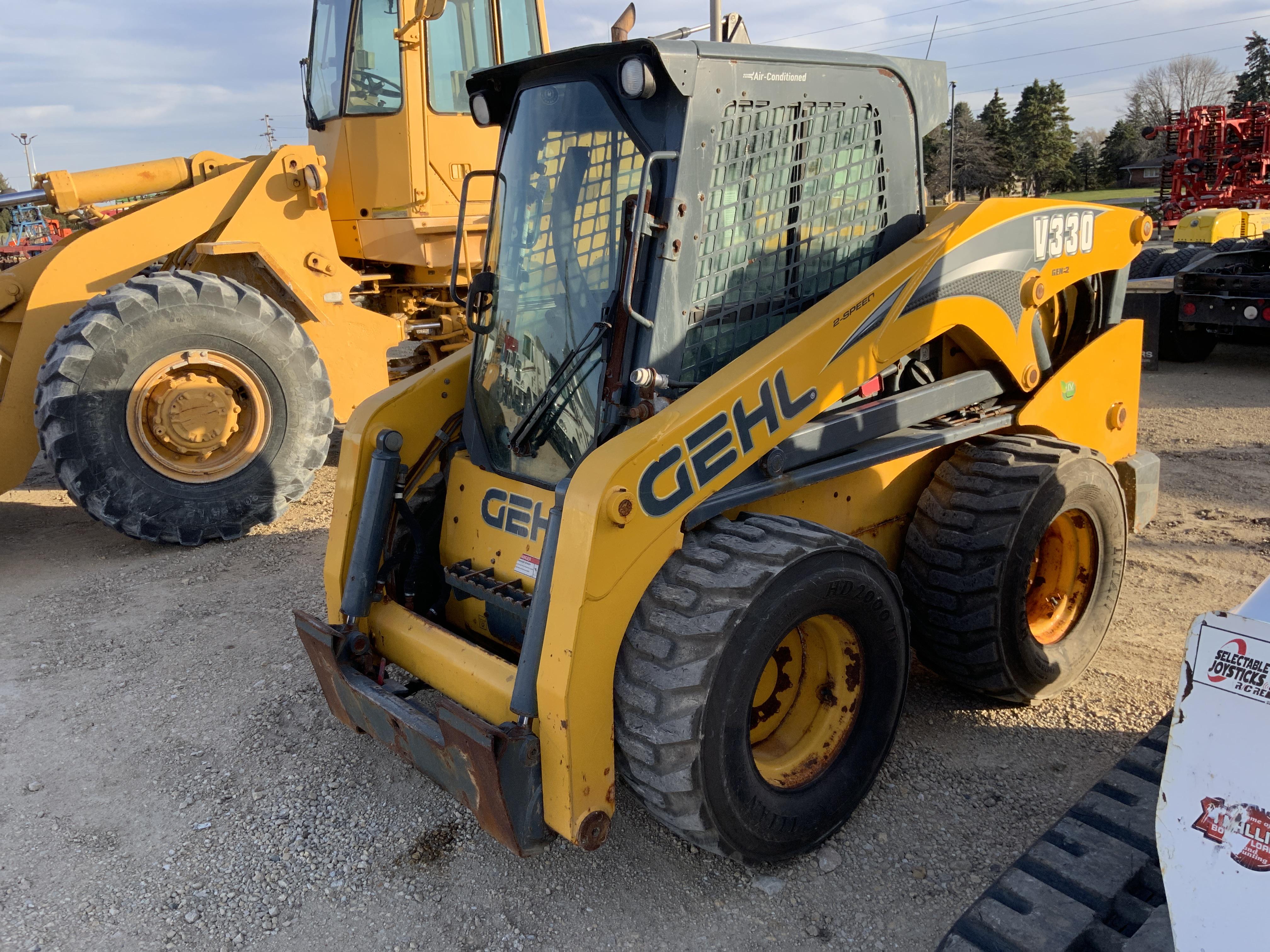

Gehl V330

Name: Gehl V330
Brand: Gehl

Gehl V330 — 120 hp skid-steer loader. Headline figure shown; full specifications are pending source verification.

The Gehl V330, part of the V Series series, is a skid-steer loader with a rated power of 120 hp, which puts it at the powerful end of its class. It entered production in 2024. It runs a hydrostatic transmission. It has a listed operating weight of 4090kg, and it suits operations of compact / mixed farm, with Loading, Yard and Materials handling work in mind. Full UK and US specifications are listed below, each with its source.

Rated power

120 hp

Top speed

13.0 km/h

Weight

4090kg

Catalogue coverage

Variants represented

Richest spec table

20 rows

Recorded power

120 hp

Production years

2024

Verified variants

2 linked source documents displayed

Hover a source tag to verify

Engine

Rated power89 kW (120 hp)OEM

Emissions stageStage VEPA cert

Engine make/modelYanmar 4TNV98TOEM

Displacement3.32LOEM

CylindersFourOEM

Capacities

Fuel tank92.7LOEM

Rear lift capacity1497kgOEM

Tipping load2995kgOEM

Dimensions

Length3010mmOEM

Width1830mmOEM

Height2085mmOEM

Weight4090kgOEM

Wheelbase1265mmOEM

Lift height3330mmOEM

Dump height2515mmOEM

Transmission

Transmission typeServo-controlled hydrostatic driveOEM

Performance

Top speed13.0 km/hOEM

Top speed (High)19.6 km/hOEM

PTO & Hydraulics

Hydraulic flow82.3 lpmOEM

Hydraulic flow (High Flow)137.4 lpmOEM

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
