Tractor · 1948Unverified

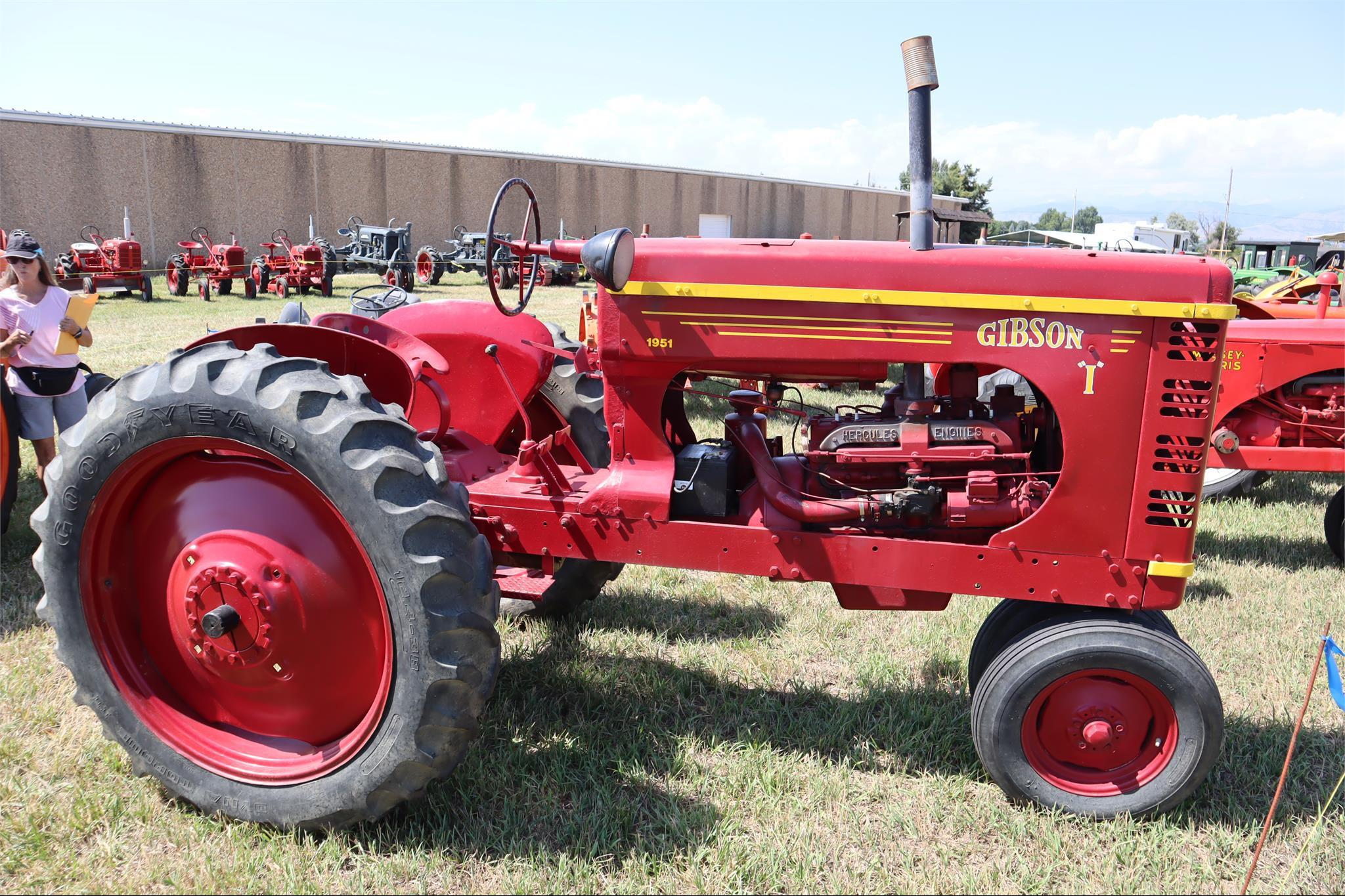

Gibson E
Gibson E — Row-Crop tractor · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Hover a source tag to verify
Overview
ManufacturerGibsonReference
Row-Crop tractorReference
Built in Longmont, Colorado, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
Etricycle frontReference
EWadjustable rear axleReference
EFwide frontReference
EWFwide treadReference
Engine
Wisconsin 0.9L 2-cyl gasolineReference
Engine8.9 kWReference
Plows2 (10-inch)Reference
WisconsinReference
gasolineReference
2-cylinderReference
air-cooled inlineReference
Displacement0.9 LReference
Bore/Stroke83 x 83 mmReference
Power8.9 kWReference
Air cleaneroil bathReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchidler pulleyReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase165 cmReference
Front tire4.00-12Reference
Rear tire7-00-24Reference
Ag front4.00-12Reference
Ag rear7-00-24Reference
Ag rear8.00-24Reference
Ag rear9.00-24Reference
Height (hood)142 cmReference
Ground clearance55 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
