Tractor · 1922Unverified

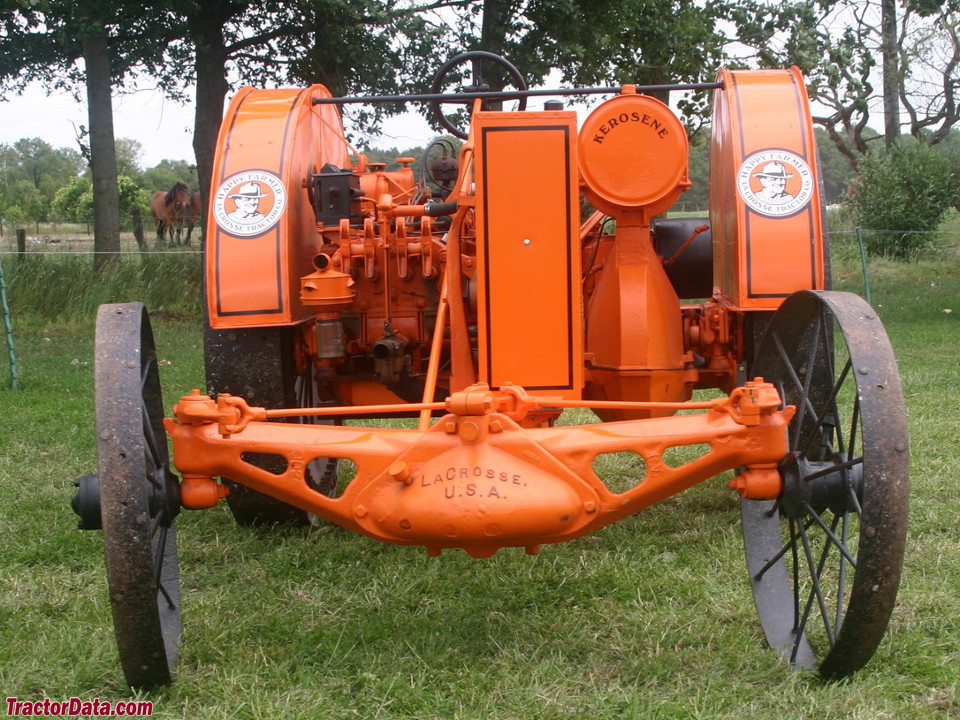

Happy Farmer H 12-24

Name: Happy Farmer H 12-24
Brand: Happy Farmer

Happy Farmer H 12-24 · 12 hp. Reference specifications; pending source verification.

The Happy Farmer H 12-24 is a tractor with a rating of approximately 12 horsepower, positioning it at the lower end of its class in terms of power output. It was manufactured between 1922 and 1923. This tractor is equipped with a 2-cylinder liquid-cooled engine and a two-wheel drive system featuring a 1-speed gearbox. Its operating weight is listed at 1723 kg, with a maximum operational area of 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

12 hp

Weight

1723 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

12 hp

Recorded weight

1723 kg

Transmissions

1-speed gear

Production years

1922-1923

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHappy Farmer (a part of La Crosse Tractor)Reference

Built in La Crosse, Wisconsin, USAReference

Two-wheel driveReference

SteeringmanualReference

Open operator station.Reference

Engine

La Crosse 6.5L 2-cyl keroseneReference

Drawbar (claimed)8.9 kWReference

Belt (claimed)17.9 kWReference

Plows3 (14-inch)Reference

La CrosseReference

keroseneReference

2-cylinderReference

liquid-cooledReference

Displacement6.5 LReference

Bore/Stroke152 x 178 mmReference

Fuel systemcarburetorReference

Rated RPM900Reference

Coolant capacity34.1 LReference

Transmission

1-speed gearReference

TypegearReference

Gears1 forward and reverseReference

Dimensions

Weight1723 kgReference

Rear tire56x10Reference

Ag rear56x10 steelReference

Length342 cmReference

Width209 cmReference

Height157 cmReference

Capacities

Diameter27 cmReference

Width19 cmReference

RPM900Reference

Speed792.48 meters/minReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
