Tractor · 1918Unverified

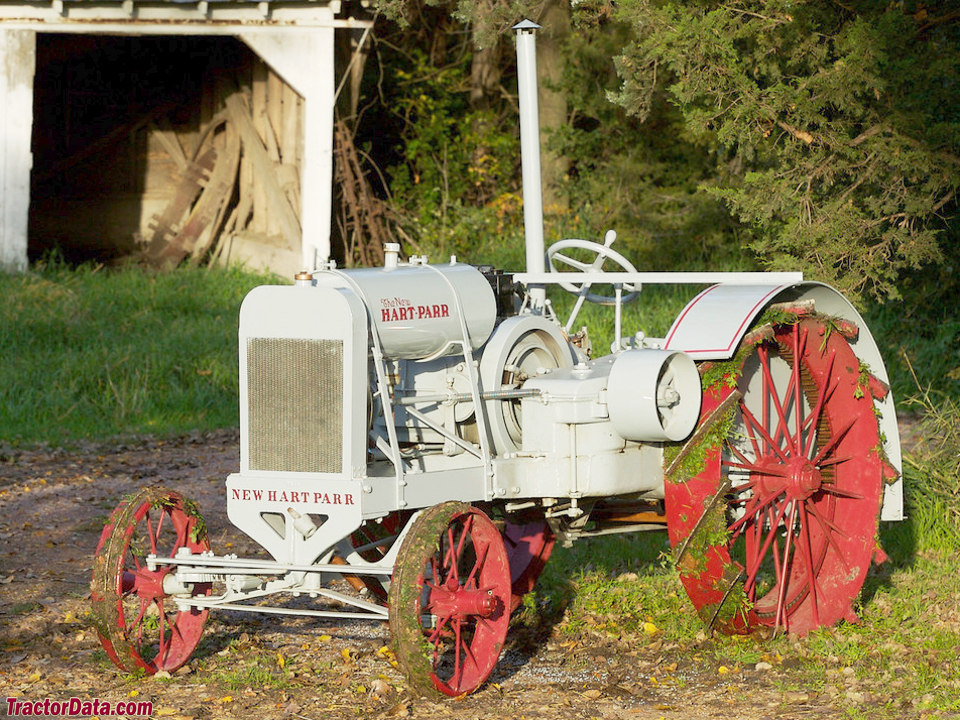

Hart-Parr New Hart-Parr
Hart-Parr New Hart-Parr — Standard-tread tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
2339 kg
Hover a source tag to verify
Overview
ManufacturerHart-ParrReference
Standard-tread tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Open operator station.Reference
Engine
Hart-Parr 7.6L 2-cyl gasolineReference
Drawbar (claimed)11.2 kWReference
Belt (claimed)22.4 kWReference
Plows3Reference
Hart-ParrReference
gasolineReference
2-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke165 x 178 mmReference
Rated RPM750Reference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2339 kgReference
Front tire28x5Reference
Rear tire52x10Reference
Ag front28x5 (steel)Reference
Ag rear52x10 (steel)Reference
Length350 cmReference
Width190 cmReference
Height152 cmReference
New Hart-Parr Serial Numbers
19188401Reference
19199383Reference
Final11499Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
