Tractor · 1916Unverified

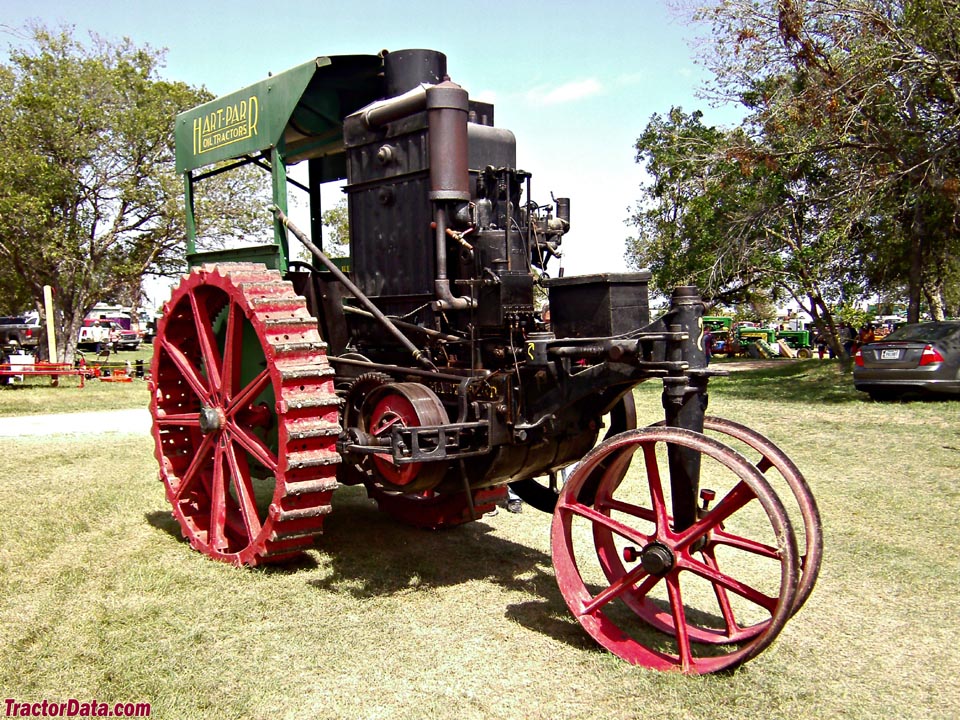

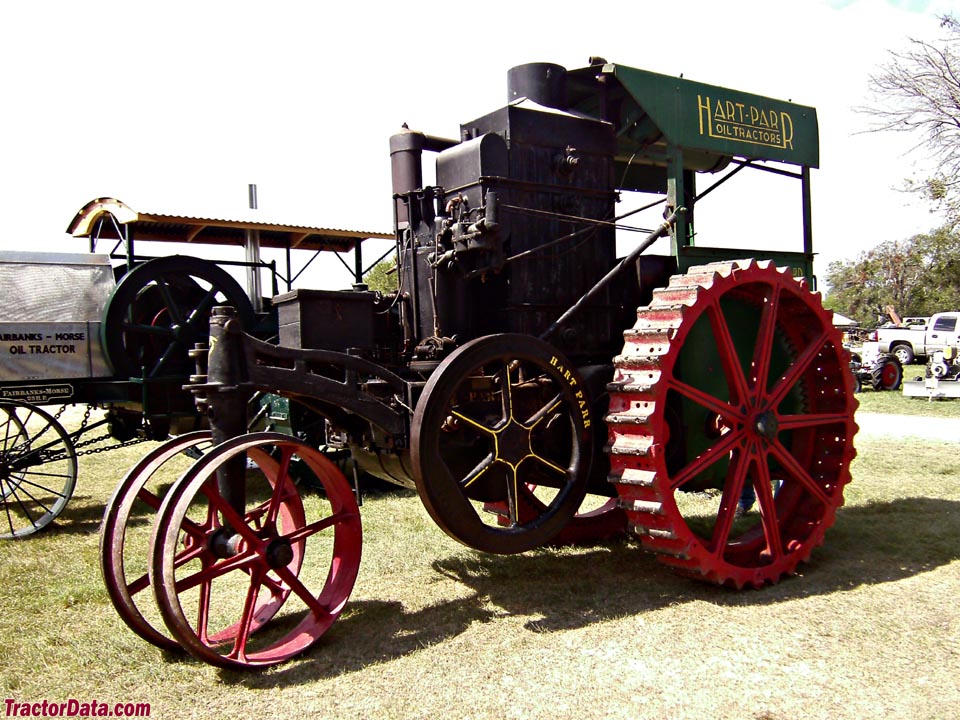

Hart-Parr Oil King 23-35
Hart-Parr Oil King 23-35 · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
5443 kg
Hover a source tag to verify
Overview
ManufacturerHart-ParrReference
Built in Charles City, IowaReference
Two-wheel driveReference
Open sided steel canopy.Reference
Engine
Hart-Parr 12.9L 1-cyl keroseneReference
Fuel tank113.6 LReference
Drawbar (claimed)17.2 kWReference
Belt (claimed)26.1 kWReference
Hart-ParrReference
keroseneReference
1-cylinderReference
liquid-cooledReference
Displacement12.9 LReference
Bore/Stroke254 x 254 mmReference
Rated RPM500Reference
Coolant capacity113.6 LReference
Transmission
2-speedReference
TransmissiongearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight5443 kgReference
Length273 cmReference
Width182 cmReference
Height317 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
