Tractor · 1916Unverified

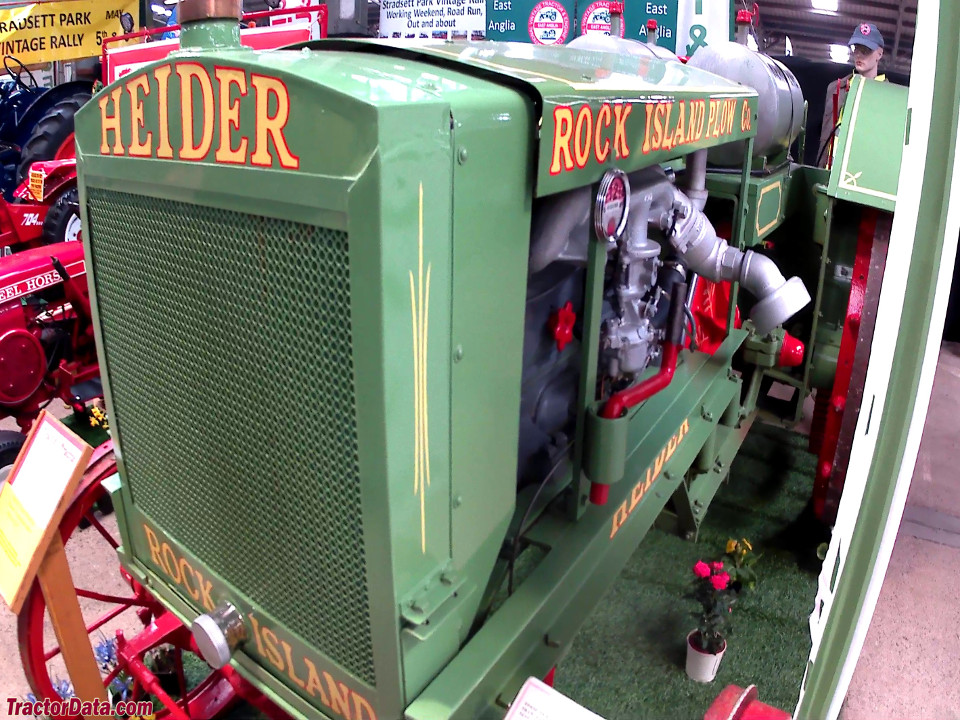

Heider D 9-16

Name: Heider D 9-16
Brand: Heider

Heider D 9-16 — Standard-tread tractor · 9 hp. Reference specifications; pending source verification.

The Heider D 9-16 is a tractor model with a rated power output of 9 hp, categorising it within the lighter end of its class. This model was manufactured from 1916 to 1929. It is equipped with a 4-cylinder liquid-cooled engine and features two-wheel drive with a 7-speed gearbox. The Heider D 9-16 has an operating weight of 1814 kg and is suited for operations on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

9 hp

Weight

1814 kg

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

9 hp

Recorded weight

1814 kg

Transmissions

7-speed friction drive

Production years

1916-1929

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHeider (a part of Rock Island)Reference

Standard-tread tractorReference

Built in Rock Island, Illinois, USAReference

Two-wheel driveReference

SteeringmanualReference

Four-post canopy.Reference

Engine

Waukesha 5.3L 4-cyl keroseneReference

Fuel tank79.5 LReference

Drawbar (claimed)6.7 kWReference

Belt (claimed)11.9 kWReference

Plows2Reference

Belt (tested)14.6 kWReference

WaukeshaReference

keroseneReference

4-cylinderReference

liquid-cooledReference

Displacement5.3 LReference

Bore/Stroke108 x 146 mmReference

Rated RPM1000Reference

Coolant capacity34.1 LReference

Belt power (max)14.6 kWReference

Transmission

7-speed friction driveReference

Typefriction driveReference

Gears7 forward and reverseReference

PTO & Hydraulics

TypeHeider Plow LiftReference

Dimensions

Wheelbase220 cmReference

Weight1814 kgReference

Length325 cmReference

Width172 cmReference

Height157 cmReference

Links

Heider D: information at RIPC siteReference

Test results

Kerosene 2WDJune 1 - 9, 1920Link: Nebraska Tractor Test 17 fileReference

Belt fuel use (max)14.8 l/hourReference

Drawbar performanceReference

Fuel use0.2 kWh/lReference

Gear 11.76 used for power test.Reference

Max pull861 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
