Tractor · 1985Unverified

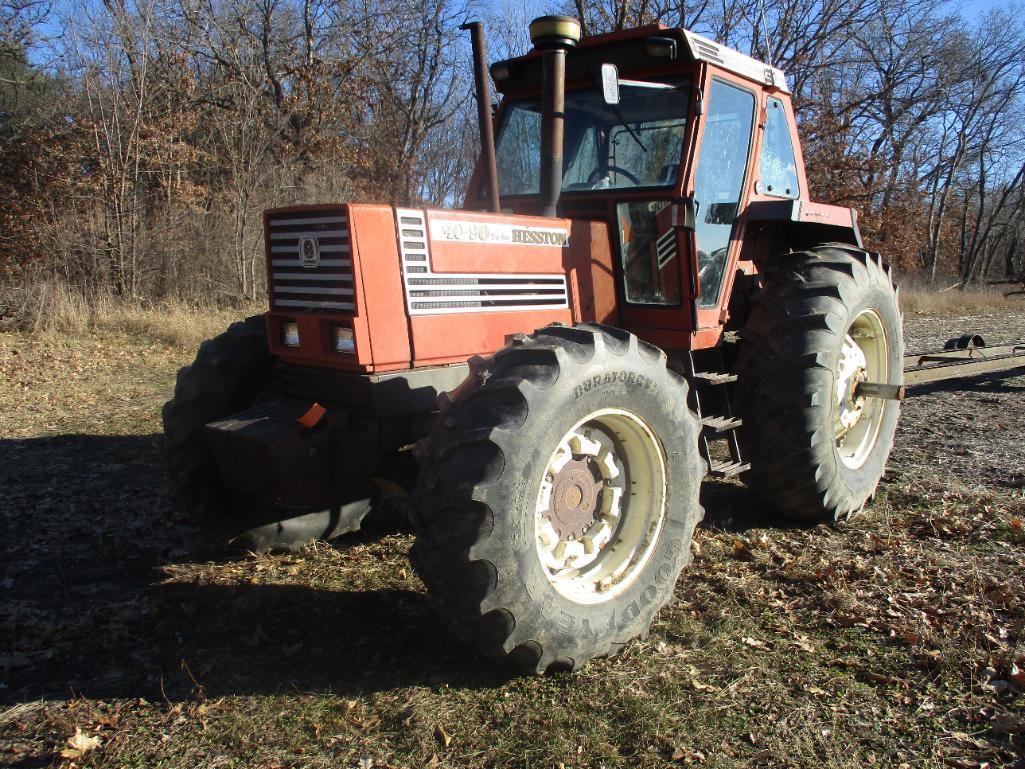

Hesston 140-90

Name: Hesston 140-90
Brand: Hesston

Hesston 140-90 — Row-Crop tractor · 123 hp. Reference specifications; pending source verification.

The Hesston 140-90 is a tractor model with a rating of approximately 123 horsepower, placing it at the higher end of its class. This model was in production from 1985 to 1991. It features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. The operating weight of the Hesston 140-90 ranges from 12015 to 14565 pounds, and it is suitable for operations spanning 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

123 hp

Max power

78.7 kW

Weight

12015 to 14565 pounds

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

123 hp

Transmissions

16-speed synchronized

Production years

1985-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorHesstonReference

ManufacturerFiatReference

Row-Crop tractorReference

Original price was $55,500 in 1990Reference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Supercomfort cab standard with air conditioningReference

Variants

140-902WDReference

140-90DT4WDReference

Engine

Fiat 5.9L 6-cyl dieselReference

Fuel tank280.1 LReference

Drawbar (tested)78.7 kWReference

Fiat 8065.25Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke104 x 115 mmReference

Compression16.5:1Reference

Rated RPM2500Reference

Starter volts12Reference

Power at rated engine speed92.0 kWReference

Max power78.7 kWReference

Transmission

16-speed synchronizedReference

24-speed creeperReference

16-speed partial power shiftReference

TypesynchronizedReference

Gears16 forward and reverseReference

TypecreeperReference

Gears24 forward and 8 reverseReference

Typepartial power shiftReference

Four power-shift gears in four ranges.Reference

PTO & Hydraulics

PTO (claimed)91.7 kWReference

PTO (tested)92.0 kWReference

Pressure168.9 barReference

Valves3Reference

Pump flow50.7 lpmReference

Rear TypeIIReference

Rear TypeII/IIIReference

Rear lift4422 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed91.6 kWReference

Dimensions

2WD Wheelbase274 cmReference

4WD Wheelbase267 cmReference

Weight12015 to 14565 poundsReference

Front tire11.00-16Reference

Rear tire18.4-38Reference

2WD Ag front11.00-16Reference

4WD Ag front14.9-28Reference

Ag rear18.4-38Reference

2WD Length413 cmReference

4WD Length418 cmReference

2WD Shipping5450 kgReference

4WD Shipping6050 kgReference

4WD Operating6606 kgReference

Ballasted7450 kgReference

Electrical

Charging systemalternatorReference

Charging amps65Reference

Hesston 140-90 Height

2WD Hood179 cmReference

4WD Hood179 cmReference

Cab284 cmReference

Test results

Diesel 16-speed synchro 4WDAugust 29 - September 7, 1984Link: Nebraska Tractor Test 1533 fileReference

PTO performanceReference

Fuel use27.6 l/hourReference

Fuel use27.3 l/hourReference

Drawbar performanceReference

Max pull5754 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
