Tractor · 1981Unverified

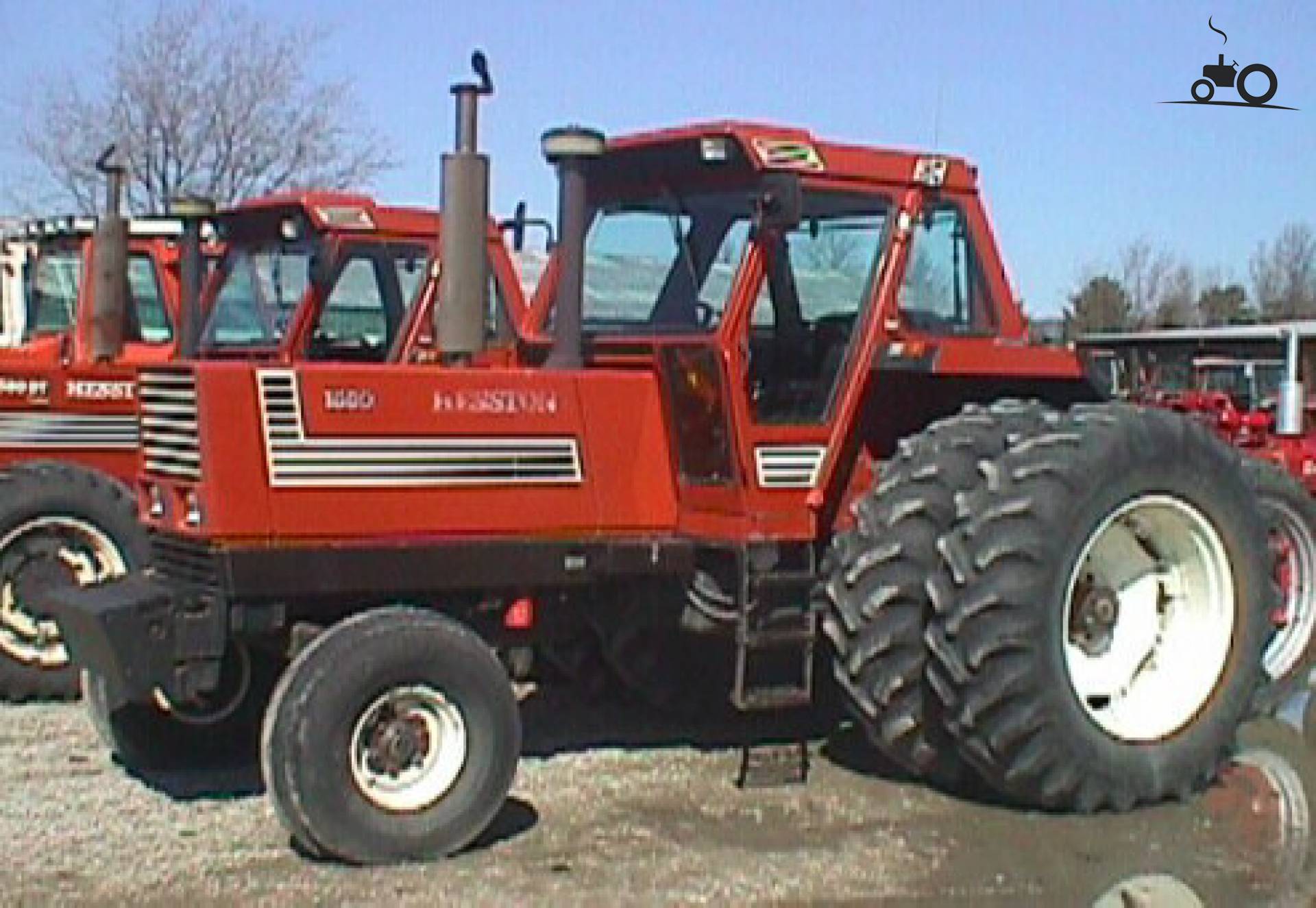

Hesston 1880
Hesston 1880 — 80 Series · 162 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
162 hp
Max power
101.8 kW
Weight
13448 to 16990 pounds
Hover a source tag to verify
Overview
ManufacturerHesston (a part of Fiat)Reference
Row-Crop tractorReference
Original price$57,125 (1990)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Supercomfort cab standard with air conditioningReference
Variants
1880DT4WDReference
Engine
Fiat 8.1L 6-cyl dieselReference
Fuel tank280.1 LReference
Drawbar (tested)101.8 kWReference
Fiat 8365-25Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.1 LReference
Bore/Stroke115 x 130 mmReference
Compression15.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed121.2 kWReference
Max power101.8 kWReference
Transmission
12-speedReference
24-speedReference
Gears12 forward and 4 reverseReference
Gears24 forward and 8 reverseReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)121.2 kWReference
Pressure168.9 barReference
Valves3Reference
Pump flow55.6 lpmReference
Rear TypeIIReference
Rear TypeIIIN optionalReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed119.2 kWReference
Dimensions
Wheelbase296 cmReference
Wheelbase288 cmReference
Weight13448 to 16990 poundsReference
Front tire11.00-16Reference
Rear tire20.8-38Reference
Ag front11.00-16 (2WD)Reference
Ag front16.9-28 (4WD)Reference
Ag rear20.8-38Reference
Length436 cmReference
Length450 cmReference
Operating6100 kgReference
Operating7706 kgReference
Ballasted8940 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Hesston 1880 Height
Hood183 cmReference
Hood182 cmReference
Cab293 cmReference
Test results
Diesel 12-speed 4WDSeptember 29 - October 6, 1981Link: Nebraska Tractor Test 1410 fileReference
PTO performanceReference
Fuel use36.3 l/hourReference
Fuel use34.8 l/hourReference
Drawbar performanceReference
Fuel use35.6 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
