Tractor · 1990Unverified

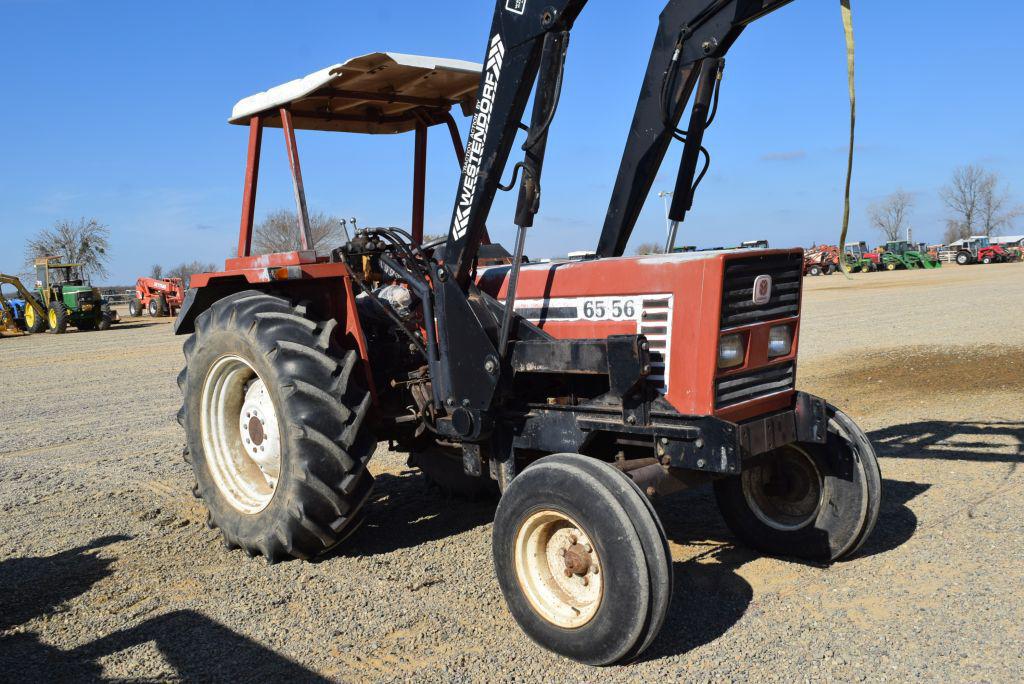

Hesston 65-56

Name: Hesston 65-56
Brand: Hesston

Hesston 65-56 — 56 Series · 60 hp. Reference specifications; pending source verification.

The Hesston 65-56 is a tractor with a rated output of 60 hp, making it a compact option within its class. It was produced in 1990. The 65-56 features a 4-cylinder diesel liquid-cooled engine, driving a four-wheel drive system with an 8-speed gearbox. The listed operating weight is between 4900 and 5720 pounds, and it is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

4900 to 5720 pounds

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

60 hp

Transmissions

8-speed partially synchronized

Production years

1990-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorHesstonReference

ManufacturerFiatReference

Utility tractorReference

Original price was $21,000 in 1990Reference

Two- or four-wheel driveReference

ROPS with canopy.Reference

Variants

65-56DT4WDReference

Engine

Fiat 3.6L 4-cyl dieselReference

Engine48.5 kWReference

Fiat 8045.06Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke100 x 115 mmReference

Power48.5 kWReference

Fuel systemdirect injectionReference

Compression17:1Reference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed partially synchronizedReference

12-speed partially synchronizedReference

Typepartially synchronizedReference

Gears8 forward and 2 reverseReference

Four gears (1-4), plus reverse (R), in two ranges (I/II)Reference

Gears12 forward and 3 reverseReference

Four gears (1-4), plus reverse (R), in three ranges (I, II, and III).Reference

PTO & Hydraulics

PTO (claimed)44.7 kWReference

Rear TypeI/IIReference

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

2WD Wheelbase216 cmReference

4WD Wheelbase212 cmReference

Weight4900 to 5720 poundsReference

Front tire7.50-16Reference

2WD Rear tire14.9-30Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-30Reference

4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-30Reference

2WD Length343 cmReference

4WD Length352 cmReference

4WD Ground clearance34 cmReference

2WD Ground clearance53 cmReference

2WD Front tread139 to 199 cmReference

4WD Front tread144 to 187 cmReference

Rear tread131 to 191 cmReference

2222 kgReference

Operating2594 kgReference

Ballasted3333 kgReference

Steering wheel149 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Hesston 65-56 Height

2WD Hood147 cmReference

4WD Hood144 cmReference

2WD ROPS231 cmReference

4WD ROPS231 cmReference

2WD Exhaust238 cmReference

4WD Exhaust237 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
