Tractor · 1985Unverified

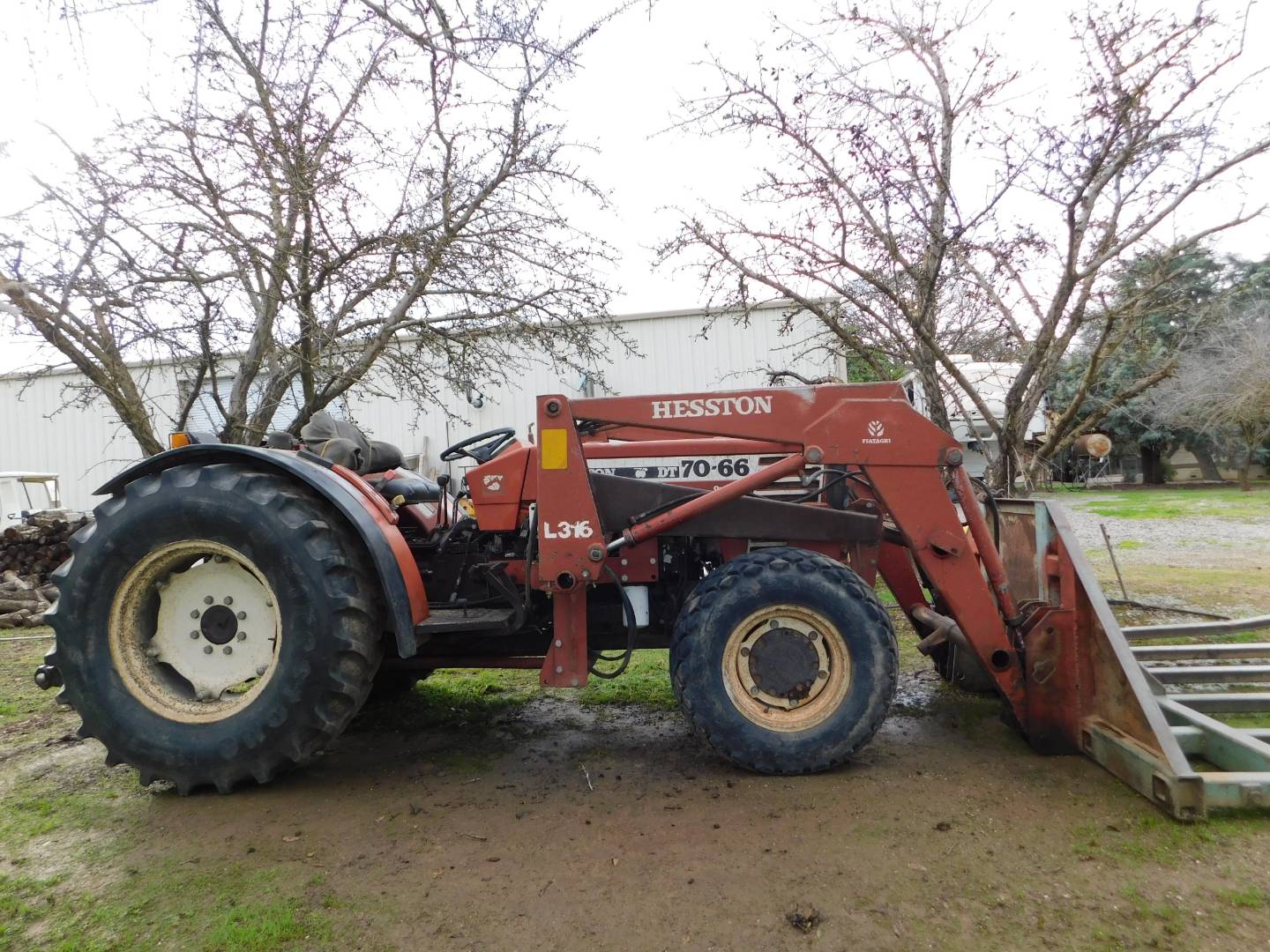

Hesston 70-66 High Clearance

Name: Hesston 70-66 High Clearance
Brand: Hesston

Hesston 70-66 High Clearance — 66 Series · 62 hp. Reference specifications; pending source verification.

The Hesston 70-66 High Clearance tractor model has a rated power output of 62 hp, positioning it at the lower end of its class in terms of power. It was manufactured from 1985 to 1991 and features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 12-speed gearbox. The tractor's operating weight ranges from 5689 to 7290 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

62 hp

Weight

5689 to 7290 pounds

Catalogue coverage

Variants represented

Richest spec table

68 rows

Recorded power

62 hp

Recorded weight

2580 kg

Transmissions

12-speed syncromesh

Production years

1985-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorHesstonReference

ManufacturerFiatReference

High-Clearance tractorReference

Two- or four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Four-post ROPS with optional canopy.Reference

Variants

70-66utility 2WD[6073]Reference

70-66DTutility 4WD[6073]Reference

70-66ORorchard 2WD[10189]Reference

70-66ORDTorchard 4WD[10189]Reference

70-66HChigh-cropReference

70-66HCDThigh-crop 4WDReference

Engine

Fiat 3.6L 4-cyl dieselReference

Fuel tank72.7 LReference

Fiat 8045.06Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke100 x 115 mmReference

Fuel systemdirect injectionReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed syncromeshReference

20-speed creeperReference

TypesyncromeshReference

Gears12 forward and 4 reverseReference

Clutch279.4mm dry discReference

Four synchronized gears (1-4) in three ranges (I, II, III) plus reverse range.Reference

TypecreeperReference

Gears20 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

Typeopen centerReference

Pressure186.2 barReference

Valves2Reference

Pump flow41.6 lpmReference

Rear TypeIIReference

Controlposition and lower-link draft controlReference

Rear PTOindependentReference

Rear PTO Type540/ground (1.375)Reference

Dimensions

2WD Wheelbase210 cmReference

4WD Wheelbase204 cmReference

Weight5689 to 7290 poundsReference

Front tire7.50-18Reference

Rear tire9.5-42Reference

2WD Ag front7.50-18Reference

4WD Ag front13.6-38Reference

2WD Ag rear9.5-42Reference

4WD Ag rear13.6-38Reference

4WD Ag front12.4-38Reference

2WD Ag rear12.4-38Reference

4WD Ag rear12.4-38Reference

2WD Shipping weight2580 kgReference

4WD Shipping weight3306 kgReference

2WD Clearance (front axle)80 cmReference

4WD Clearance (front axle)62 cmReference

2WD Clearance (drawbar)63 cmReference

4WD Clearance (drawbar)65 cmReference

2WD Front tread152 to 223 cmReference

4WD Front tread167/177/182/193/203/208/218 cmReference

2WD Rear tread152 to 193 cmReference

4WD Rear tread142/152/157/160/172/177/187 cmReference

Electrical

Charging systemalternatorReference

Charging amps33Reference

Battery volts12Reference

Speeds

With 13.6-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
