Tractor · 1983Unverified

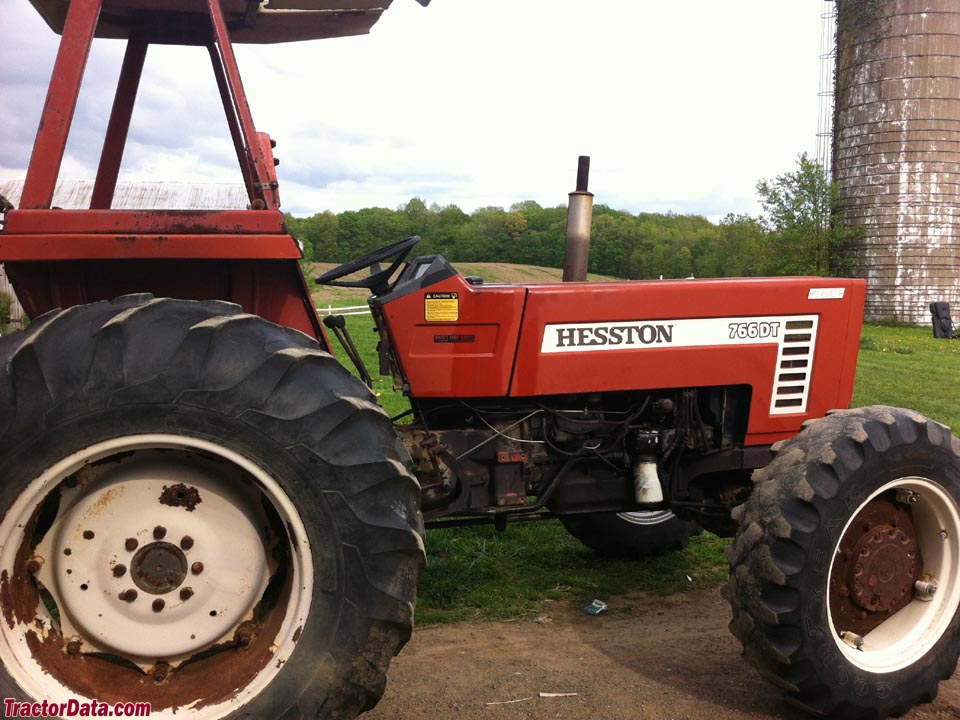

Hesston 766

Hesston 766 — Utility tractor · 70 hp. Reference specifications; pending source verification.

The Hesston 766 is a tractor with a rated power output of 70 hp, a mid-range figure for its class. It was produced from 1983 to 1984. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine and a mechanical front-wheel drive system paired with a 12-speed gearbox. Its listed operating weight is 2630 kg and it is suited to operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
70 hp
Weight
2630 kg

Catalogue coverage

Variants represented
2
Richest spec table
34 rows
Recorded power
70 hp
Recorded weight
2630 kg
Transmissions
12-speed
Production years
1983-1984
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHesston (a part of Fiat)Reference
Utility tractorReference
Built in Modena, ItalyReference
Original price$22,650 (1984)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (766DT)Reference
Four-post ROPS standard. Optional canopy.Reference

Variants

766DT4WDReference
766HChigh-cropReference

Engine

Fiat 3.7L 4-cyl dieselReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Bore/Stroke103 x 110 mmReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference

Transmission

12-speedReference
Gears12 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)52.2 kWReference
Typeopen centerReference
Valves1Reference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference

Dimensions

Weight2630 kgReference
Front tire7.50-18Reference
Rear tire18.4-30Reference
Ag front7.50-18Reference
Ag rear18.4-30Reference

Electrical

GroundnegativeReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
