Lawn Tractor · 1972Unverified

Hesston H-160 TT Turf Truck

Name: Hesston H-160 TT Turf Truck
Brand: Hesston

Hesston H-160 TT Turf Truck — Front Runner Series · 16 hp. Reference specifications; pending source verification.

The Hesston H-160 TT Turf Truck is a lawn tractor model with a rating of approximately 16 hp, a mid-range figure for its class. It was produced from 1972 to 1976 and features a 1-cylinder petrol air-cooled engine, two-wheel drive and a hydrostatic transmission. The H-160 TT Turf Truck has a listed operating weight of 567 kg and is designed for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

567 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

16 hp

Recorded weight

567 kg

Transmissions

hydrostatic

Production years

1972-1976

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHesstonReference

Garden tractorReference

Built in Indianapolis, Indiana, USAReference

Two-wheel driveReference

Steeringmanual articulatedReference

Steeringarticulated powerReference

Mechanical drum brakesReference

Variants

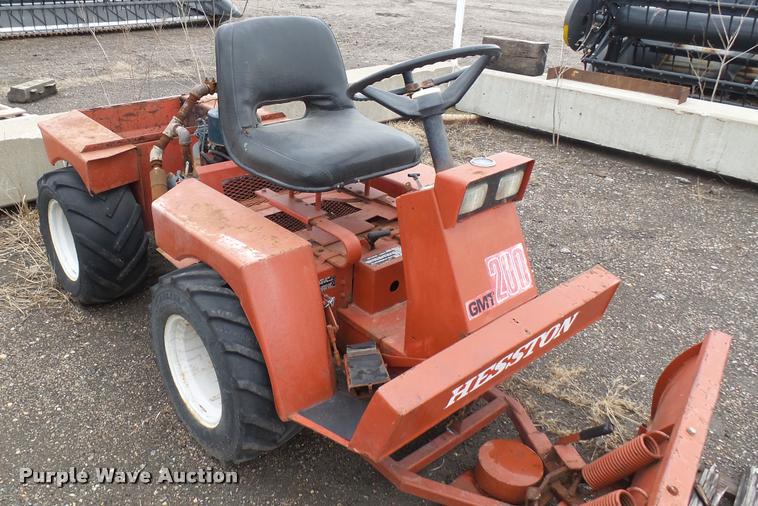

GMTgrounds maintenance tractorReference

TWthree-wheelerReference

TTturf truckReference

Engine

16HP Briggs & Stratton 531cc 1-cyl gasolineReference

Fuel tank15.1 LReference

Briggs & Stratton 326431Reference

gasolineReference

1-cylinderReference

air-cooled horizontal-shaftReference

Displacement32.4 ciReference

Bore/Stroke90 x 83 mmReference

Power11.9 kWReference

StarterelectricReference

Starter volts12Reference

Oil capacity1.9 LReference

Transmission

hydrostaticReference

TransmissionSundstrandReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Front PTOindependentReference

Clutchmechanical discReference

Dimensions

Wheelbase165 cmReference

Weight567 kgReference

Front tire23x10.50-12Reference

Rear tire23x10.50-12Reference

Lawn/turf front23x10.50-12Reference

Lawn/turf rear23x10.50-12Reference

Length316 cmReference

Width147 cmReference

Height (steering wheel)117 cmReference

Ground clearance10 cmReference

Front tread85 cmReference

Rear tread107 cmReference

Hesston H-160 TT attachments

60" FM305-mount mower deckReference

80" front-mount mower deckReference

Electrical

Charging systemgeneratorReference

Charging amps15Reference

Battery volts12Reference

Battery AH45Reference

Attachment overview

60" FM305-mount mower deckReference

80" front-mount mower deckReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
