Tractor · 1980Unverified

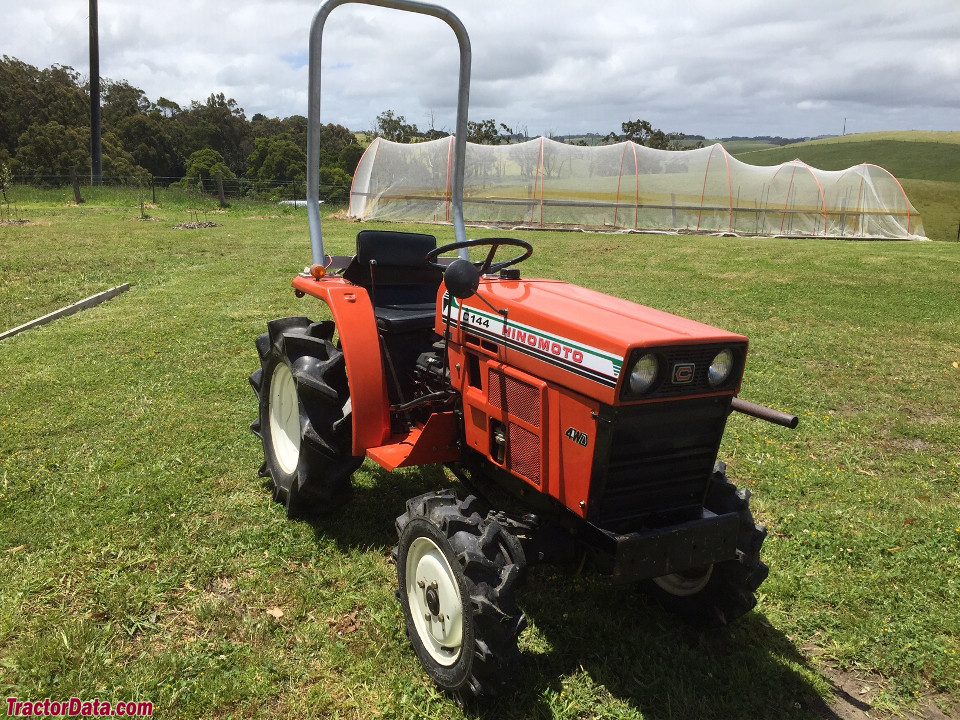

Hinomoto C144
Hinomoto C144 — Concord Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
668 kg
Hover a source tag to verify
Overview
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
C1422WDReference
C1444WDReference
Engine
Toyosha 0.9L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine (gross)12.7 kWReference
Toyosha CS86Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement0.9 LReference
Bore/Stroke70 x 75 mmReference
Power (gross)12.7 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.2 LReference
Coolant capacity3.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity17.0 LReference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIReference
Controlposition controlReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM571@2500Reference
Engine RPM833@2500Reference
Mid PTO TypepulleyReference
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase129 cmReference
Weight668 kgReference
Front tire5-12Reference
Rear tire8-16Reference
Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length210 cmReference
Width103 cmReference
Height (steering wheel)119 cmReference
Operating weight668 kgReference
Clearance (front axle)24 cmReference
Front tread88 cmReference
Rear tread83/96 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps13Reference
Battery volts12Reference
Speeds
With 8-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
