Tractor · 1980Unverified

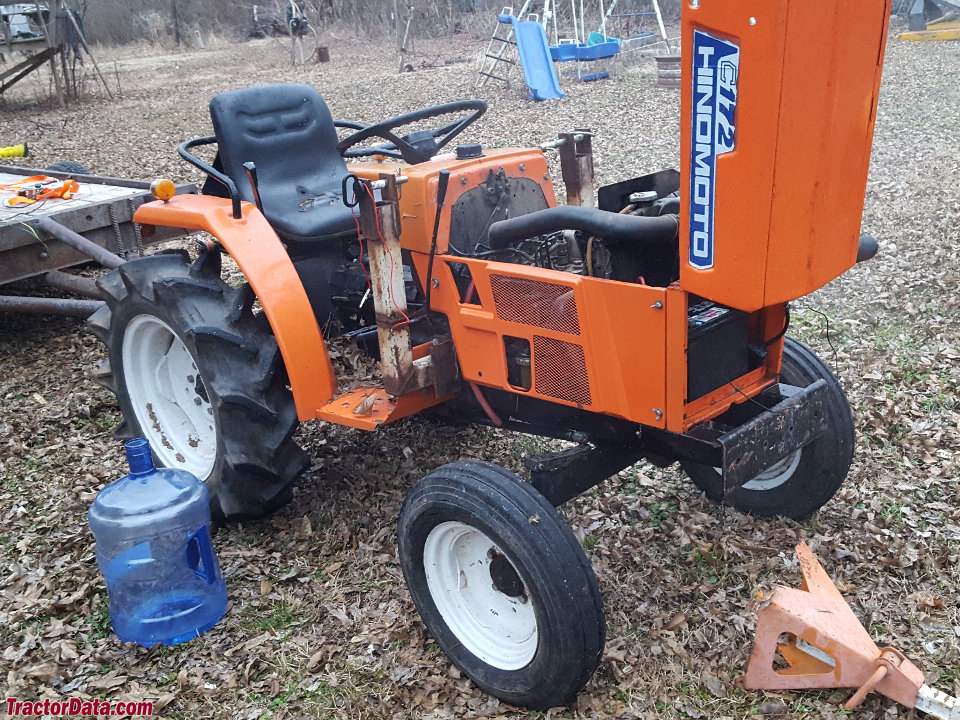

Hinomoto C172

Name: Hinomoto C172
Brand: Hinomoto

Hinomoto C172 — Concord Series · 20 hp. Reference specifications; pending source verification.

The Hinomoto C172 is a tractor boasting a rated power output of 20 hp, categorising it as a lighter model within its class. Manufactured between 1980 and 1985, the C172 features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 9-speed gearbox. Its listed operating weight is 580 kg, making it suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

580 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

20 hp

Recorded weight

580 kg

Transmissions

9-speed synchronized

Production years

1980-1985

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerHinomotoReference

Compact Utility tractorReference

Built in JapanReference

Two-wheel driveReference

Differential lockmechanical rearReference

Manual steeringReference

Drum brakesReference

Open operator station.Reference

Variants

C1722WDReference

C1744WDReference

Engine

Toyosha 1.0L 3-cyl dieselReference

Fuel tank14.0 LReference

Engine (gross)14.7 kWReference

Engine (net)13.3 kWReference

Toyosha CS100Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke73 x 80 mmReference

Power (net)13.3 kWReference

Power (gross)14.7 kWReference

Rated RPM2500Reference

Torque54.9 NmReference

Torque RPM1800Reference

StarterelectricReference

Starter volts12Reference

Starter power0.8 kWReference

Oil capacity2.2 LReference

Coolant capacity3.0 LReference

Transmission

9-speed synchronizedReference

TypesynchronizedReference

Gears9 forward and 3 reverseReference

Clutchdry discReference

Oil capacity17.0 LReference

PTO & Hydraulics

PTO (claimed)11.0 kWReference

Typeopen centerReference

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase129 cmReference

Weight580 kgReference

Front tire4-12Reference

Rear tire8-18Reference

Ag front4-12Reference

Ag rear8-18Reference

Lawn/turf front20.5x8.00-10Reference

Lawn/turf rear29x12.00-15Reference

Length210 cmReference

Width103 cmReference

Height (steering wheel)119 cmReference

Ground clearance28 cmReference

Electrical

GroundnegativeReference

Charging systemgeneratorReference

Charging amps12.5Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
